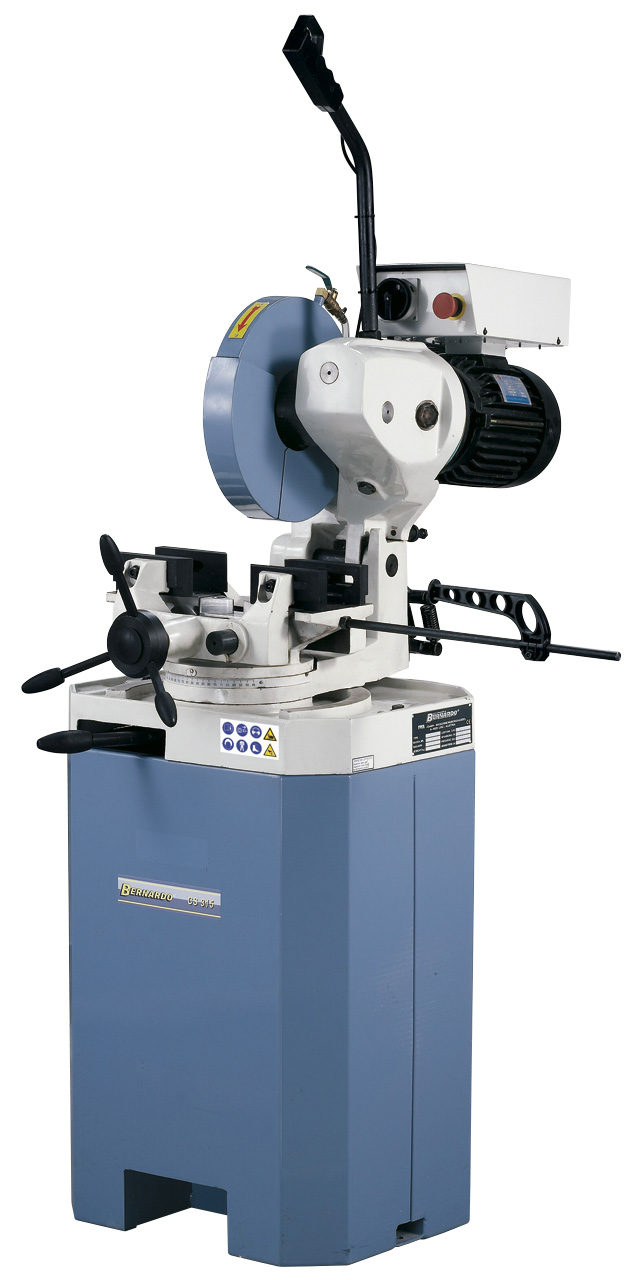

Bernardo CS 315 L 12" Industrial Chop Saw

The CS 315 L cold cut circular saw is ideal for metal workshops. Unbeatable in terms of price-to-performance ratio. The special vice guarantees precise, burr-free cutting.

  • Double vice with material fence, for mitre cutting up to 45°
  • Ideal for cutting of steel, light metals and plastics
  • Sawblade cover according to CE, closes automatically when lifting the saw arm
  • Ergonomic control handle with 24 V safety switch

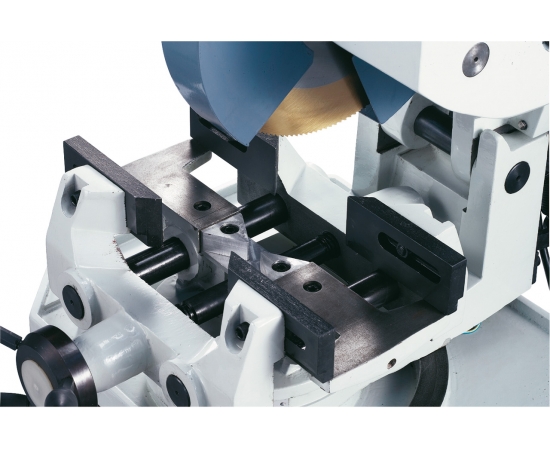

  • Precise cutting results due to the special vice which clamps workpiece on the right and left side of the sawblade
  • Includes titanium nitride coated sawblade
  • Low speed range of the sawblade is ideal for cutting stainless steel
  • Hardened and ground gears in oil bath
  • Coolant device is positioned inside the machine frame, requiring minimum space

Special Order

Cutting Capacity



Solid Material - Square

Solid Material - Round

90°

50 × 50 mm

55 mm

60°

40 × 40 mm

45 mm

45°

40 × 40 mm

45 mm





Hollow Material

Rectangular

Hollow Material

Square

Hollow Material

Round

90°

140 × 85 mm

95 × 95 mm

100 mm

60°

110 × 90 mm

90 × 90 mm

100 mm

45°

100 × 90 mm

90 × 90 mm

100 mm

Electrical
Volts
400 Volts
Phase
3 Phase
Motor Type
DC
Hertz
50 Hz
Watts (Input)
1800 Watts
Amps (Input)
4.5 Amps
Starting Amps Approx.
7.2 Amps
Horse Power (Input)
2.4 hp
Plug Fitted
No
NVR Switch
No
Emergency Stop
Yes
Chop Saw Specifications -
Blade Size (mm)
315
Bore (mm)
32
Cut Rectangle 90° (mm)
140 x 85
Cut Square 90° (mm)
95 x 95
Cut Round 90° (mm)
100
Cut Rectangle 45° (mm)
100 x 90
Cut Square 45° (mm)
90 x 90
Cut Round 45° (mm)
100
General
Warranty
12 Mths
Registration Required
No
Stand Included
Yes
Total Weight (Kgs)
210 Kgs
