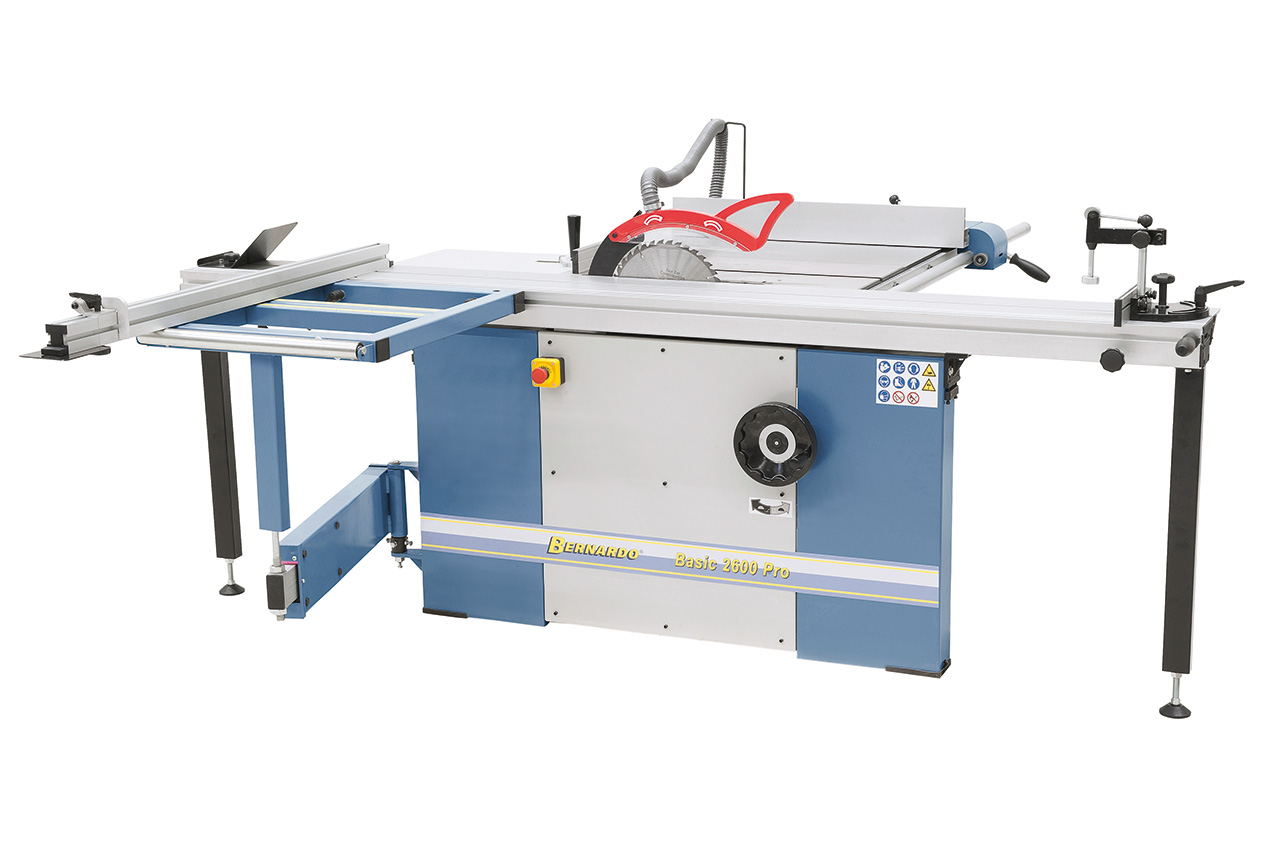

Bernardo Basic 2600 Pro Sliding Table Saw w/Scoring Blade - 400 V

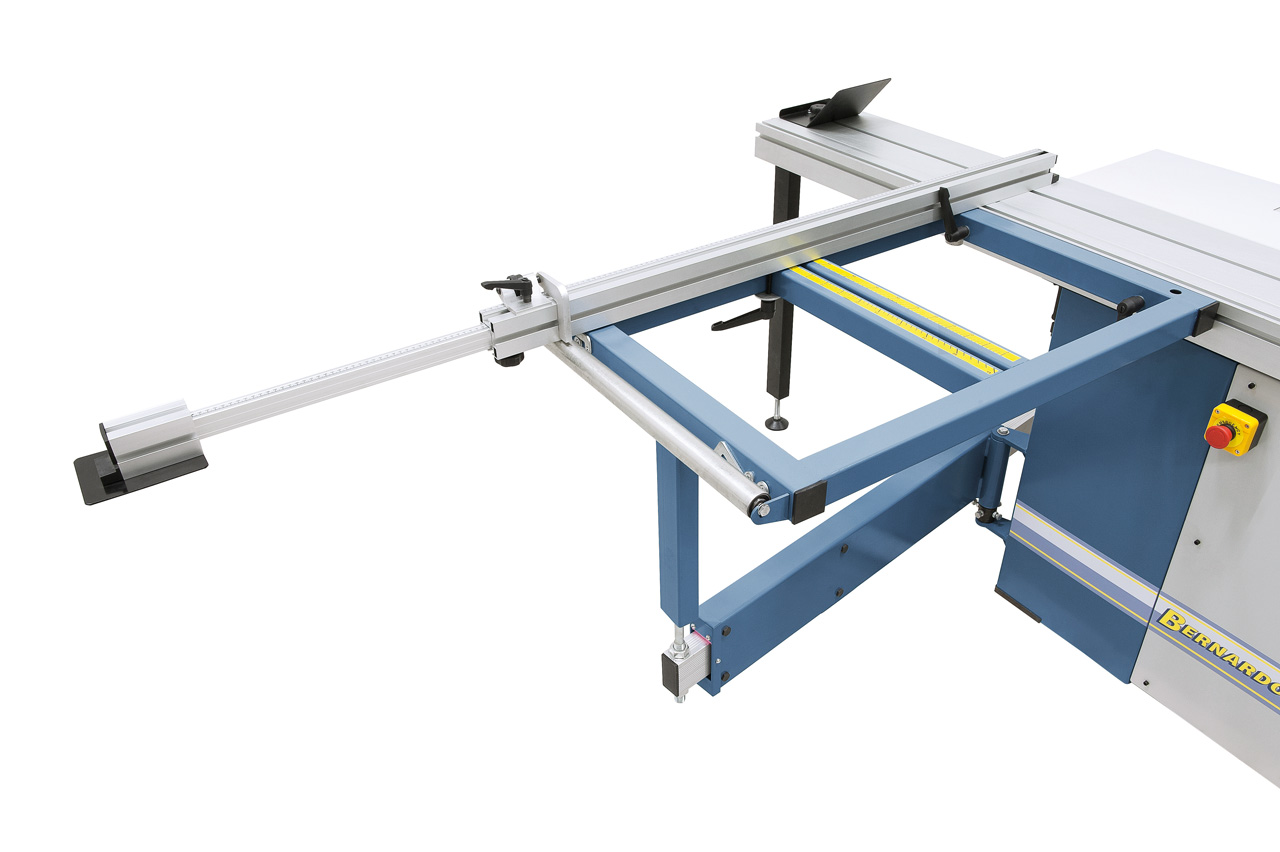

  • Stable outrigger table for processing large and heavy panels
  • An extendable telescopic fence (up to 2260 mm), can be mounted on the outrigger table at the front and rear
  • Come complete with a scoring unit to meet the high demands of professional users
  • A powerful drive motor ensures optimal cutting performance even during long periods of operation

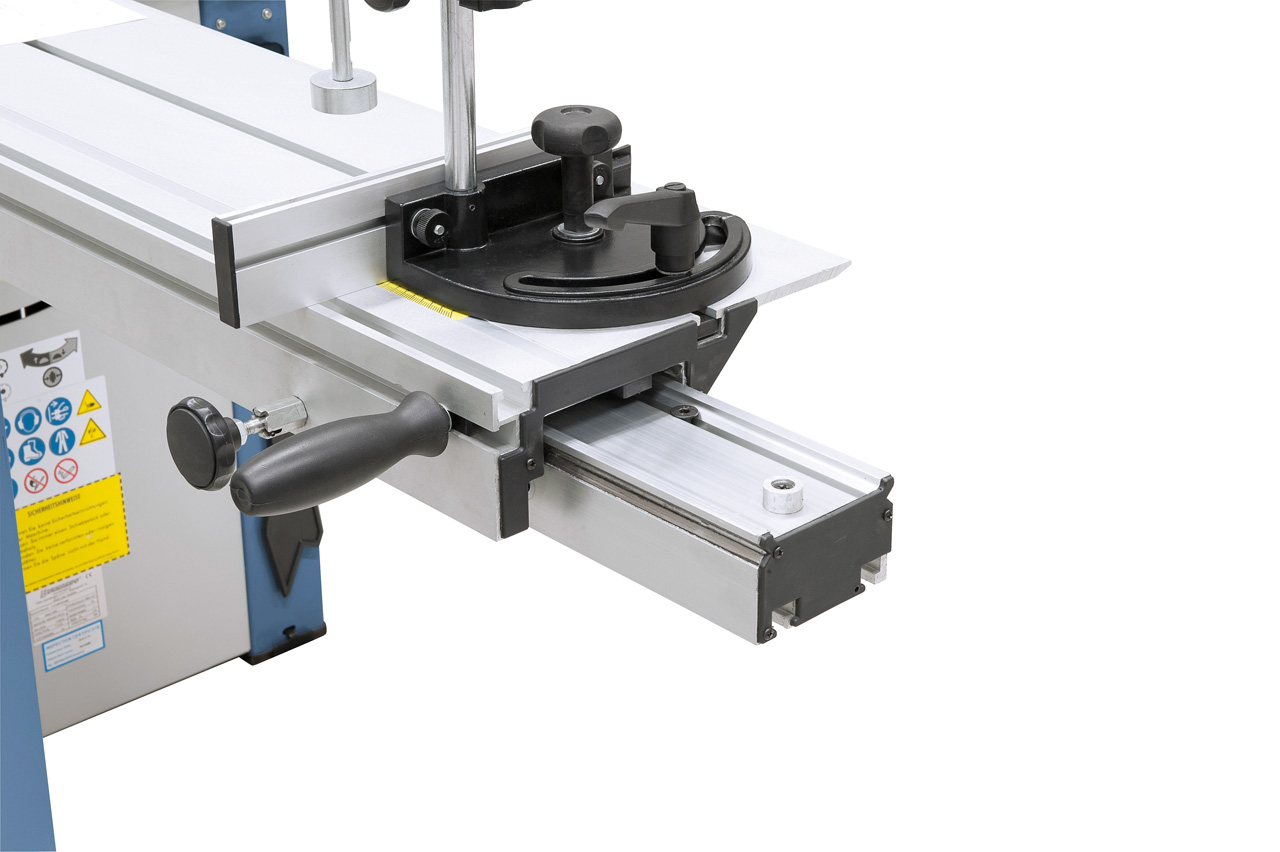

  • Mitre stop and hold-down device can be moved over the entire length of the slide
  • Equipped as standard with table widening and extension for placing larger sheets
  • Stable saw unit guarantees vibration-free and precise work
  • Aluminium format sliding carriage with hardened guide rails
  • Machine body consisting of a torsion-resistant combination of steel and cast iron
  • Large machine table made of grey cast iron, precisely machined and ground

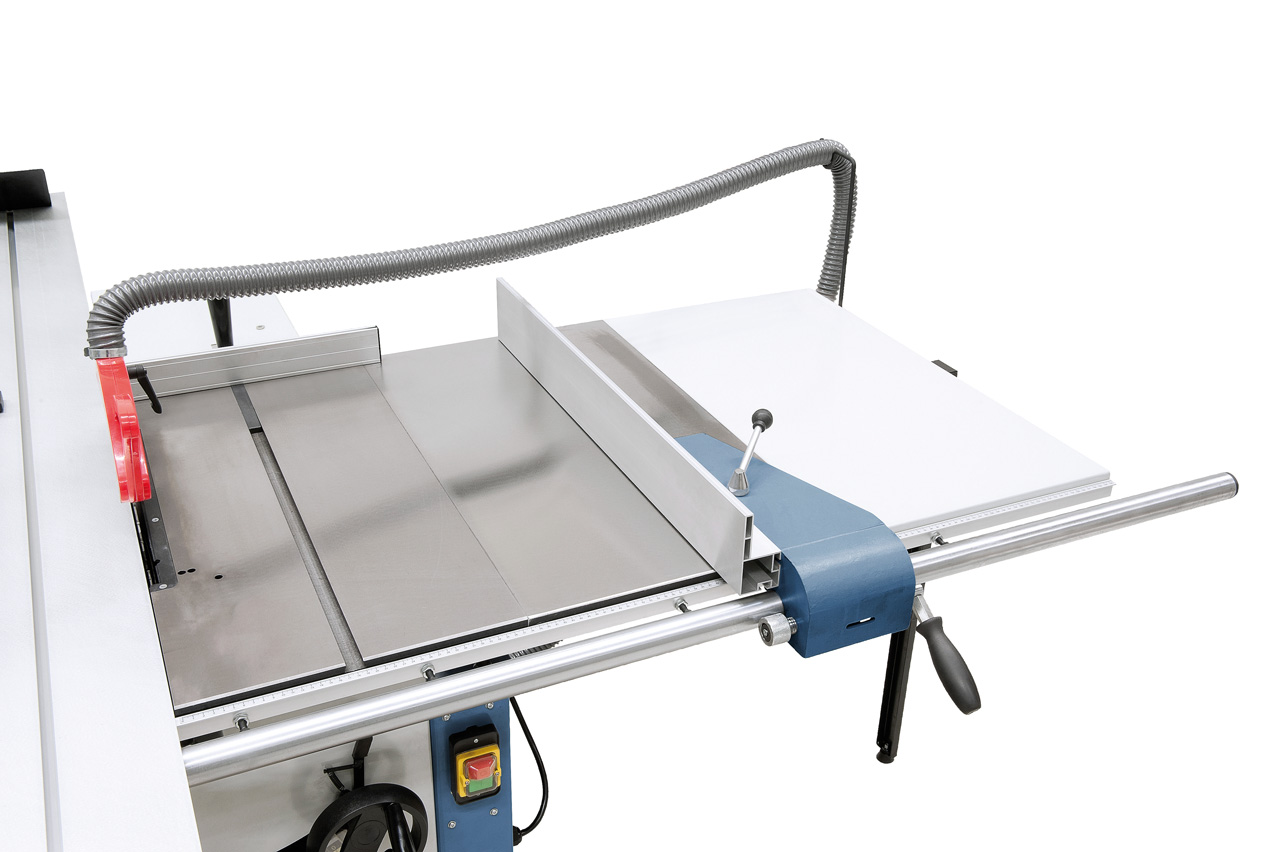

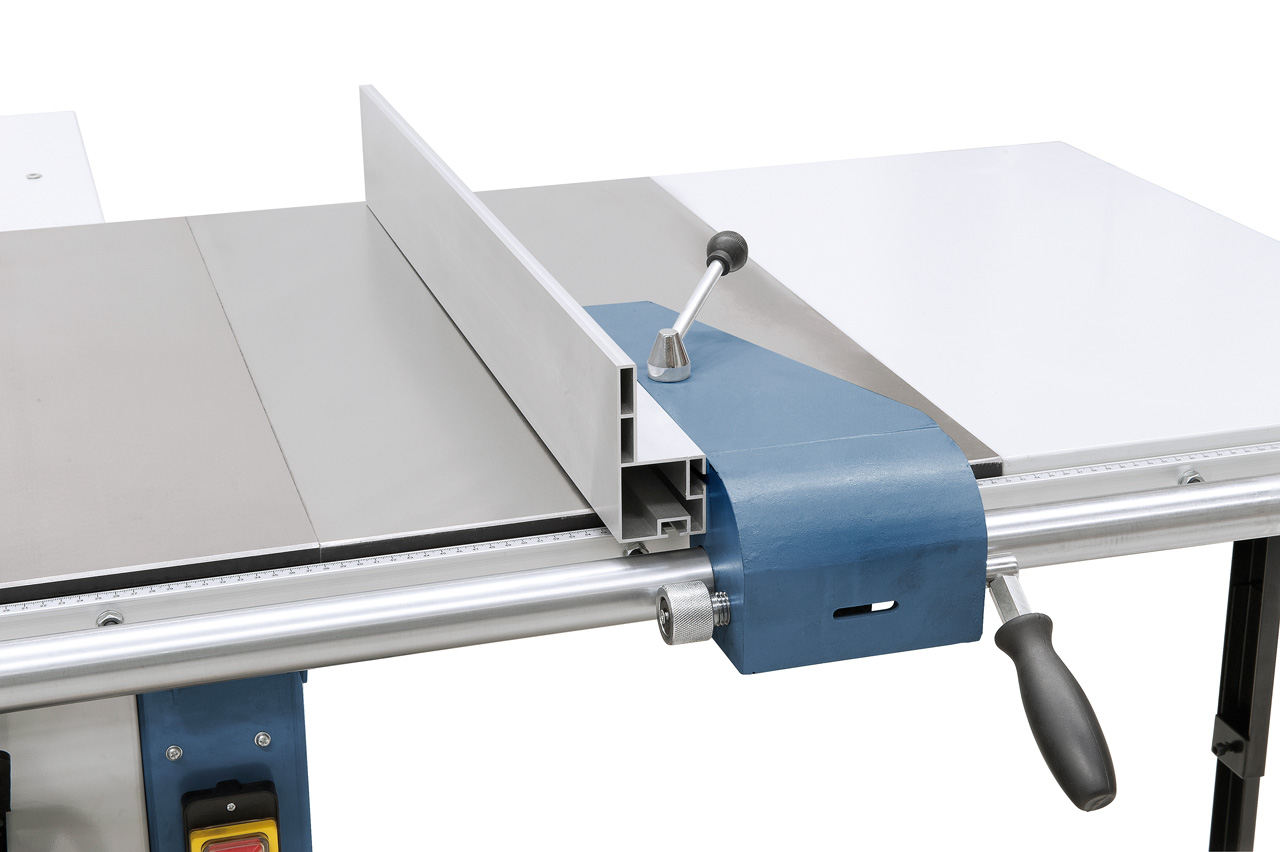

  • Increased ease of use thanks to the solid rip fence with magnifying glass
  • Slanting adjustment of the saw blade up to 45° according to the scale using a handwheel
  • Some assembly is required

Included Accessories

  • HM saw blade 315 x 3.0 x 30 mm / Z 40
  • Scoring blade 90 x 20 mm / Z12
  • Saw blade protection hood with suction connection
  • Connection hose with Y-piece
  • Mitre stop with eccentric clamp
  • Mitre gauge
  • Trimming shoe
  • 2 x Table extension
  • Extendable telescopic stop
  • Stop flap with fine adjustment
  • Outrigger table with roller
  • Push stick

Special Order: Typically 7 - 10 business day delivery

Electrical
Volts
400 Volts
Phase
3 Phase
Hertz
50 Hz
Watts (Input)
5300 Watts
Horse Power (Input)
7.2 hp
RPM
4000 rpm
Motor 2 For
Scoring
Motor 2 RPM
5800
Plug Fitted
No
NVR Switch
Yes
Emergency Stop
Yes
Saw
Saw Blade Diameter (mm)
315 mm
Max Rip Width (mm)
1200mm
Blade Bore (mm)
30 mm
Blade Supplied
Yes
Max. Cutting Height (mm)
100mmmm
Tilts to
45 °
Cut Depth at Max Tilt
80mm
Scoring Blade
Yes
General
Max Sliding Table Cut (mm)
2600mm
Sliding Table
Yes
Sliding Table Width (mm)
270mm
Width w/Extensions & Sliding Table (mm)
1532mm
Table Width mm
800mm
Table Depth mm
385mm
Table Height mm
860mm
Width with Extensions mm
1265mm
Lenght (mm)
2600mm
Dust Extraction Port mm
100 mm
Warranty
12 Mths
Total Weight (Kgs)
300 Kgs
