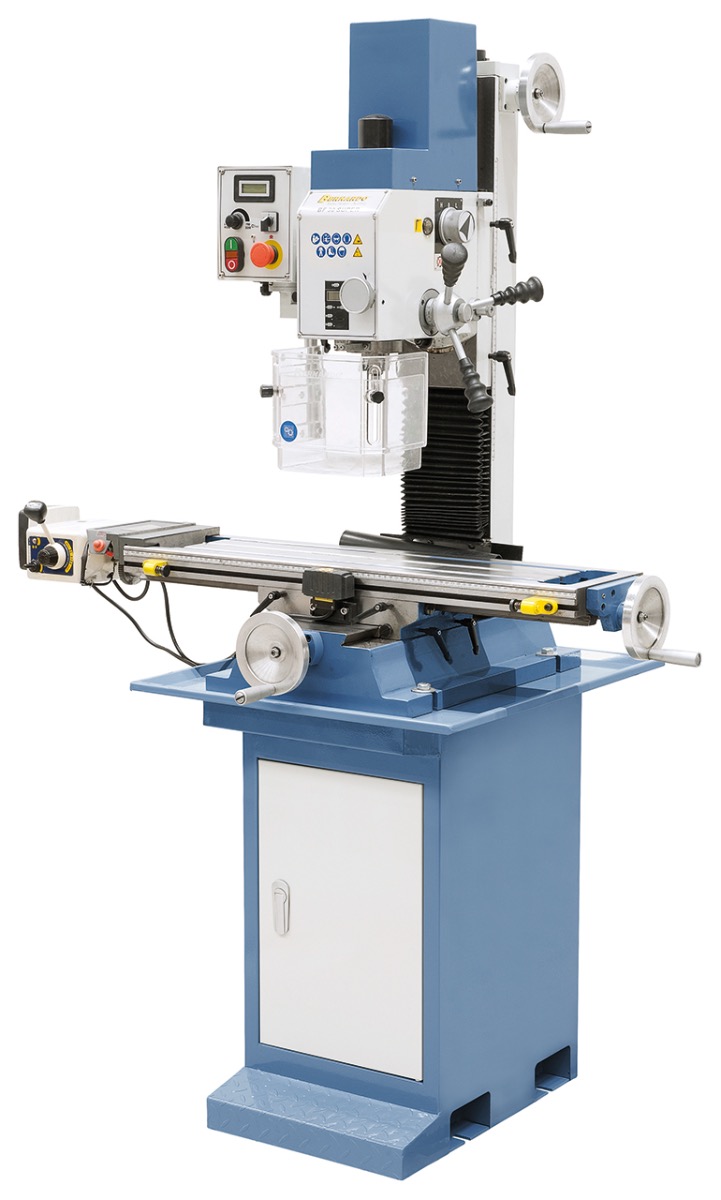

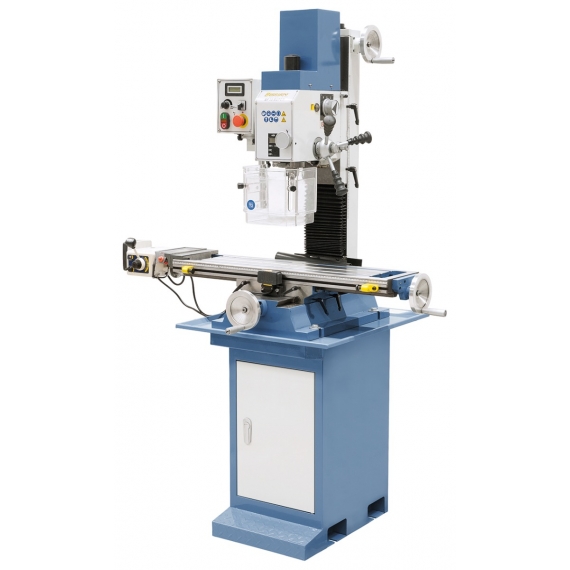

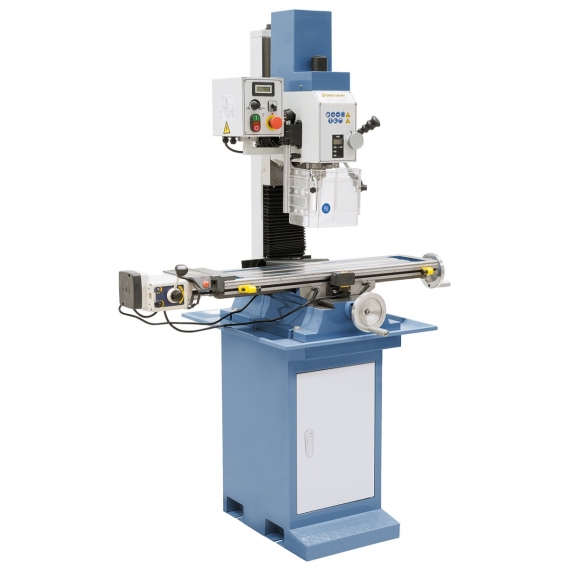

Bernardo BF 30 Super Milling Machine - 230 V With Power Feed

  • Power feed table
  • Many possible applications, such as groove milling, face milling, reboring etc.
  • Digital speed and spindle stroke indicator included as standard equipment
  • 2-step gear unit for optimal power transmission
  • Serially equipped with left and right turning, ideal for thread cutting
  • Direct current motor for ideal torque at lower speed
  • Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
  • High-quality bearings guarantees high spindle concentricity (≤0.015 mm)

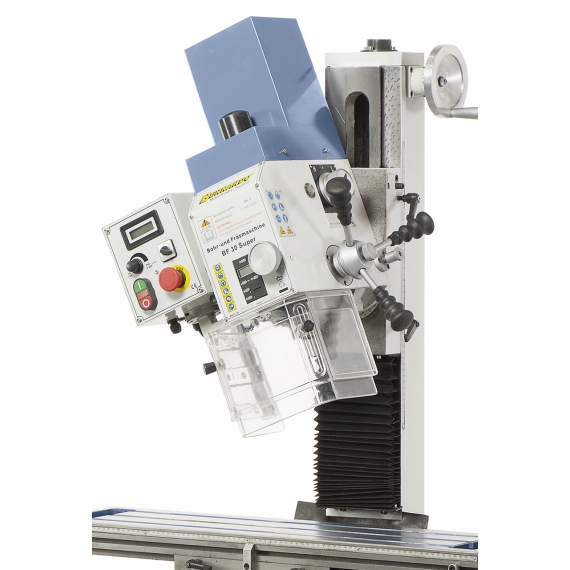

  • Mill head tiltable to both sides for angular boring, milling of bevels etc.
  • Large, surface treated cross table
  • Handle for spindle adjustment, handwheel for fine feed

Included Accessories

  • X-axis power feed AL 350 D
  • Keyless drill chuck 3 - 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Drawbar M 12
  • Digital speed indicator
  • Digital spindle stroke indicator
  • EMC filter according to CE standard
  • Height adjustable protective cover
Electrical
Volts
220 - 240 Volts
Phase
Single
Motor Type
DC
Hertz
50 Hz
Watts (Input)
1600 Watts
Amps (Input)
7.2 Amps
Starting Amps Approx.
14.4 Amps
Horse Power (Input)
2.1 hp
Plug Fitted
Yes
NVR Switch
Yes
Emergency Stop
Yes
Drilling & Milling
Max Drilling Size mm
30mm
Max End Mill mm
25mm
Max Size Face Milling Head mm
75mm
Max Milling Cutter Shaft Size mm
25mm
Vertical Spindle
Spindle Taper/Mount
MT 3
Spindle Chuck
MT 3
Cone/Mout/Taper Adaptors
MT3 to B16
Spindle/Quill Stoke mm
70mm
Min Distance Spindle to Table mm
135mm
Max Distance Spindle to Table mm
495mm
Speed Control
Stepless
Speed Steps
2
Speed Range
50 - 750 rpm
Speed Range 2
150 - 2250 rpm
Milling Head Tilt Range °
-90° to +90°
Tightening Bar/Drawbar
M12
Milling Table
Milling Table Width mm
840mm
Milling Table Dept mm
210mm
Table Travel X Axis mm
565mm X Axis
Table Travel Y Axis mm
215mm Y Axis
Adjusments Gibs
Yes
T- Slot Size mm
14 mm
Number of T Slots
3 T Slots
General
Suitable for
Serious Hobbyist
Warranty
12 Mths
Registration Required
No
Stand Included
No
Total Weight (Kgs)
220 Kgs
