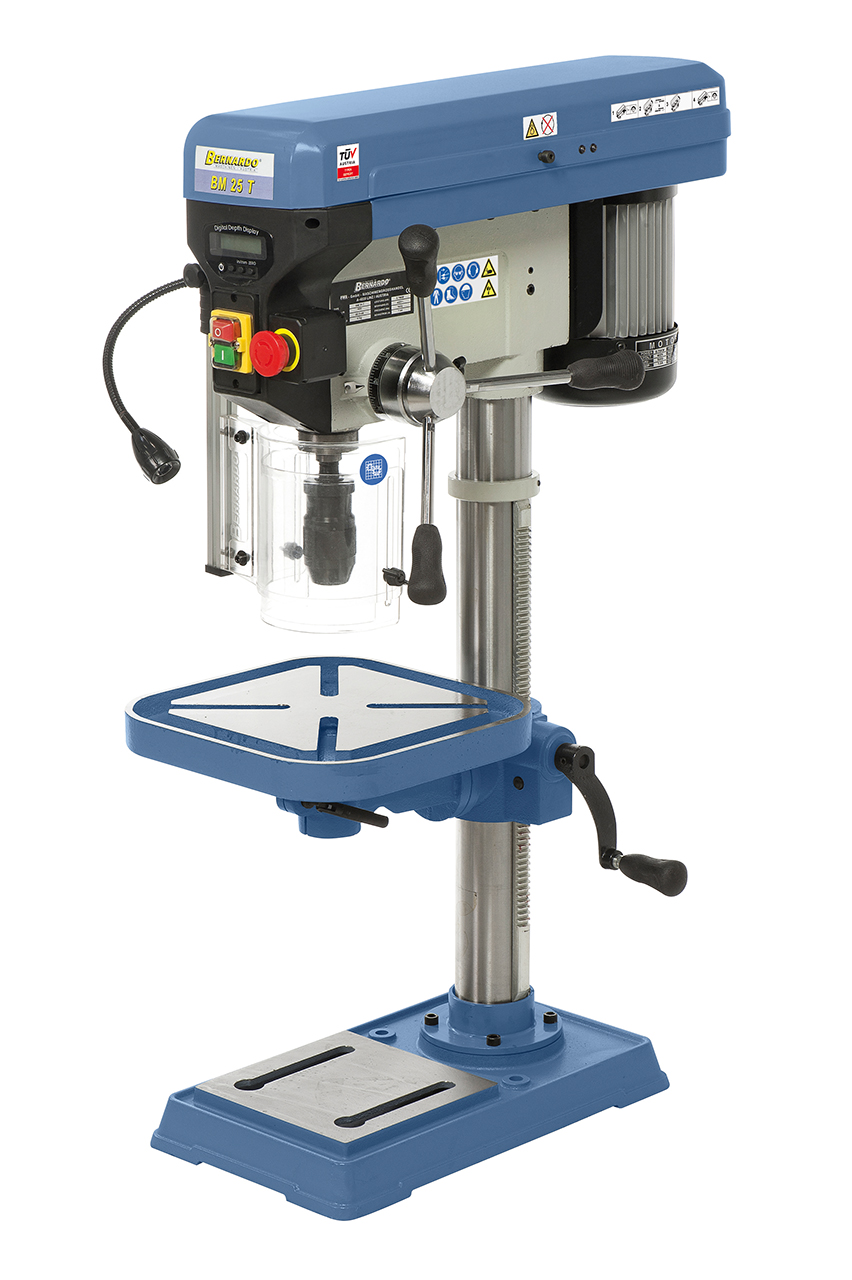

Bernardo BM 25 T Bench Pillar Drill - 230 V

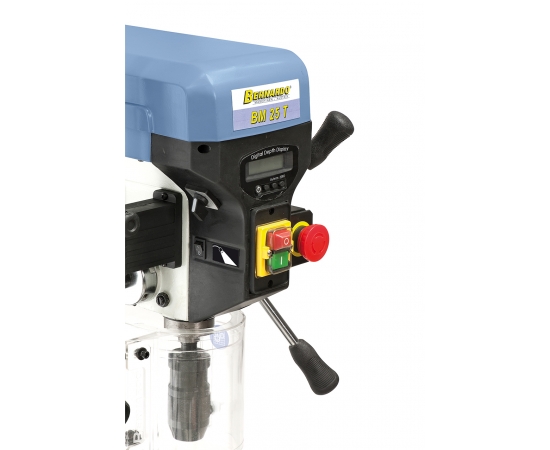

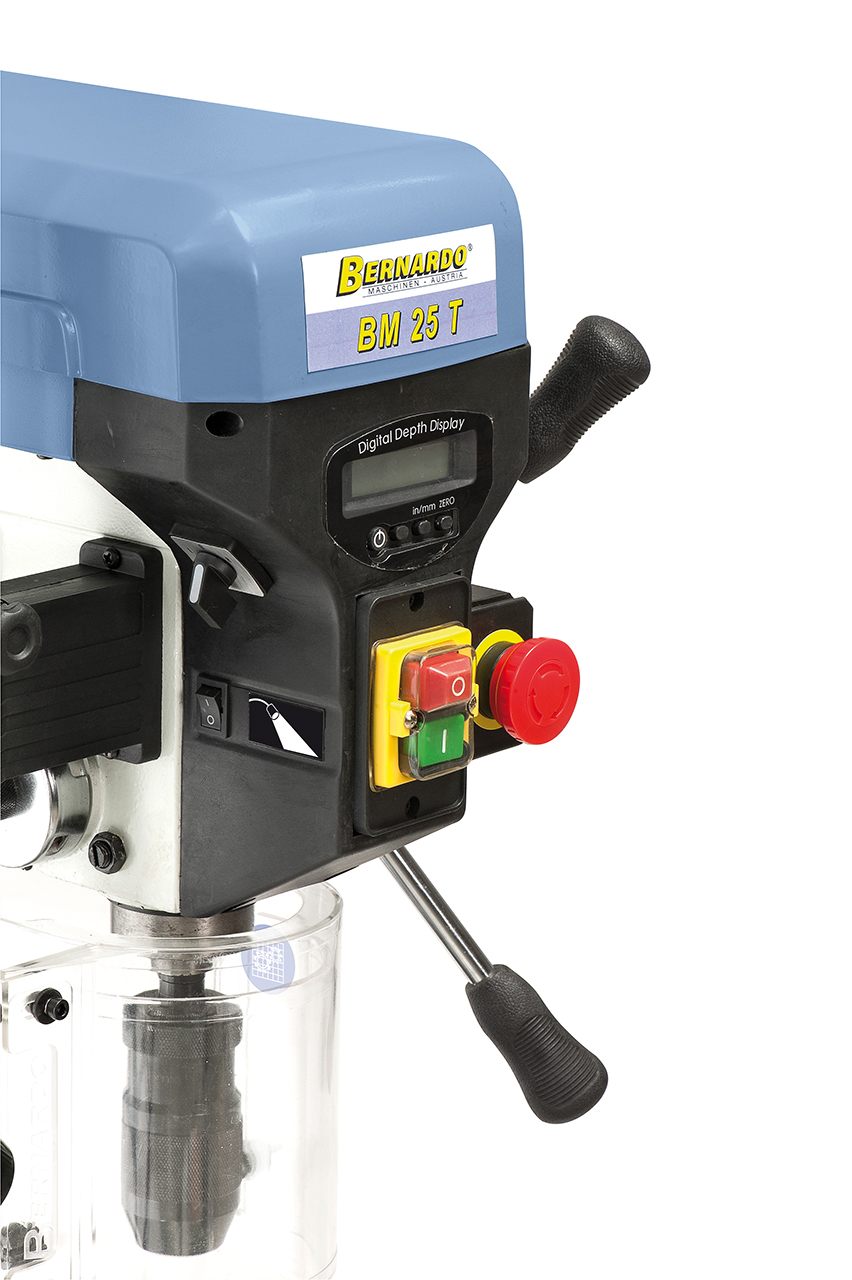

- Digital display for spindle stroke and LED-lamp work lamp

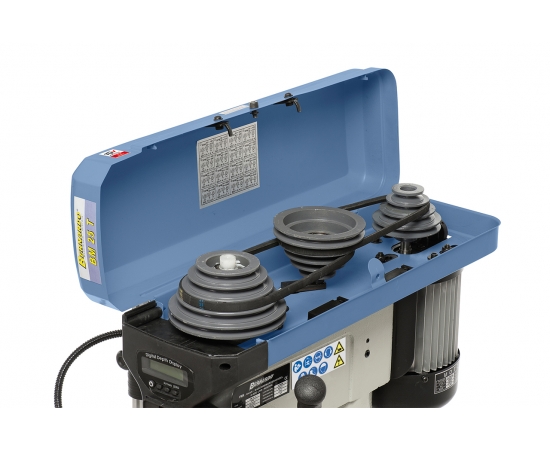

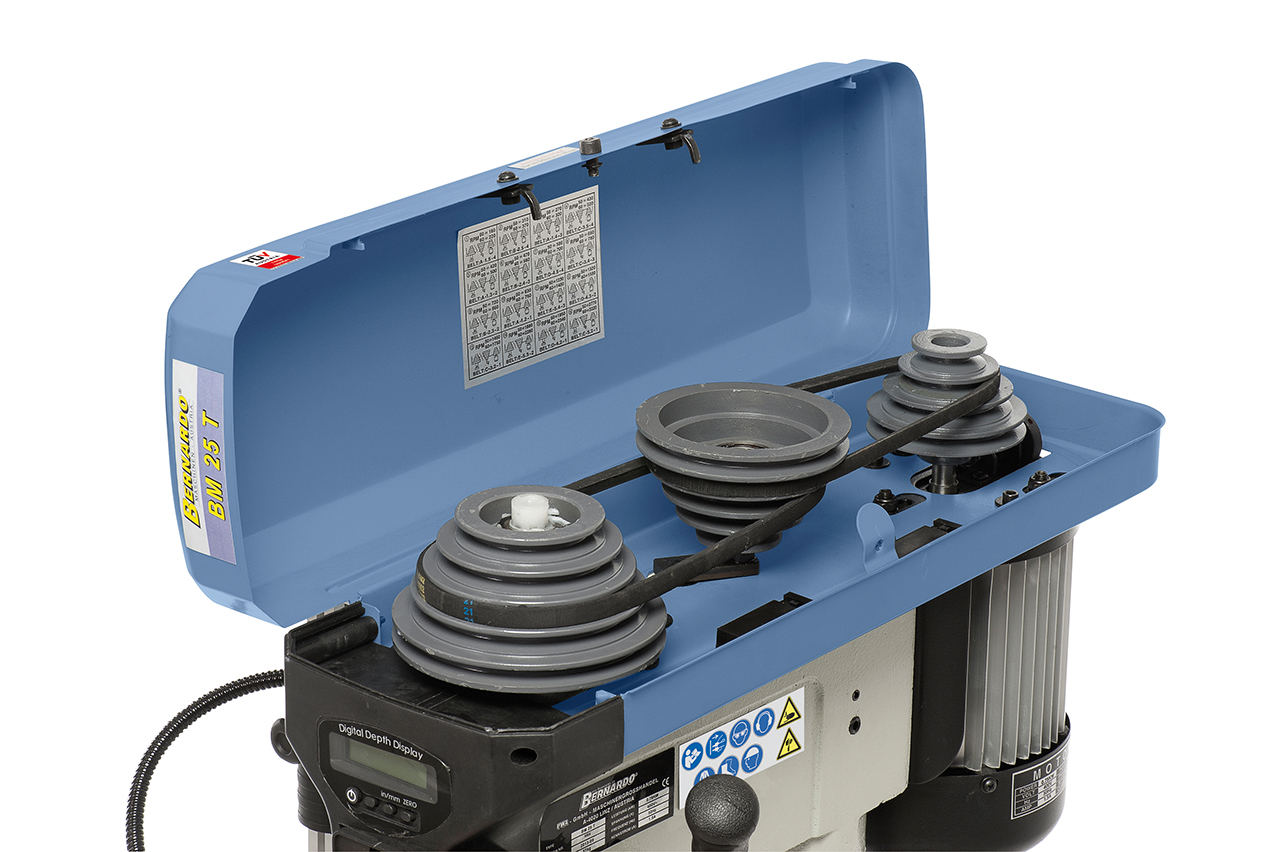

- Grey cast iron pulleys ensure smooth running
- High-quality ball bearings ensure high spindle concentricity

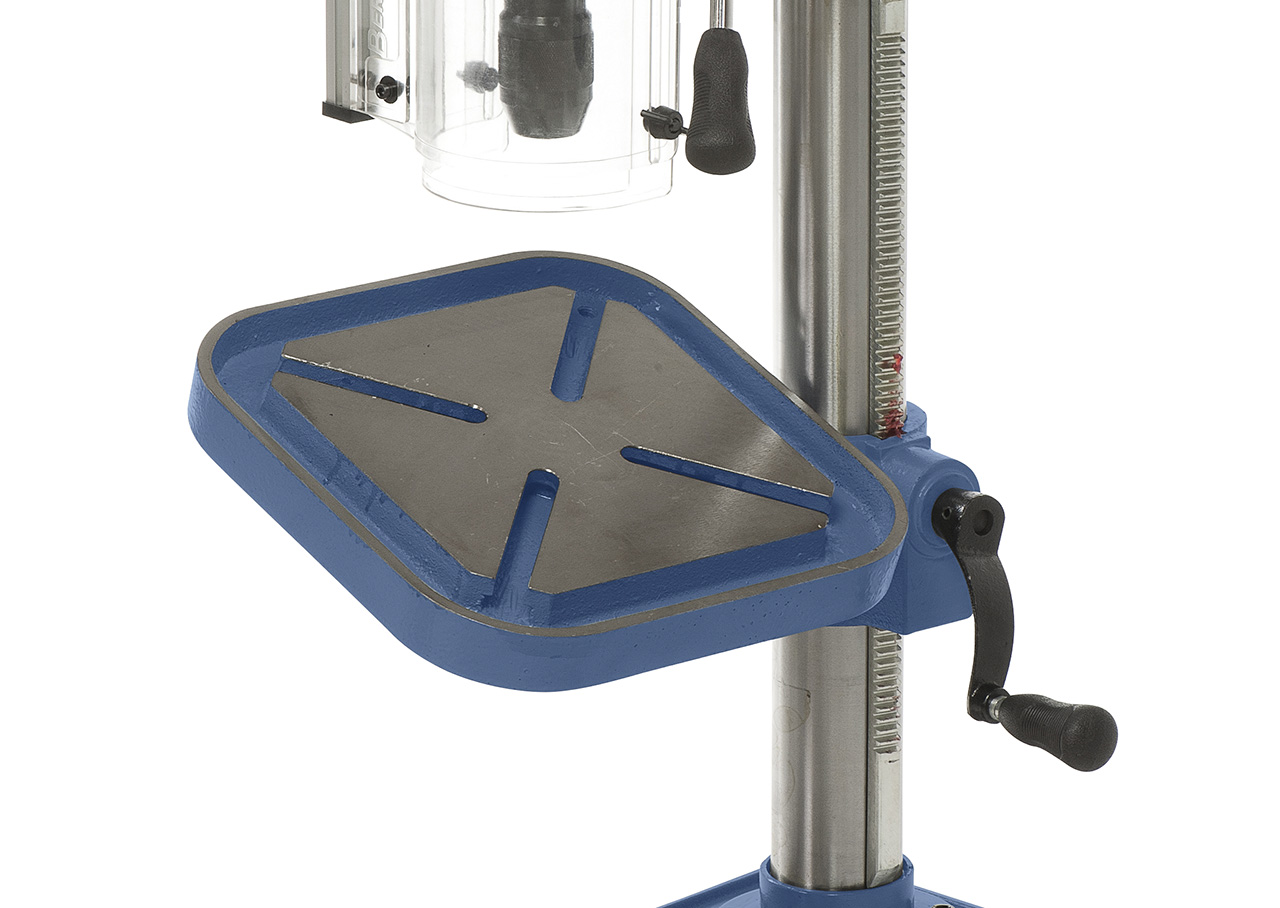

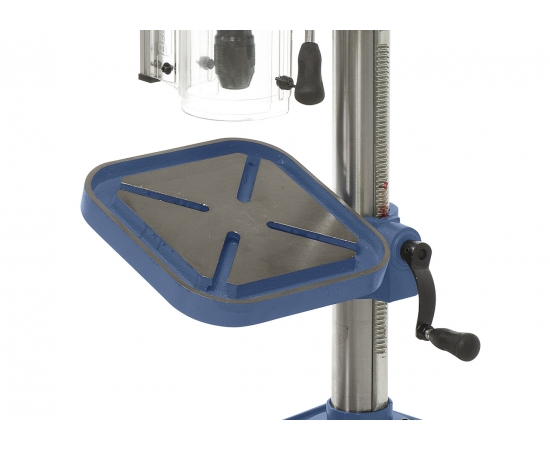

- Large drill table features diagonal T-slots
- Drill table tilts (±45°), gear rack allows height adjustment
- High performance aluminium motor in accordance with the IP 54 standard
- Complete with high-quality keyless drill chuck
- Polished machine base features T-slots
- Clearly arranged handles ensure high comfort when working
Specifications
- Drilling capacity steel: 25 mm
- Drill chuck: 1 - 16 mm / B 18
- Morse taper: MT 2
- Spindle speed: (16) 220 - 2840 rpm
- Distance spindle to column: 180 mm
- Drilling table tiltable: -45° to +45°
- Distance spindle to table max: 415 mm
- Distance spindle to base: 605 mm
- Spindle stroke: 80 mm
- Column diameter: 72 mm
- Table size / T-slot size: 305 x 305 mm / 16 mm
- Working surface of base: 205 x 205 mm
- Machine dimension (W x D x H)400 x 630 x 990 mm
- Weight approx 57kg
Included Accessories
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 2 / B 18
- Digital spindle stroke indication
- LED machine light
- T-slot nuts
- Height adjustable protective cover
