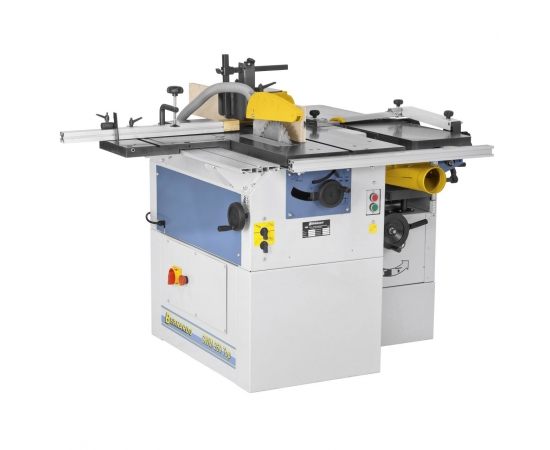

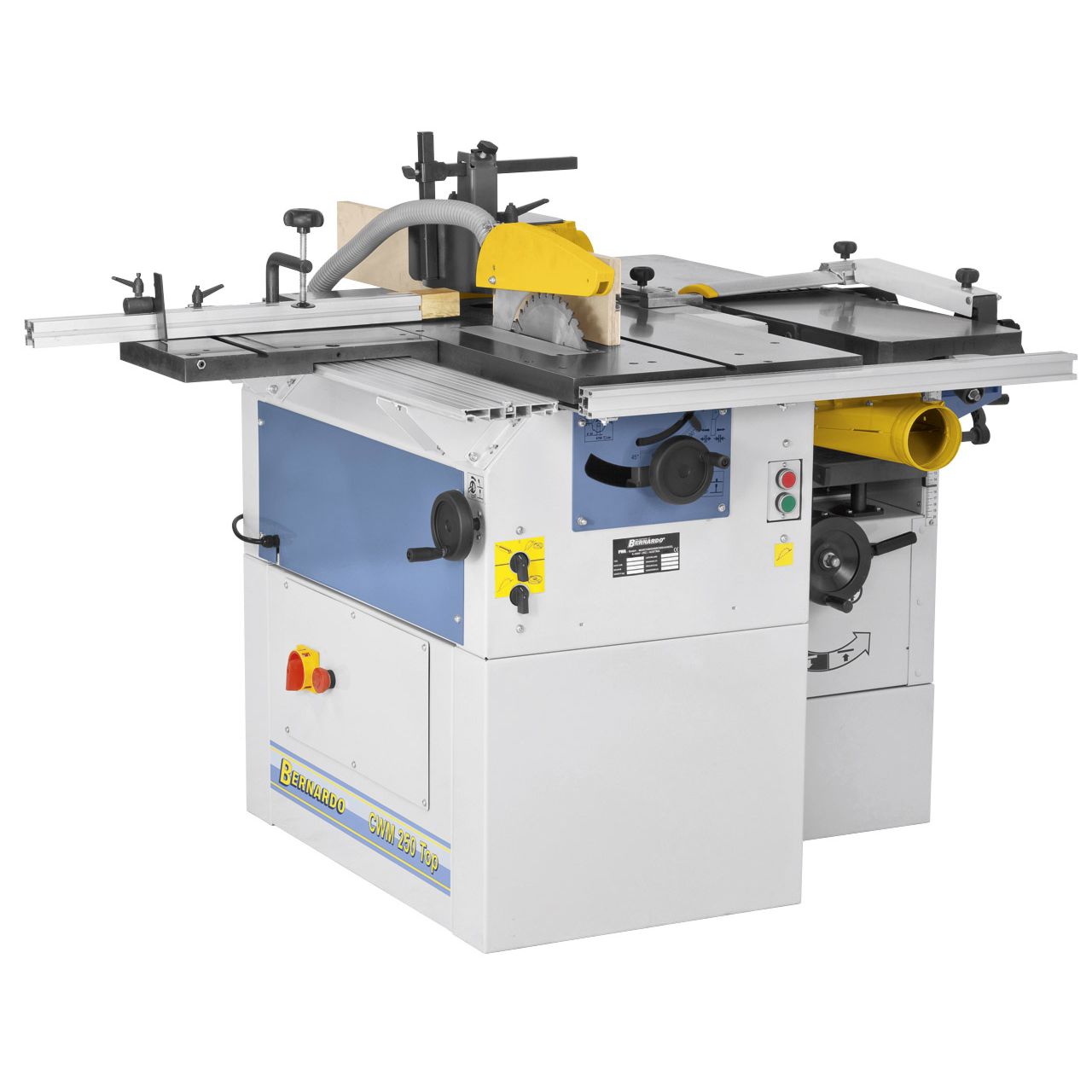

Bernardo CWM 250 Top Combination Machine

  • Solid grey cast-iron table eliminates vibrations, precisely manufactured and polished
  • Ergonomically arranged handwheels allow for the setting of the saw unit

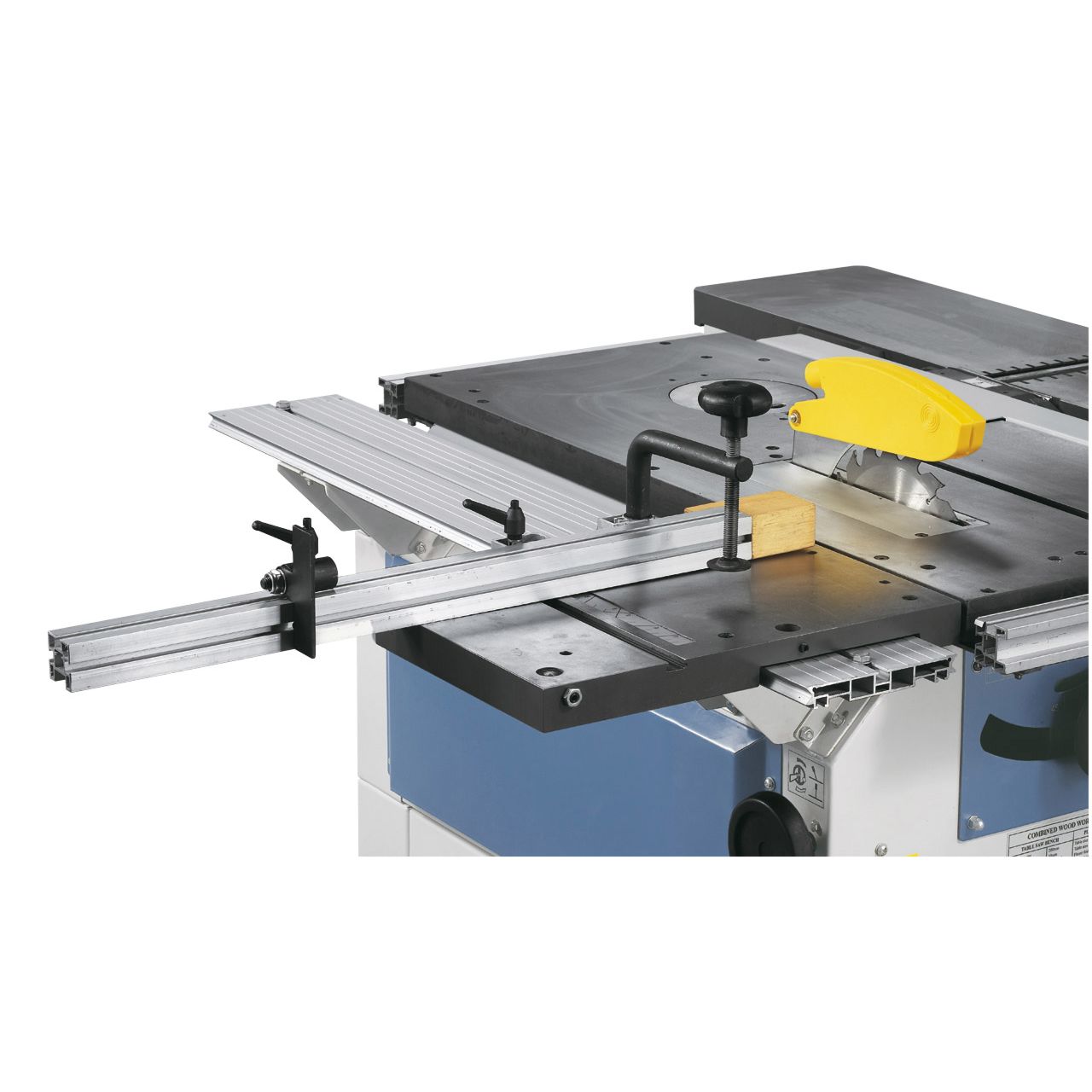

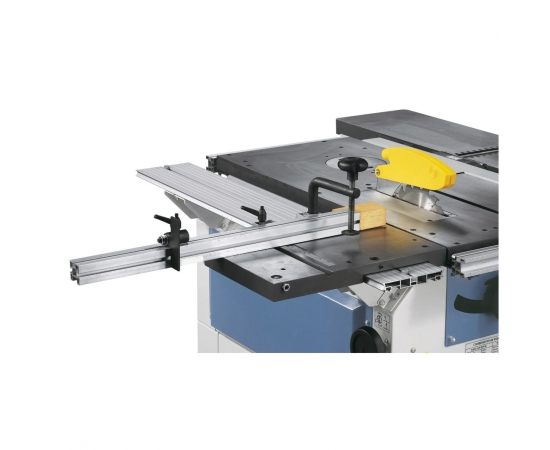

  • Equipped with sliding carriage with an aluminium fence to increase user comfort
  • Emergency stop button on the front of the machine

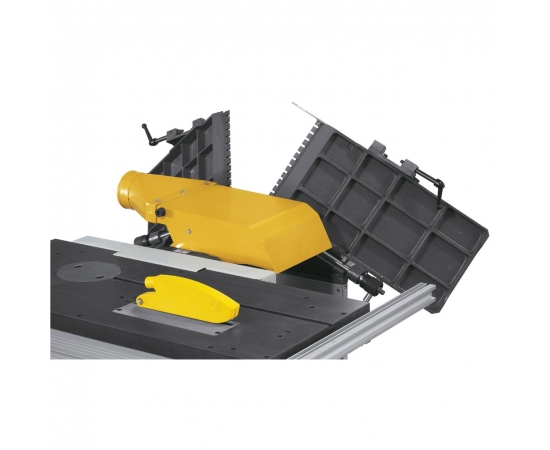

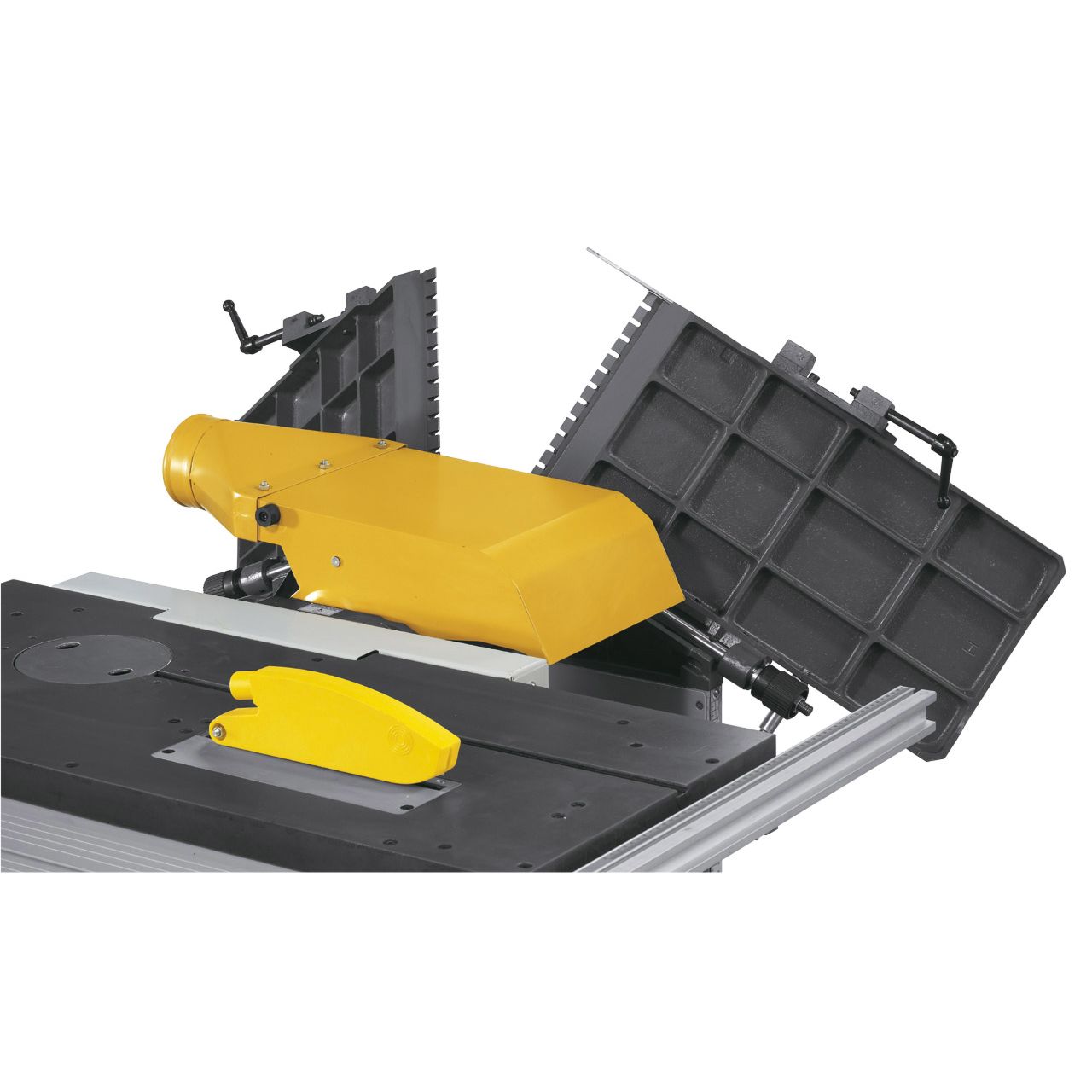

  • Integrated, tiltable dust hood when thicknessing & 100mm extraction outlet
  • Perfectly suitable for accurate processing of panels, boards, planks etc.
  • Dynamically balanced moulder spindle ensures vibration-free run
  • Torsion-free planer table made of reinforced grey cast-iron
  • Workpiece feed can be switched off when planing
  • Optional mortising unit (16 mm capacity) available seperately

Included accessories

  • Cutter knives 250 x 30 x 3 mm
  • Planer fence
  • Downholder
  • Mitre fence

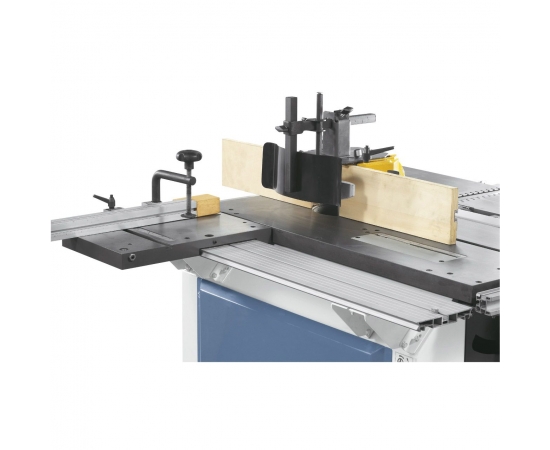

  • Sliding Table/Carriage
  • Moulding fence
  • Protective cover with dust extraction outlet
  • Connector tube with Y-piece
  • Aluminium fence with stop
  • Sawblade 254 x 3,0 x 30 mm / 36T
  • Push stick

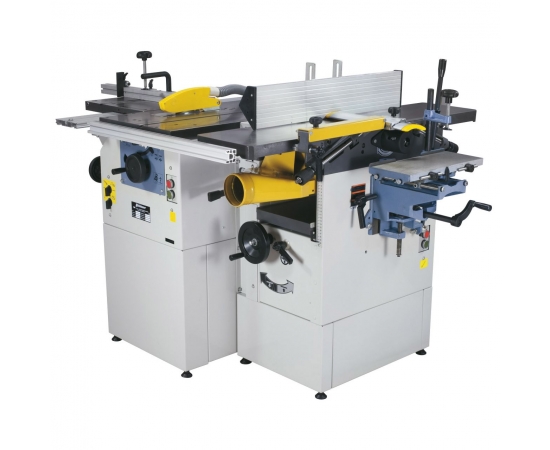

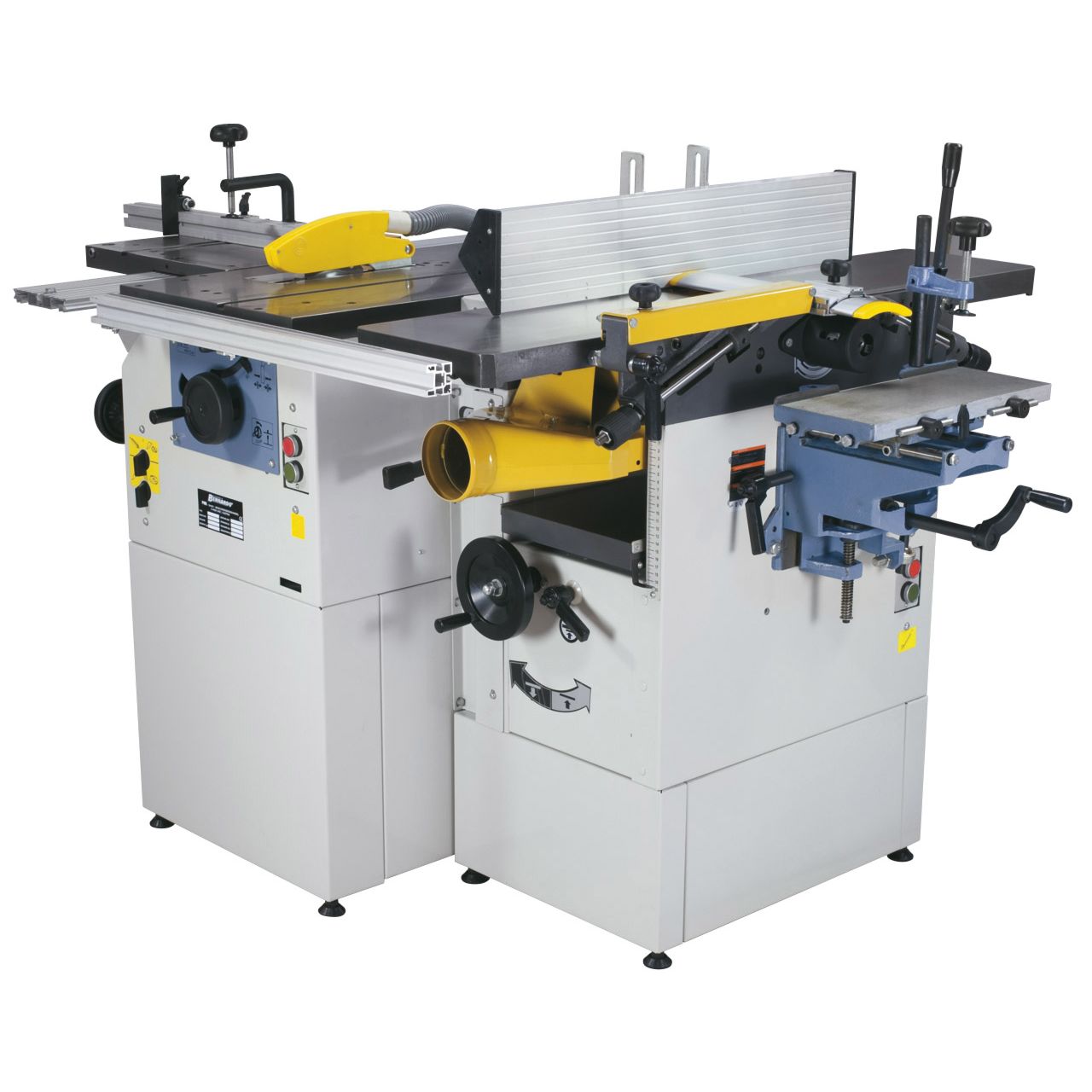

Shown with optional horizontal morticer, available separately.

Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50 Hz
For
Saw
Watts (Input)
3000 Watts
Horse Power (Input)
4 hp
RPM
4750 rpm
Motor 2 For
Planer
Motor 2 Watts (Input)
2100 Watts
Motor 2 Horse Power (Input)
2.8 hp
Motor 2 RPM
4000
Motor 3 For
Spindle Molder
Motor 3 Watts (Input)
2000 Watts
Motor 3 Horse Power (Input)
2.6 hp
Motor 3 RPM
6500 rpm
Plug Fitted
No
NVR Switch
Yes
Emergency Stop
Yes
Saw
Saw Blade Diameter (mm)
250 mm
Max Rip Width (mm)
510mm
Blade Bore (mm)
30 mm
Blade Supplied
Yes
Max. Cutting Height (mm)
75mm
Tilts to
45 °
Cut Depth at Max Tilt
60mm
Mitre Gauge Included
No
Scoring Blade
No
Thicknesser/Surfacer
Max Planing Width mm
250 mm
Thicknesser Bed Length mm
600mm
Min./Max. Material Thickness mm
5 - 195mm
Max Thicknessing Cut mm
3mm
Feed speed
8 m/minute
Cuts per Minute
14250
No of Knifes/Blades
3
Planer Shaft Diameter mm
75
Surfacing Bed Length mm
1090mm
Max Surfacing Cut mm
2.5mm
Planer Fence mm
715 x 130mm
Planer Fence Tilt
90° - 45°

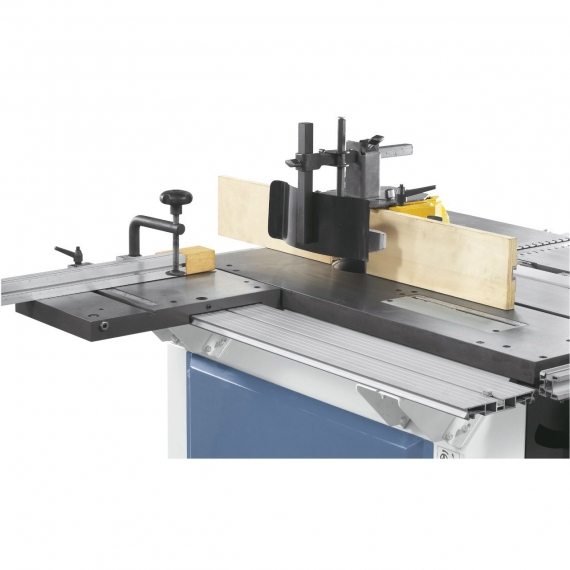

Spindle Molder
Table Opening
145 mm
Spindle Diameter mm
30 mm
Spindle Height Adjustment
100mm
Working Length of Spindle mm
70mm
Max Cutter Diameter mm
140mm
Max Tool Diameter Concealed mm
140mm
Speeds
6500
General
Max Sliding Table Cut (mm)
730mm
Sliding Table
Yes
Sliding Table Width (mm)
400mm
Width w/Extensions & Sliding Table (mm)
1350mm
Table Width mm
470 mm
Table Depth mm
980mm
Table Height mm
860mm
Width with Extensions mm
870mm
Dust Extraction Port mm
100 mm
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
310 Kgs
