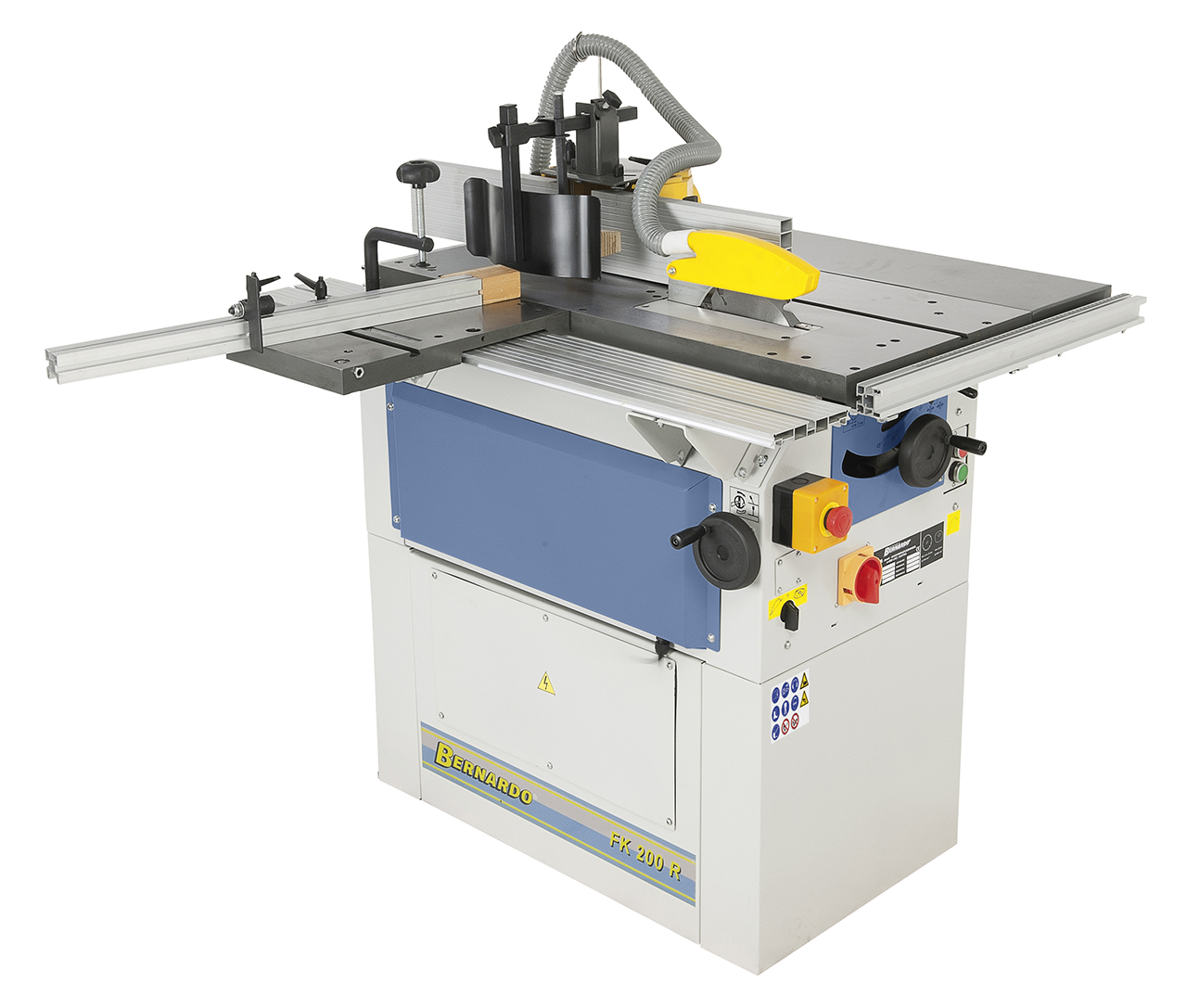

Bernardo FK 200 R Table Saw & Spindle Moulder - 230 V

  • Combined table saw and spindle moulder

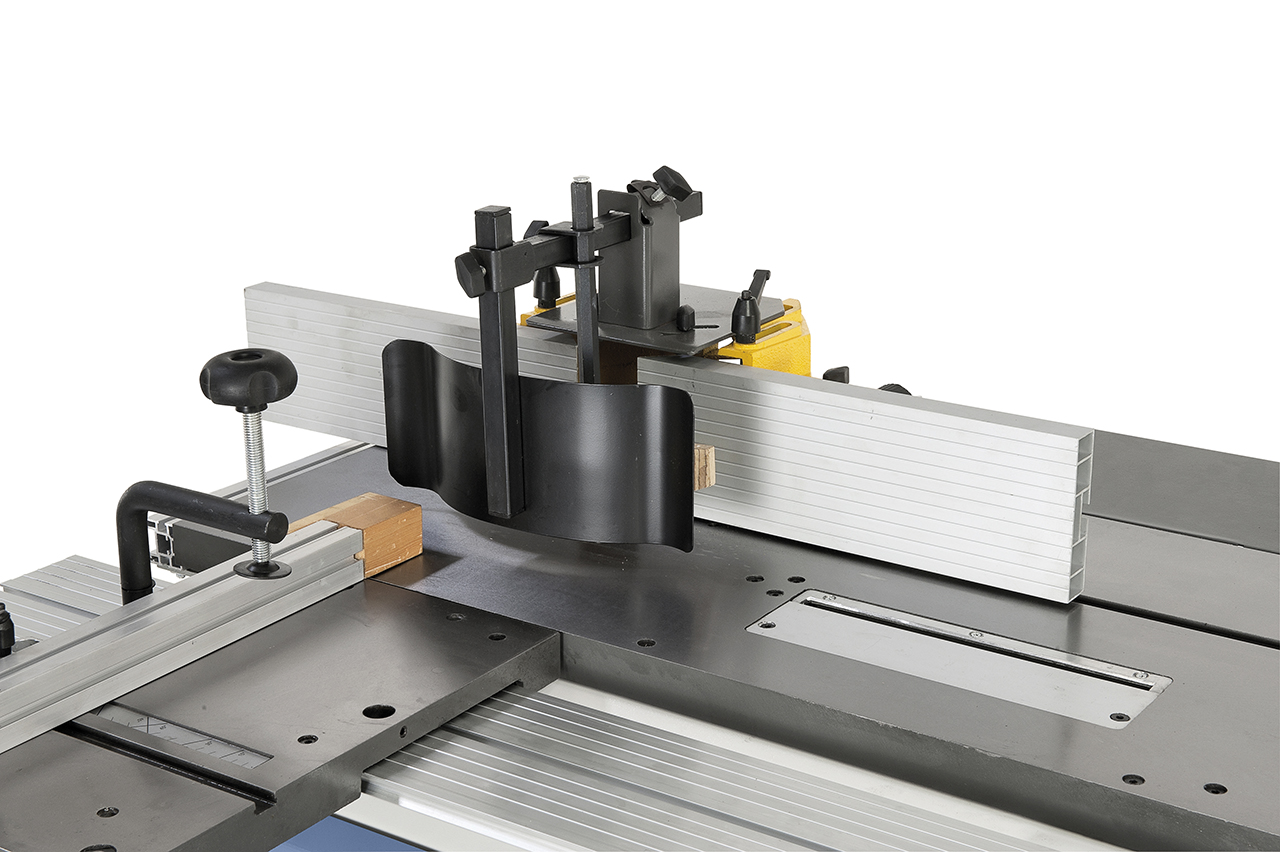

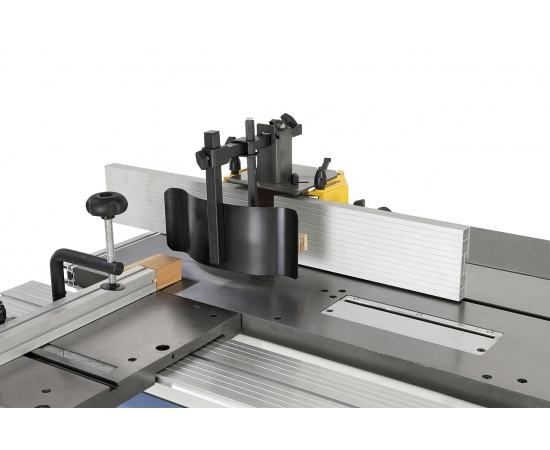

  • Solid moulding fence
  • Ergonomically arranged switches and control elements allow for high work comfort
  • Solid, grey cast-iron table eliminates vibrations, constructed and polished with precision
  • Practically positioned handwheels allow for convenient saw unit adjustment
  • Roller table with aluminium fence ensures high user comfort
  • Emergency stop button on the front of machine increases safety
  • Most suitable for accurate processing of panels, planks, boards etc.
  • Dynamically balanced moulder spindle ensures for a vibration-free run

Included Accessories

  • Mitre fence
  • Downholder
  • Connector tube with Y-piece
  • Carbide sawblade 200 x 3,0 x 30 mm / 18T

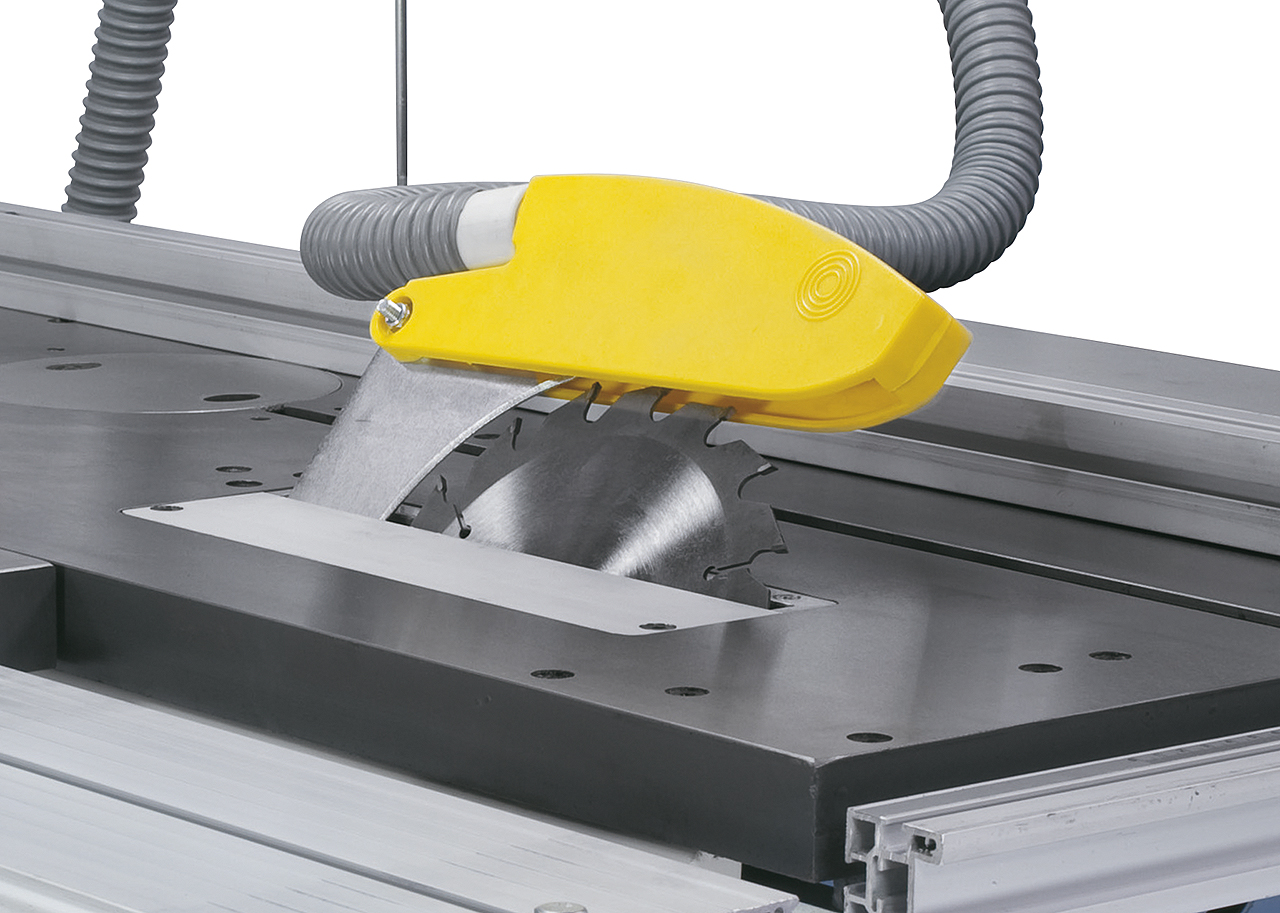

  • Protective cover with dust extraction outlet
  • Aluminium fence with stop

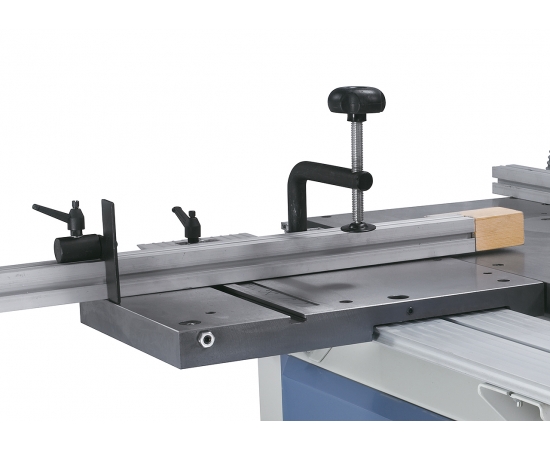

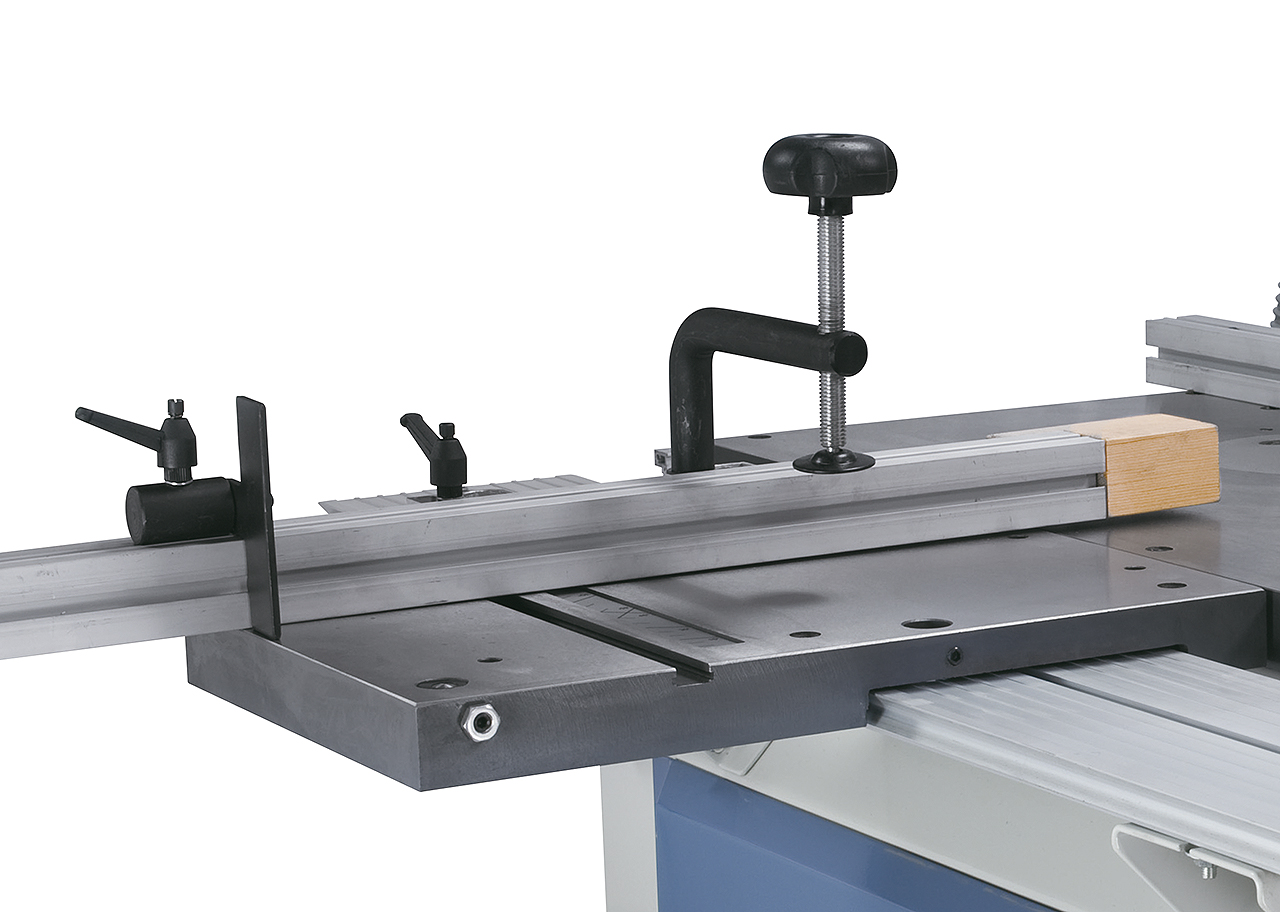

  • Roller table
  • Table extension
  • Moulding fence
  • Push stick
Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50 Hz
For
Saw
Watts (Input)
1500 Watts
Horse Power (Input)
2 hp
RPM
4750 rpm
Motor 2 For
Spindle Moulder
Motor 2 Watts (Input)
2000 Watts
Motor 2 Horse Power (Input)
2.7 hp
Motor 2 RPM
6500
Plug Fitted
No
NVR Switch
Yes
Emergency Stop
Yes
Saw
Saw Blade Diameter (mm)
200 mm
Max Rip Width (mm)
410mm
Blade Bore (mm)
30 mm
Blade Supplied
Yes
Max. Cutting Height (mm)
60mm
Tilts to
45 °
Cut Depth at Max Tilt
50mm
Mitre Gauge Included
No
Scoring Blade
No
Spindle Molder
Table Opening
145 mm
Spindle Diameter mm
30 mm
Spindle Height Adjustment
100mm
Working Length of Spindle mm
70mm
Max Cutter Diameter mm
140mm
Max Tool Diameter Concealed mm
140mm
Speeds
6500
General
Max Sliding Table Cut (mm)
670mm
Sliding Table
Yes
Sliding Table Width (mm)
400mm
Width w/Extensions & Sliding Table (mm)
810mm
Table Width mm
410 mm
Table Depth mm
900mm
Table Height mm
860mm
Width with Extensions mm
810mm
Dust Extraction Port mm
100 mm
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
140 Kgs
