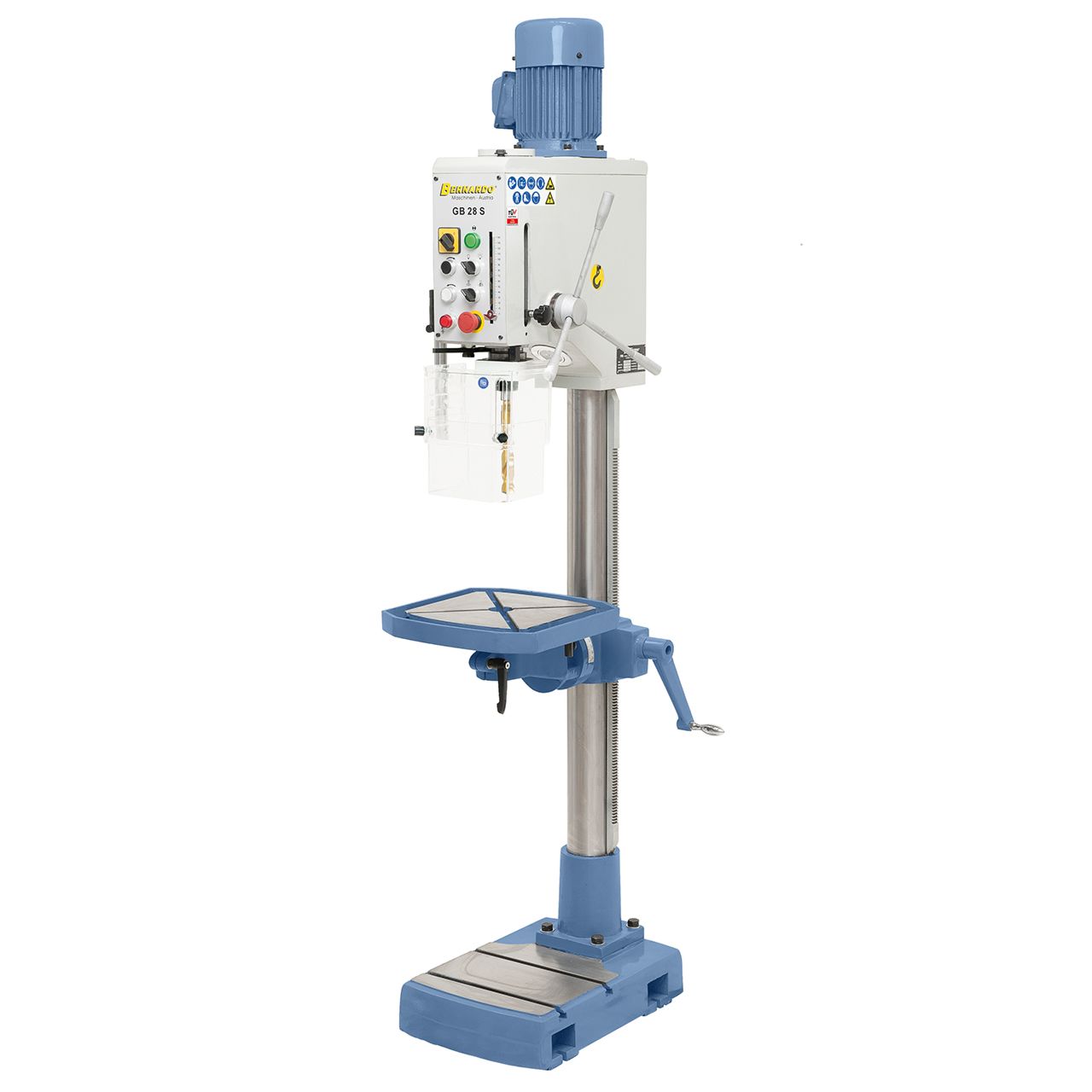

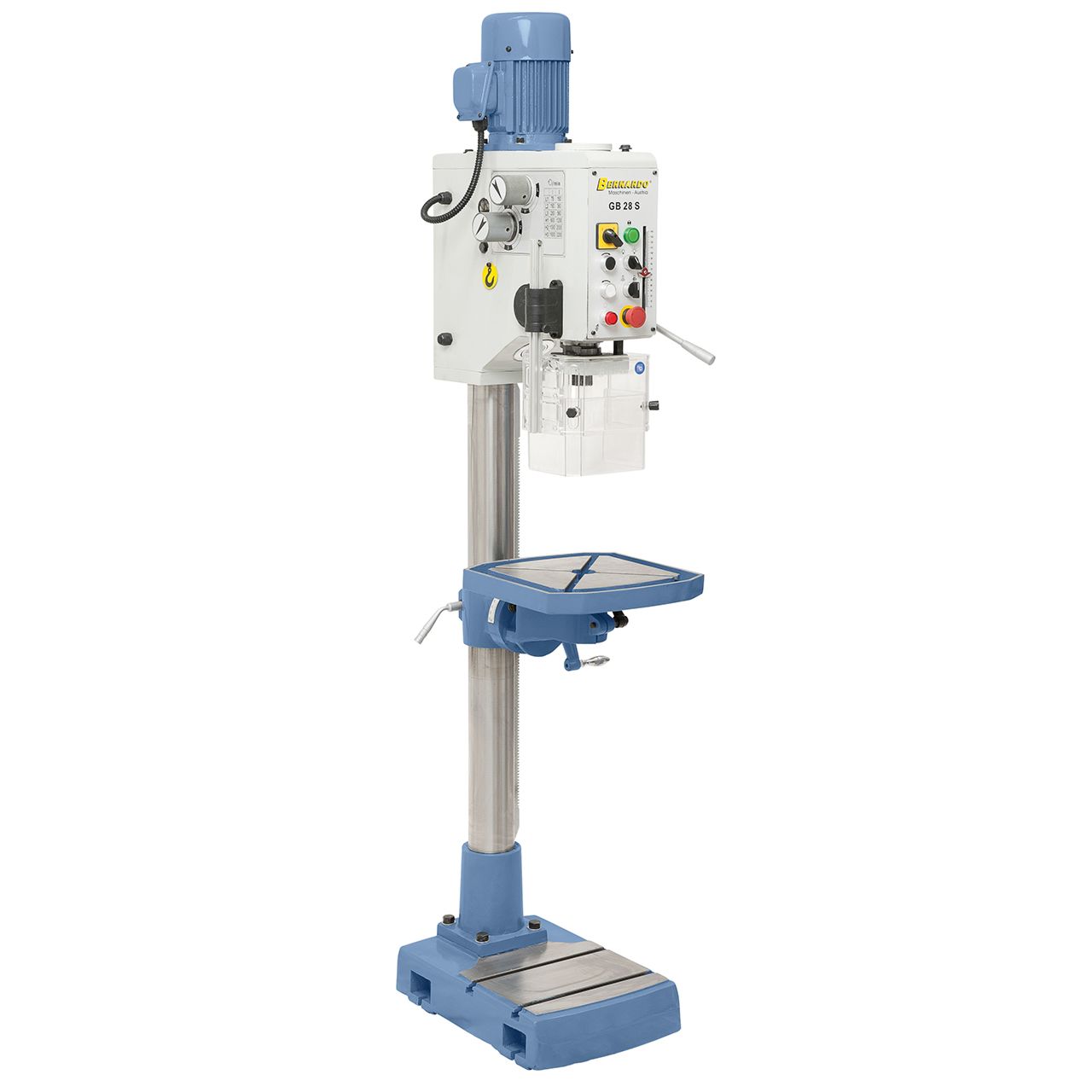

Bernardo GB 28 S Gearhead Drilling Machine

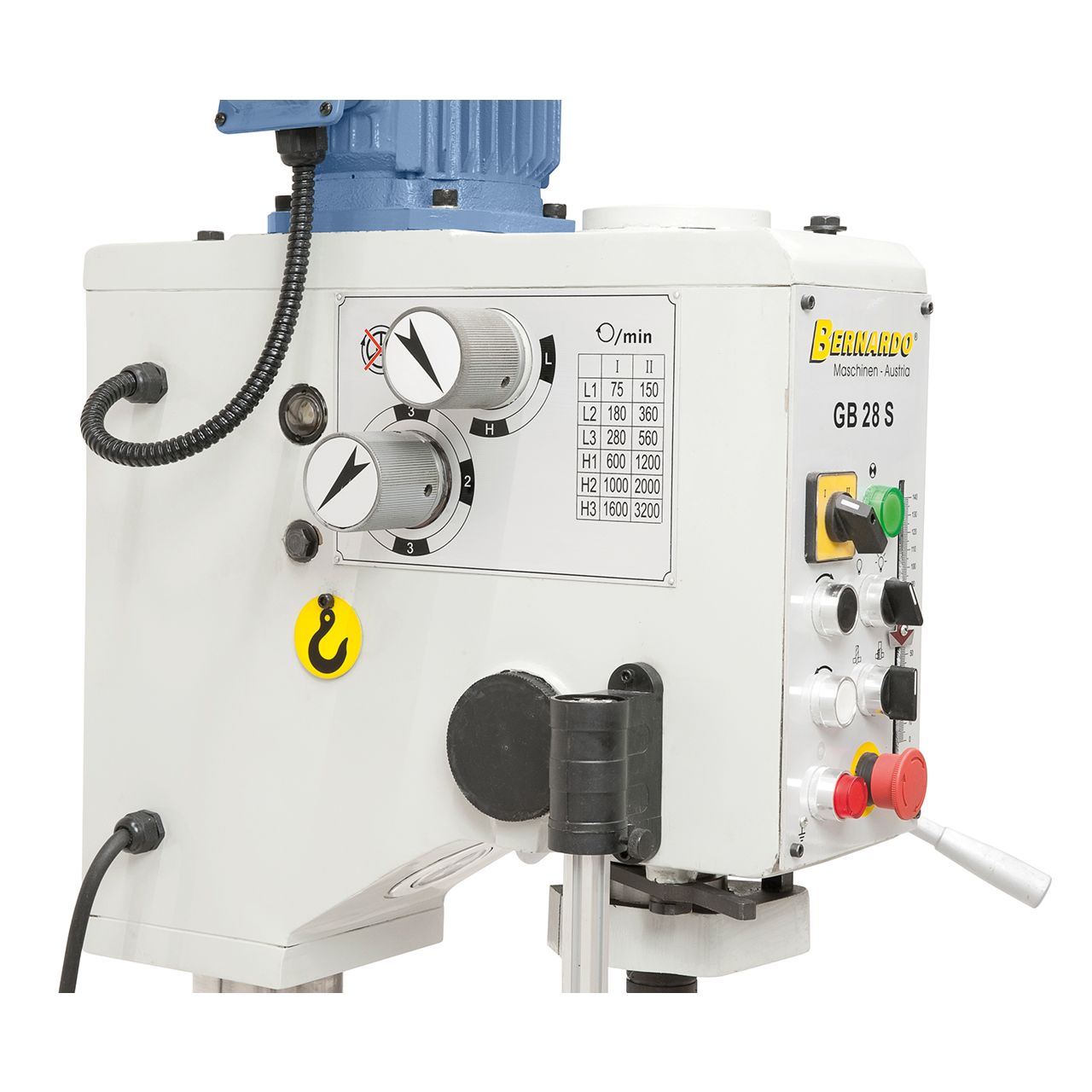

  • Powerful 2-step drive motor allows for 12 different speed setting
  • Rotation switch for right and left turning for thread cutting

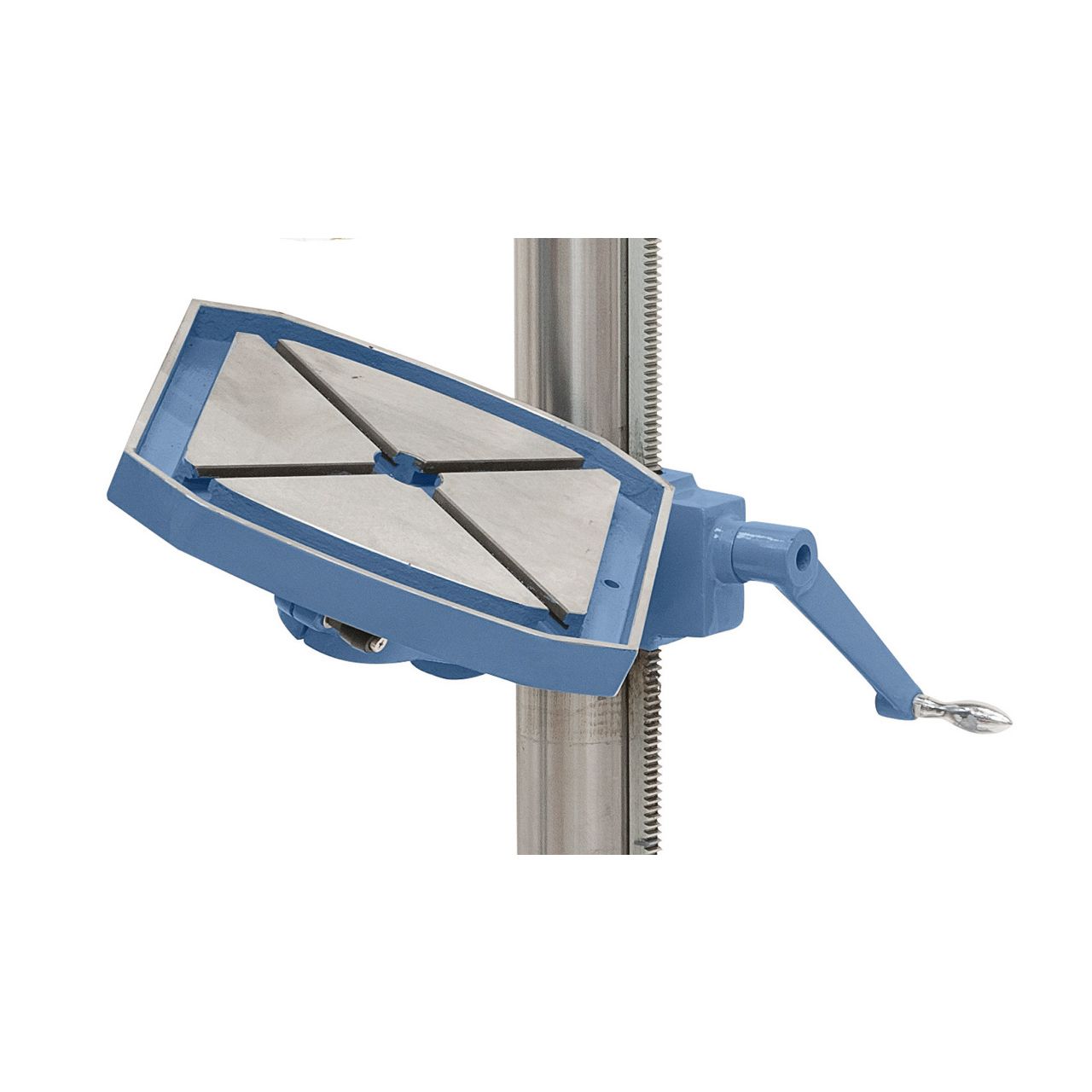

  • Solid work table (360° turntable), tiltable from -45° to +45°
  • Treated machine base for clamping extraordinarily oversize workpieces
  • High-quality ball bearings allow for high concentricity
  • Automatic tool release device allows easy tool change
  • Adjustable drill depth stop, drill depth can be read on the scale
  • Solid, polished steel column suitable for a heavy workload
  • Polished gear wheels ensure a smooth run
  • Height adjustable protective cover with micro switch for increased safety

Special Order: Typically 7 - 10 business day delivery.

Drill Specifications
Base Size
375 x 375 mm T Slot 14 mm
Chuck Capacity
375 x 375 mm / 14 mm mm
Chuck to Base
1210 mm
Chuck to Table
810mm
Chuck Type
MT 3 / B 16
Colum Diameter
100mm
Drilling capacity - Steel
28 mm
No. of Speeds
12
Speed Range
75 - 3200rpm
Spindle Taper
MT 3
Spindle Travel
130mm
Swing
500mm
Electrical
Phase
3 Phase
Watts (Input)
1500 Watts
Plug Fitted
No
Emergency Stop
Yes
General
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
215 Kgs
