Bernardo Hobby 250 Metal Lathe

◆ 220 - 240 Volts - 200 Watts

◆ Between Centres - 250mm

◆ 100 - 2000 RPM

◆ 23 kg

+

Bernardo Hobby 250 Metal Lathe - 230 V

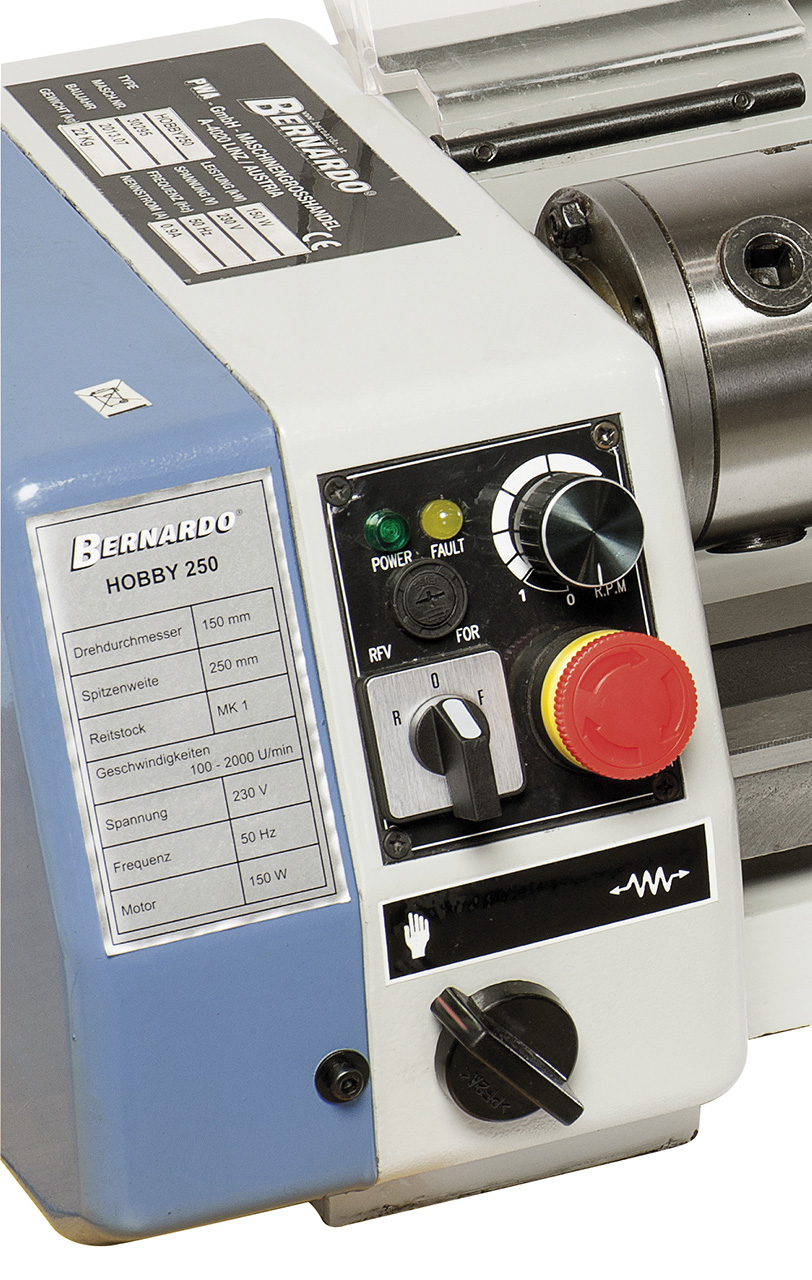

  • Stepless speed adjustment of main spindle
  • User-friendly arrangement of control elements
  • Quick and easy speed change
  • Inductive hardened and polished machine bed

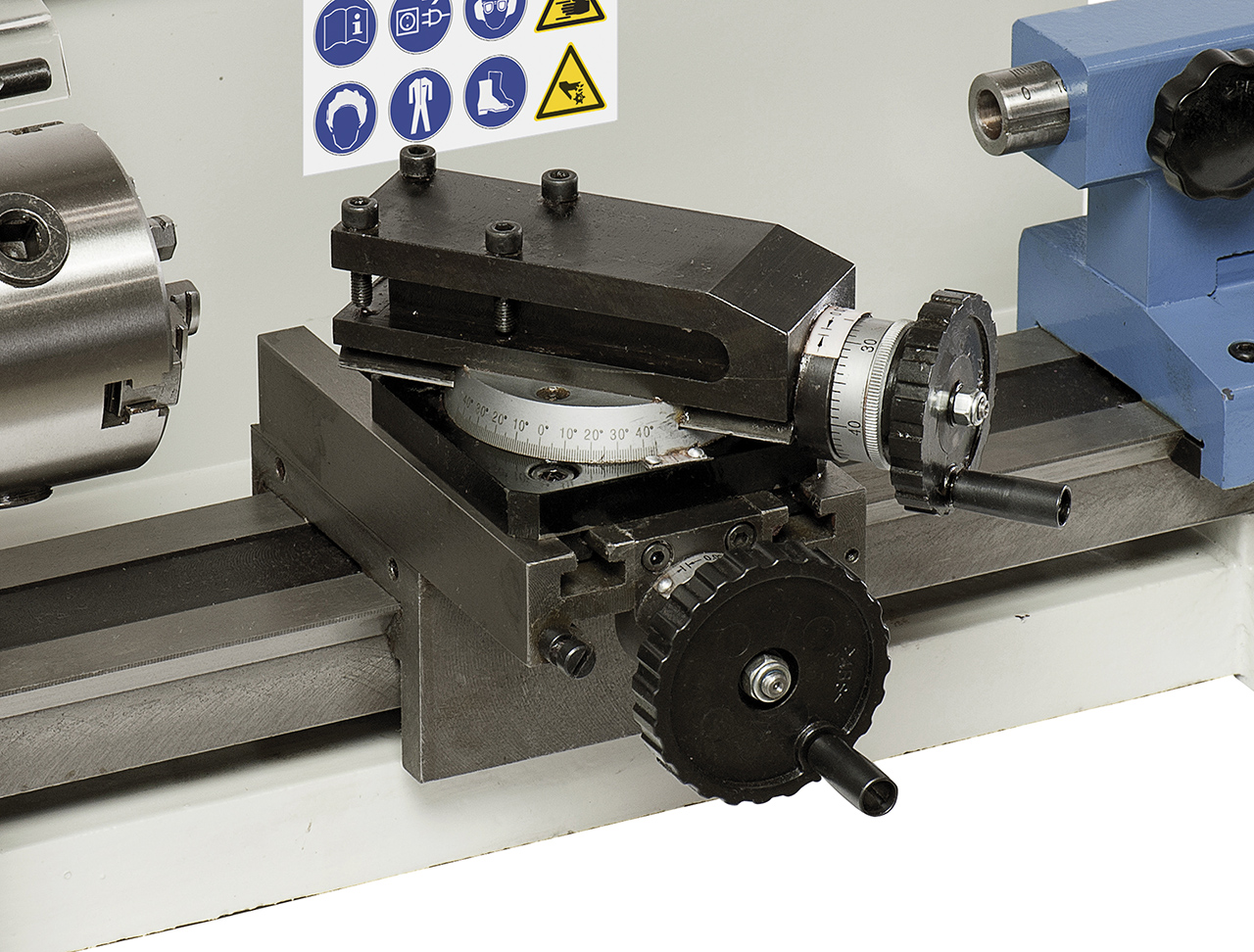

  • Switch for manual or automatic longitudinal feed
  • Guides adjustable by gibs
  • Attractive price-to-performance ratio
  • Spindle bedded with 2 adjustable taper roller bearings
  • Small and compact construction eliminates most vibrations
  • High-quality ball bearings ensure high spindle concentricity (≤ 0,015 mm)

Included Accessories

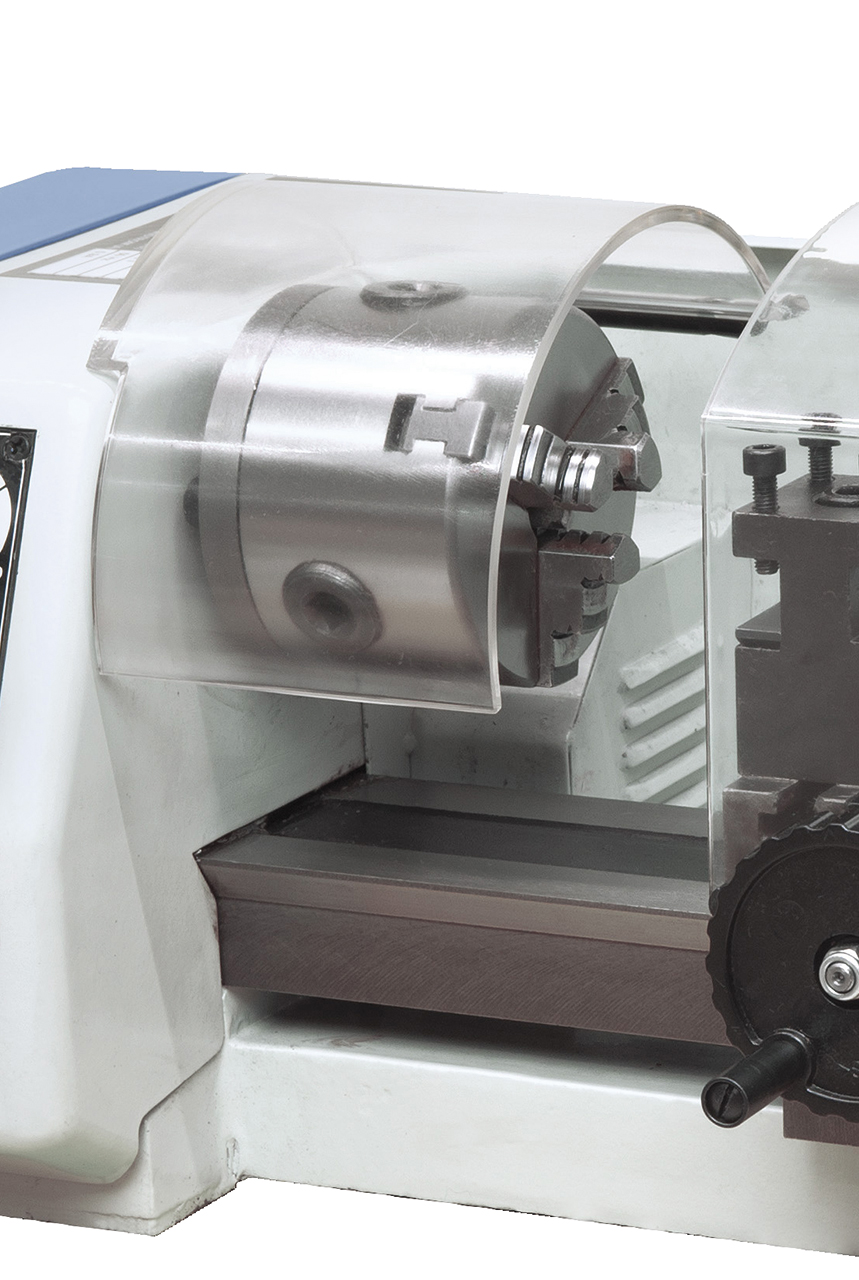

  • 3-jaw chuck 80 mm
  • Chuck guard
  • 2-way tool post holder
  • Live centre MT 1
  • Splash guard
  • Tools

Electrical

Volts:
220-240 Volts
Phase:
Single
AC or DC Supply:
AC
Motor Type:
DC
Hertz:
50 Hz
Watts (Input):
200 Watts
Amps (Input):
0.9 Amps
Starting Amps Approx. :
1.8 Amps
Horse Power (Input):
0.27 hp
Plug Fitted:
Yes
Emergency Stop:
Yes

Lathe

Distance Between Centers mm:
250mm
Center Height mm:
75mm
Swing Over Bed mm:
150m
Spindle Bore/Thread :
10mm
Headstock Taper/Mount:
MT2
Tailstock Taper/Mount:
MT1
Travel of Tailstock Sleeve mm:
25mm
Speed Control:
Stepless
No. of Gears:
10
Speed Range rpm:
100 - 2000 rpm
Speed Indicator:
Selector

General

Warranty (Mths) :
12 Months
Registration Required:
No
Stand Included:
No
Total Weight (Kgs):
23 Kgs
