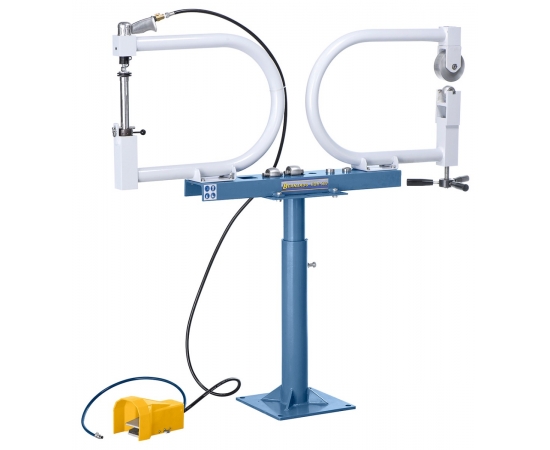

Bernardo KGR 500 English Wheel & Planishing Hammer

  • Including 3 pcs. punching dies for driving and planing sheets of steel, aluminium, brass, copper

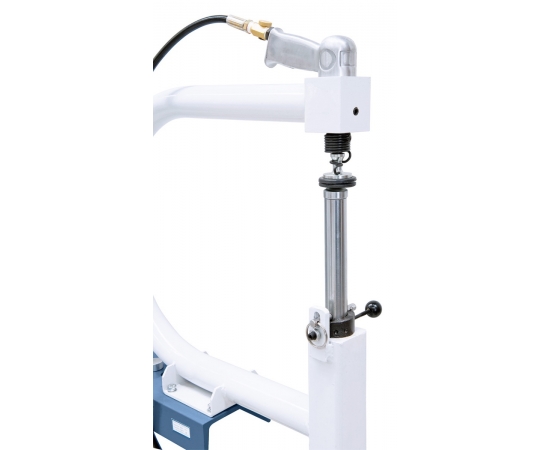

  • Removable polishing hammer for extended application
  • Essential in the classic car restoration, car and body shop
  • Ideal for the production of mudguards, doors, hoods, etc.
  • By handwheel adjustable pressing pressure, thereby a wide variety of radii can be produced
  • Standard with 3 pcs. anvil wheels for the production of various radii

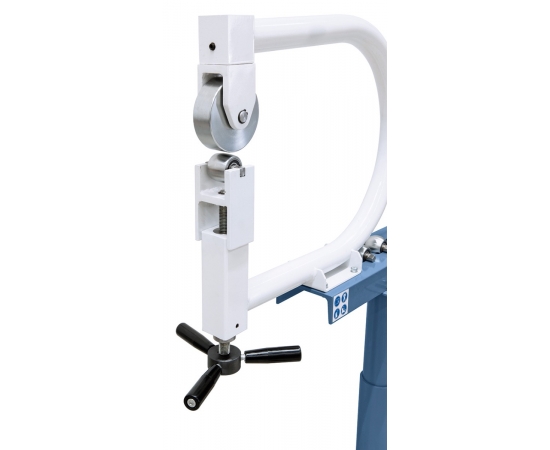

  • The quick-release mechanism on the lower anvil wheel for easy removal of the finished workpiece
  • Including practical holder for the anvil wheels and punching dies directly on the machine body

Included accessories

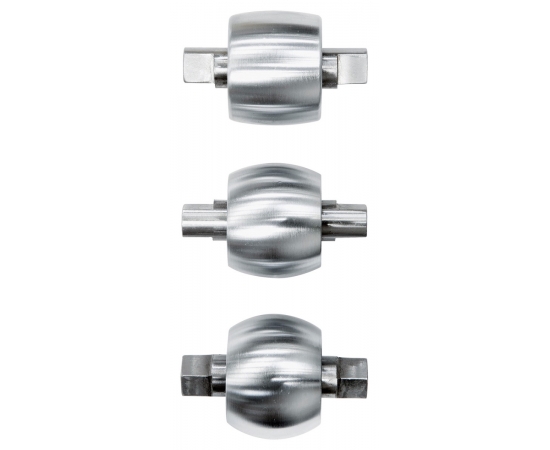

  • 3 pcs. punching die radius 1“ / 2“ / 3“
  • Polishing hammer
  • Foot pedal
  • 3 pcs. anvil wheels
  • 1 pc. rolling wheel

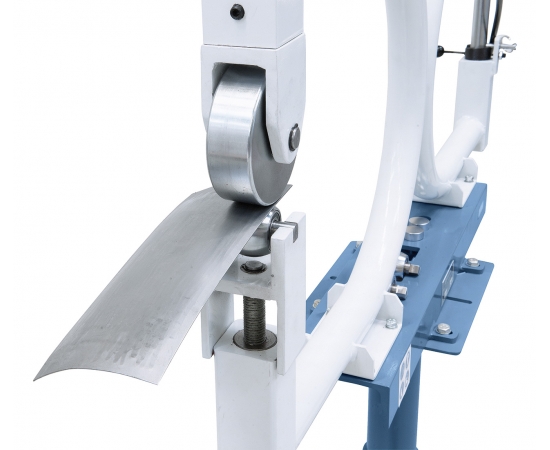

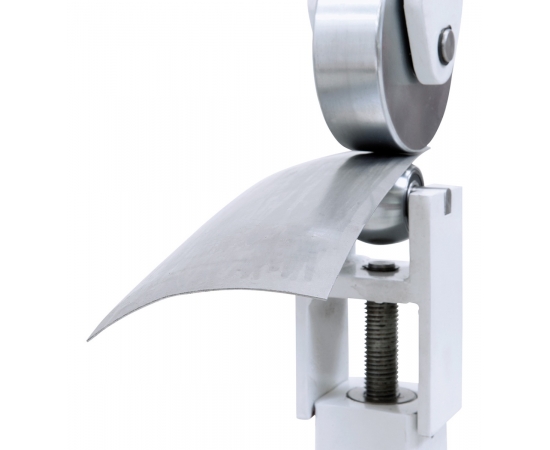

English Wheel
Machine Dimensions
1300 x 320 x 1600mm
Max Aluminium Sheet Thickness
1.0 mm
Throat
500 mm
Internal Height
395
Max Mild Steel Sheet Thickness (400N/mm2)
0.75
Rolling Wheel Dimensions
114 x 38mm
Planishing Hammer
Air Requirement
200l/min
Internal Height
395 mm
Max Air Pressure
6.2 - 8.2 Bar
Max Mild Steel Sheet Thickness (400N/mm2)
2.0
Stroke Frequency
1800 - 4600 mm
Throat
500 mm
General
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
70 Kgs
