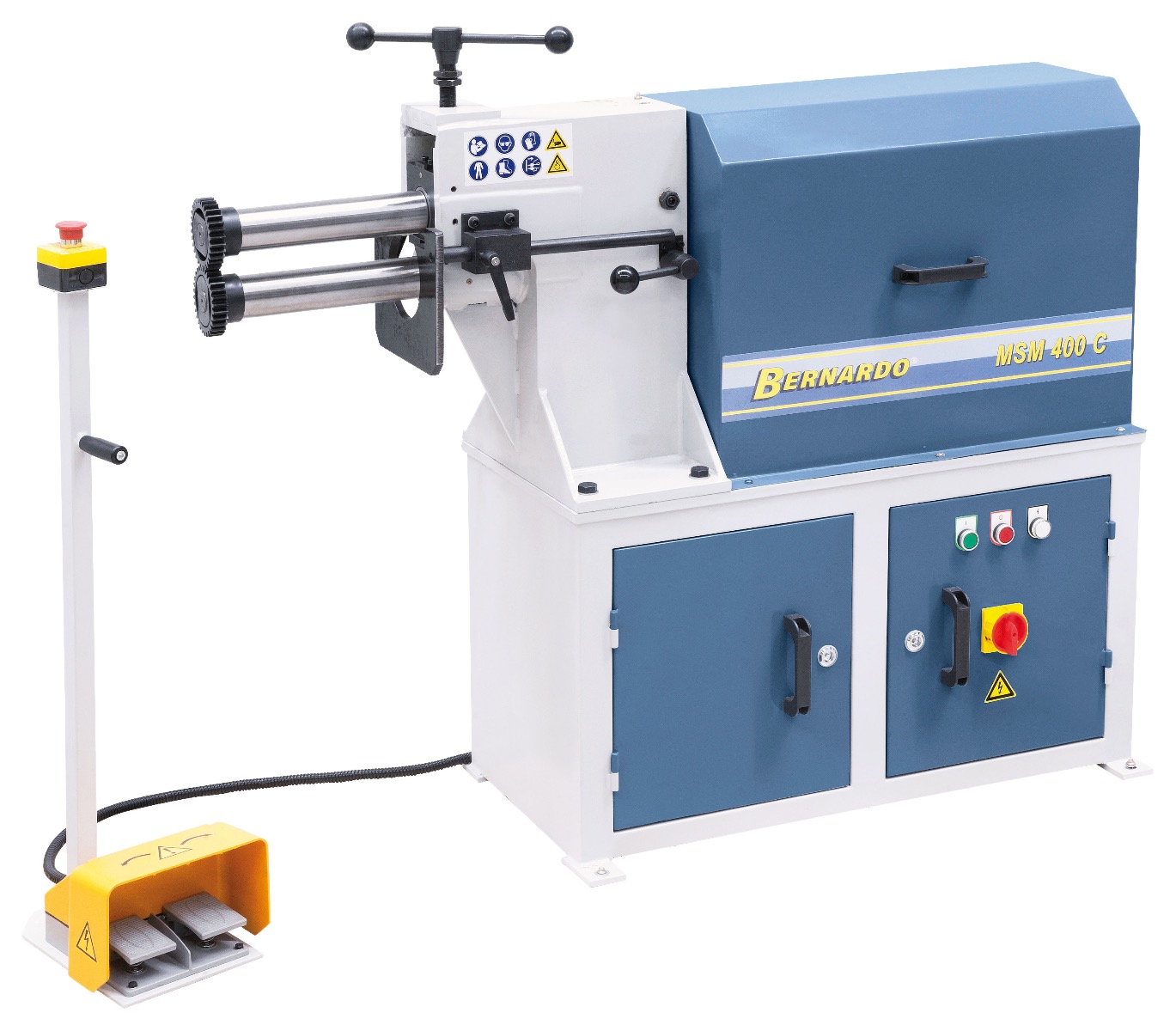

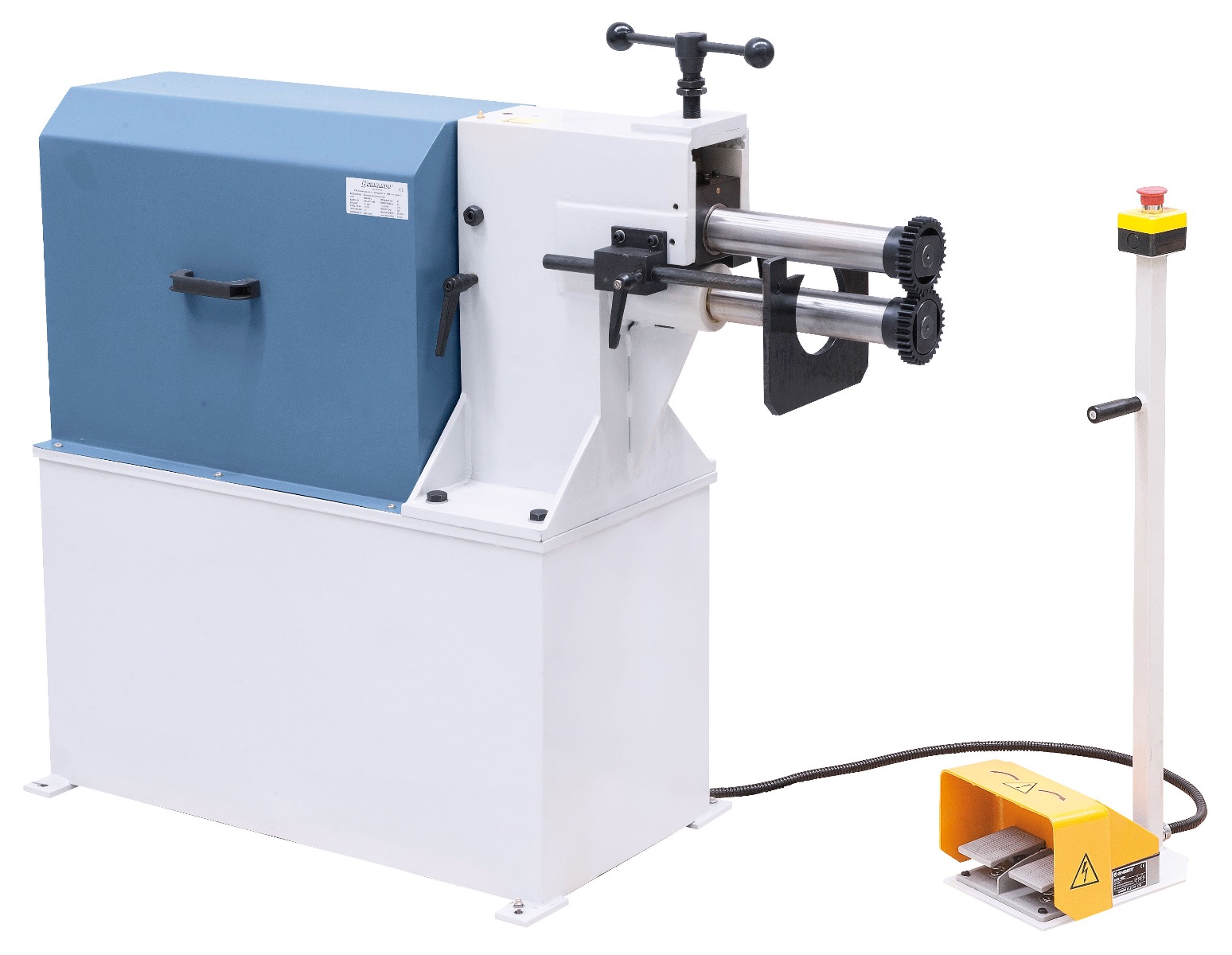

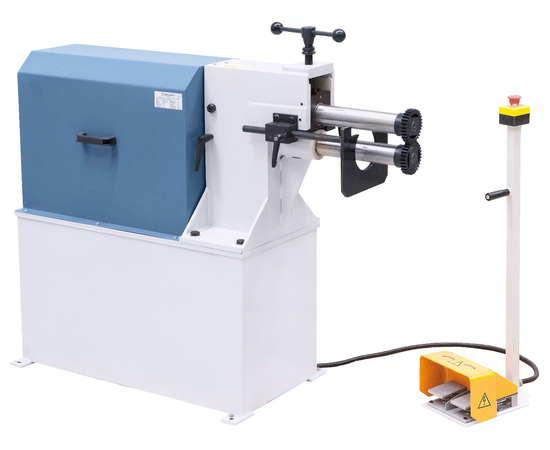

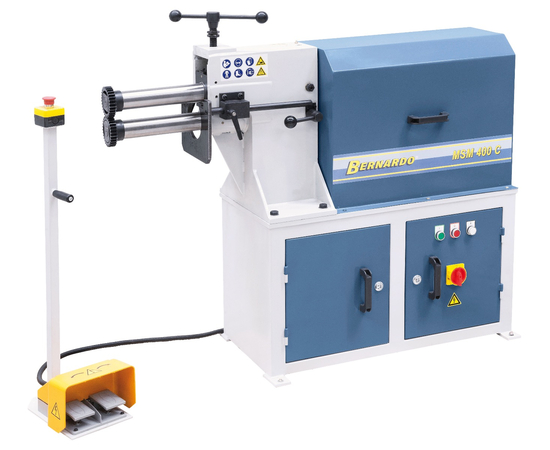

Bernardo MSM 400 C Electric Bead Roller

  • Suitable for sheets up to 2.5 mm thickness in material with a max strength of 400N/mm2

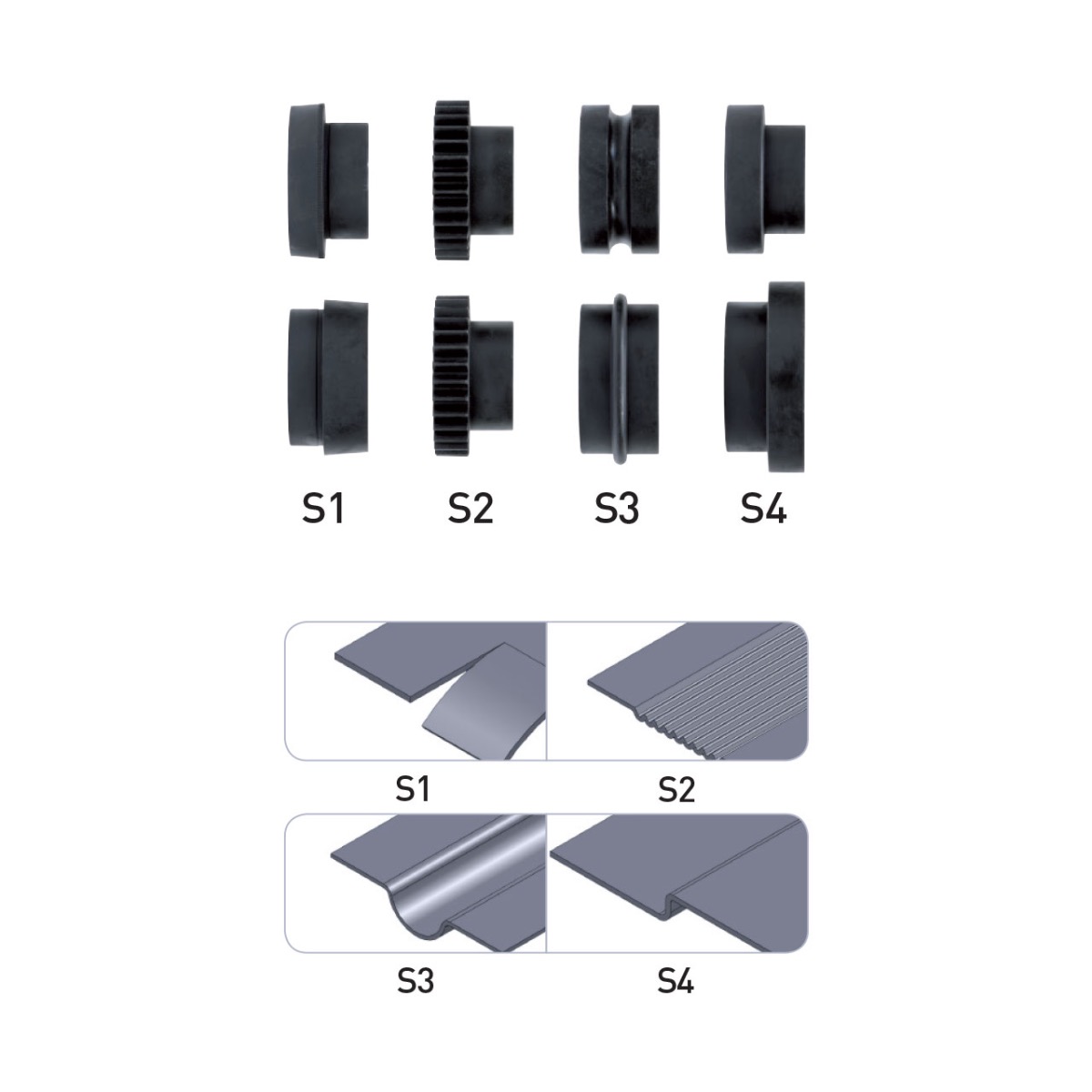

  • 4 pair beading and bordering rolls included
  • Standard with right-left rotation, controlled by foot pedal
  • Large throat for attaching deep-seated beads
  • Adjustable depth stop for precise work
  • For attaching various beads, e.g. connecting beads, stiffening beads

Technical Information

  • Sheet thickness*: 2.5 mm
  • Distance middle of the roll: 90 mm
  • Working depth: 300 mm
  • Shaft diameter: 58 mm
  • Speed: 20 rpm
  • Motor power: 1,5 kW / 400 V
  • Depth: 1420 x 500 x 1150
  • Weight approx.:235 kg
  • * Material strength 400 N/mm²
  • ** with fence

Included accessories:

  • 4 pair beading and bordering rolls
  • Foot pedal with emergency stop
  • Drive motor with brake
  • Material fence
  • Roll wrench

Special Order: Typically 7 - 10 business day delivery.

General
Warranty
12 Mths
Total Weight (Kgs)
235 Kgs
