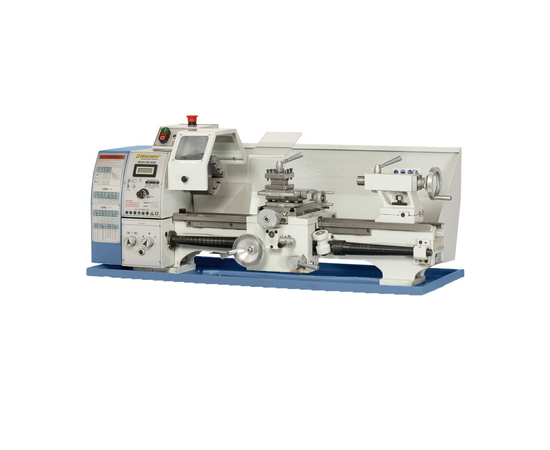

Bernardo Profi 550 WQV Metal Lathe

  • Comes complete with lead screw for thread cutting and automatic longitudinal feed
  • Solid machine bed with inductively hardened and polished guides
  • High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0,009 mm)

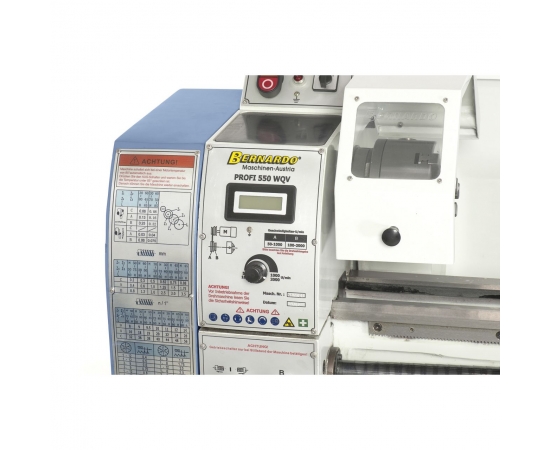

  • Serially equipped with electronic stepless speed setting
  • Temperature monitoring incl. warning light protects the motor against overload

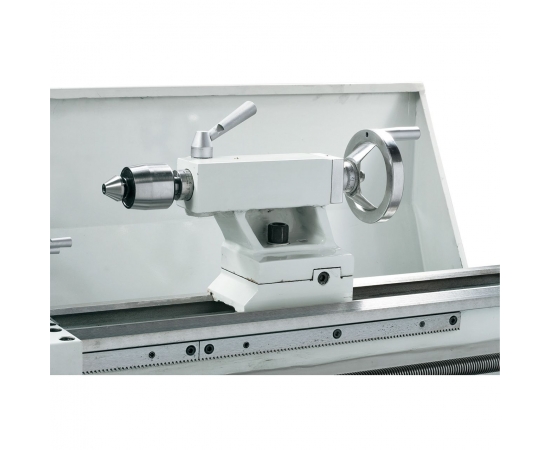

  • Tailstock can be adjusted for taper turning
  • User-friendly arrangement of control elements
  • Guides adjustable via gibs
  • Spindle features 2 adjustable tapered roller bearings (P5-quality)
  • Longitudinal and crossfeed come standard
  • Protective switch with under voltage release

Stand sold seperately.

Electrical
Volts
220 - 240 Volts
Phase
Single
Motor Type
Induction
Hertz
50 Hz
Watts (Input)
1000 Watts
Amps (Input)
4.4 Amps
Starting Amps Approx.
6.8 Amps
Horse Power (Input)
1.38 hp
Plug Fitted
No
Lathe
Distance Between Centers mm
550
Center Height mm
125
Swing Over Bed mm
250
Spindle Bore/Thread
Headstock Taper/Mount
MT 4
Travel of Tailstock Sleeve mm
70
Thread Pitch Range mm
(18) 0,2 - 3,5p/rev
Thread Pitch Range tpi
(21) 8 - 56 threads/1" tpi
Speed Control
Stepless
No. of Gears
2
Speed Range rpm
50 - 1000
Speed Range 2 rpm
100 - 2000
Speed Indicator
Digital Readout
General
Warranty
12 Mths
Registration Required
No
Stand Included
No
Total Weight (Kgs)
120 Kgs
