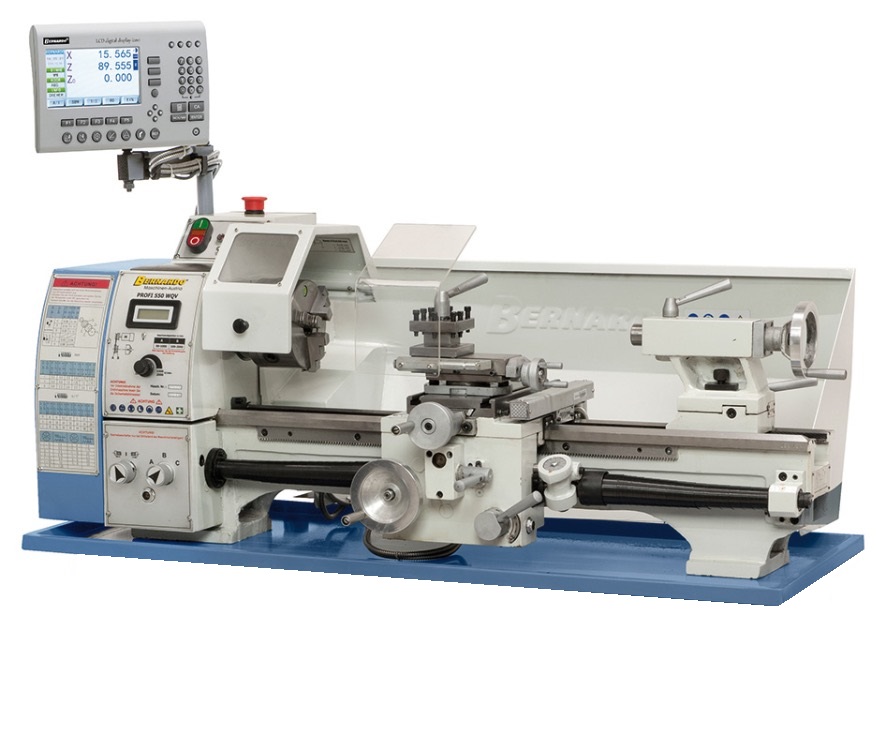

Bernardo Profi 550 WQV Metal Lathe

◆ 220 - 240 Volts - 1000 Watts

◆ Digital Read Out

◆ Between Centres - 550mm

◆ 125 - 2000 RPM

◆ 120 kg

Add to Compare
from
€105.57 / Month
SME
We use SME to arrange financing for our customers business needs. Depending on your requirements and the loan amount, the repayment term can be between 12 and 60 months. Click the "Finance This" button and leave us your details and a loan agent will call you back promptly.

from €105.57 a month over 36 Months
from €143.94 a month over 24 Months
from €260.73 a month over 12 Months

Bernardo Profi 550 WQV Metal Lathe - 230 V - with 2-axis digital readout

  • Comes complete with leadscrew for thread cutting and automatic longitudinal feed
  • Solid machine bed with inductively hardened and polished guides
  • High-quality tapered roller bearings ensure high concentricity of spindle nose (≤ 0.009mm)
  • Serially equipped with electronic stepless speed setting
  • Temperature monitoring incl. warning light protect motor against overload

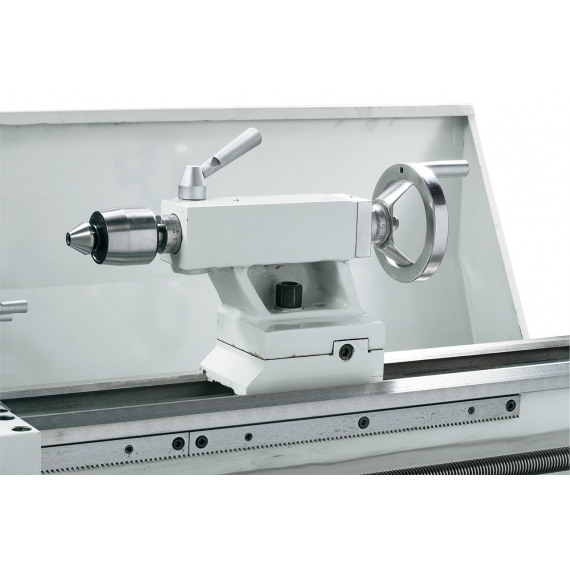

  • Tailstock can be adjusted for taper turning
  • User-friendly arrangement of control elements
  • Guides adjustable via gibs
  • Spindle features 2 adjustable tapered roller bearings (P5-quality)
  • Longitudinal and cross feed come standard
  • Protective switch with undervoltage release

Included Accessories

  • 2-axis digital readout i200 with LCD-display
  • 3-jaw chuck DK11-125 mm
  • Flange 125 mm
  • Cross slide with top support
  • Digital speed display
  • Dead centers
  • Thread dial
  • Change gears
  • 4-way tool post holder
  • Chuck guard
  • Splash guard
  • Leadscrew cover
  • Tools

Pallet delivery charge applies: Typically 1 - 2 day delivery, or please choose the Loughrea pickup option at the checkout and no delivery charge will be applied.

Electrical

Volts:
220-240 Volts
Phase:
Single
AC or DC Supply:
AC
Motor Type:
DC
Hertz:
50 Hz
Watts (Input):
1000 Watts
Amps (Input):
4.5 Amps
Starting Amps Approx. :
9.0 Amps
Horse Power (Input):
1.35 hp
Plug Fitted:
Yes
NVR Switch:
Yes
Emergency Stop:
Yes

Lathe

Distance Between Centers mm:
550mm
Center Height mm:
125mm
Swing Over Bed mm:
250m
Spindle Bore/Thread :
26mm
Headstock Taper/Mount:
MT 4
Tailstock Taper/Mount:
MT2
Travel of Tailstock Sleeve mm:
70mm
Speed Control:
Belt & Varible
No. of Gears:
2
Speed Range rpm:
50 - 1000 rpm
Speed Range 2 rpm:
100 - 2000 rpm
Speed Indicator:
Digital Readout

General

Warranty (Mths) :
12 Months
Registration Required:
No
Stand Included:
No
Total Weight (Kgs):
120 Kgs
