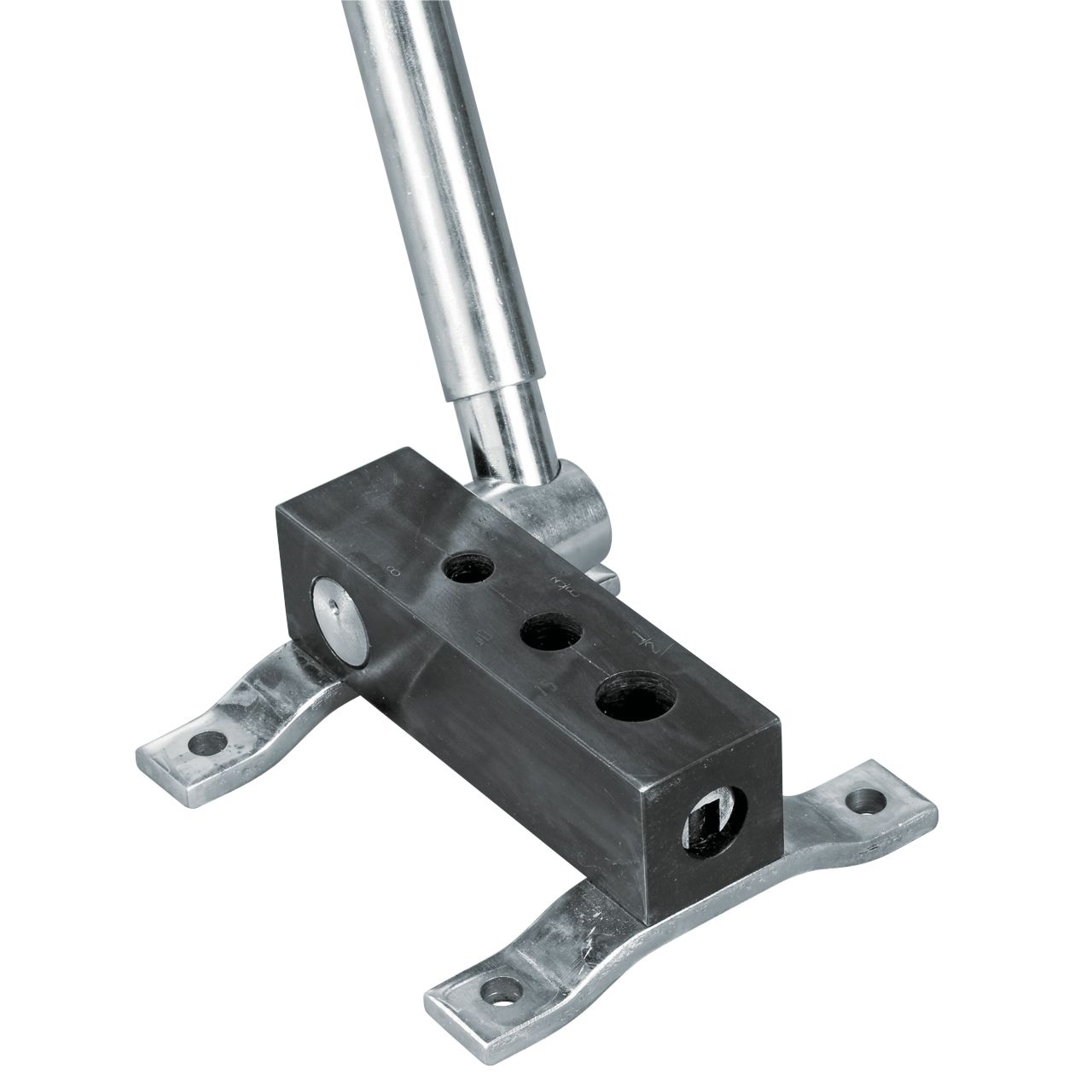

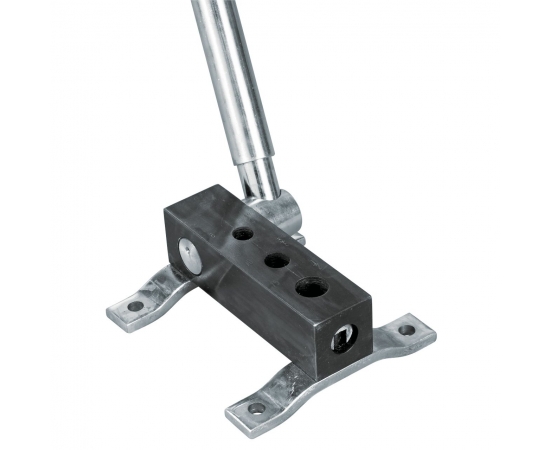

Bernardo RA1 Tube Notcher

  • For notching of steam pipes, stainless steel, gas pipes, NE- and other pipes of up to 3 mm wall thickness

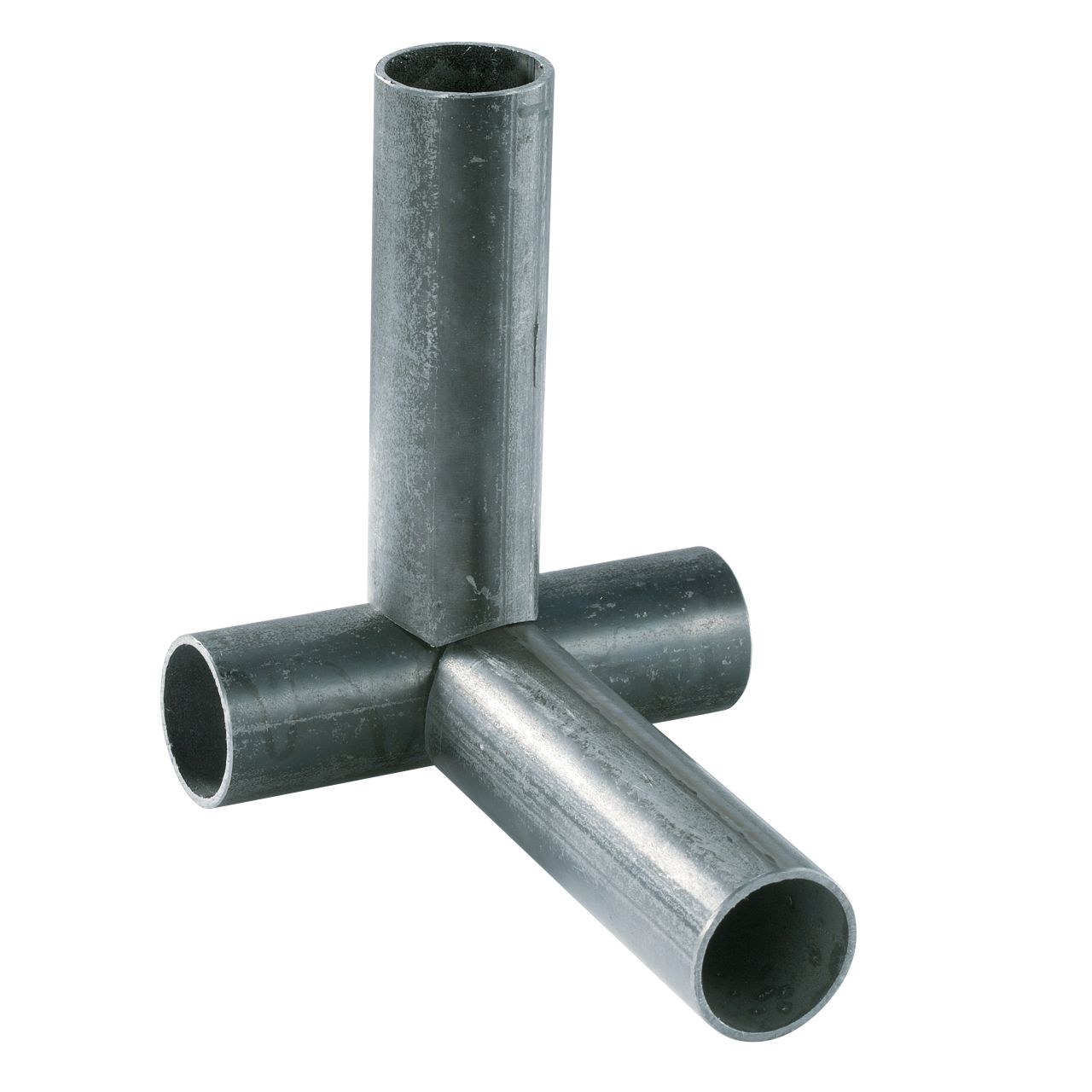

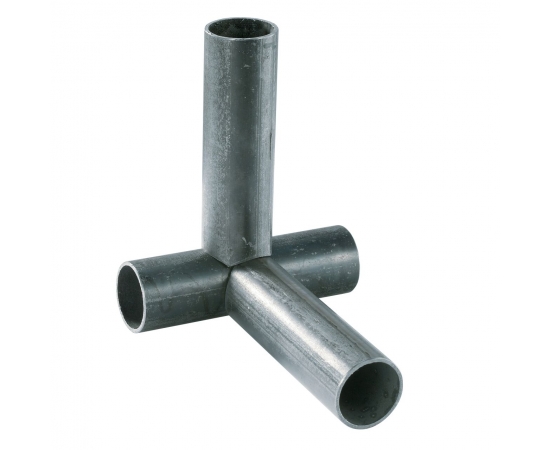

  • For assembly and welding of pipes at the angle of 90°
  • Various pipe diameter combined in one machine
  • High productivity at a low investment
  • Clean edges, no reworking required
  • Low force exerted by the eccentric shaft
  • Ideal for wall mounting
  • Also suitable for double corner joints

Technical specifications

Pipe diameter (outside) 15 / 18 / 23 mm
Wall thickness max.
Aluminium 4,5 mm
Cooper 4,0 mm
Brass 4,0 mm
Mild steel * 3,0 mm
Stainless steel 2,0 mm
Machine dimension (W x D x H) 170 x 180 x 70** mm
Weight approx. 5 kg
* Material strength 400 N/mm²
** without lever
General
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
5 Kgs
