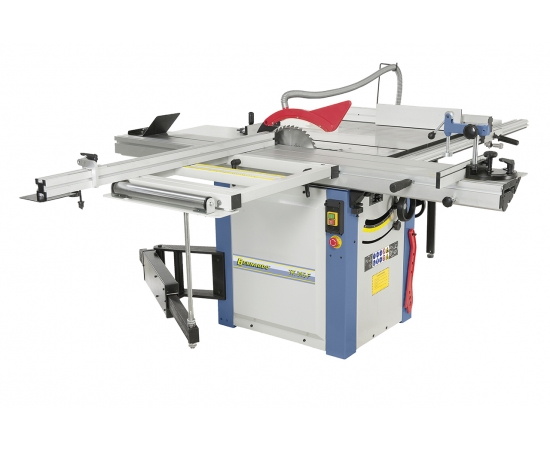

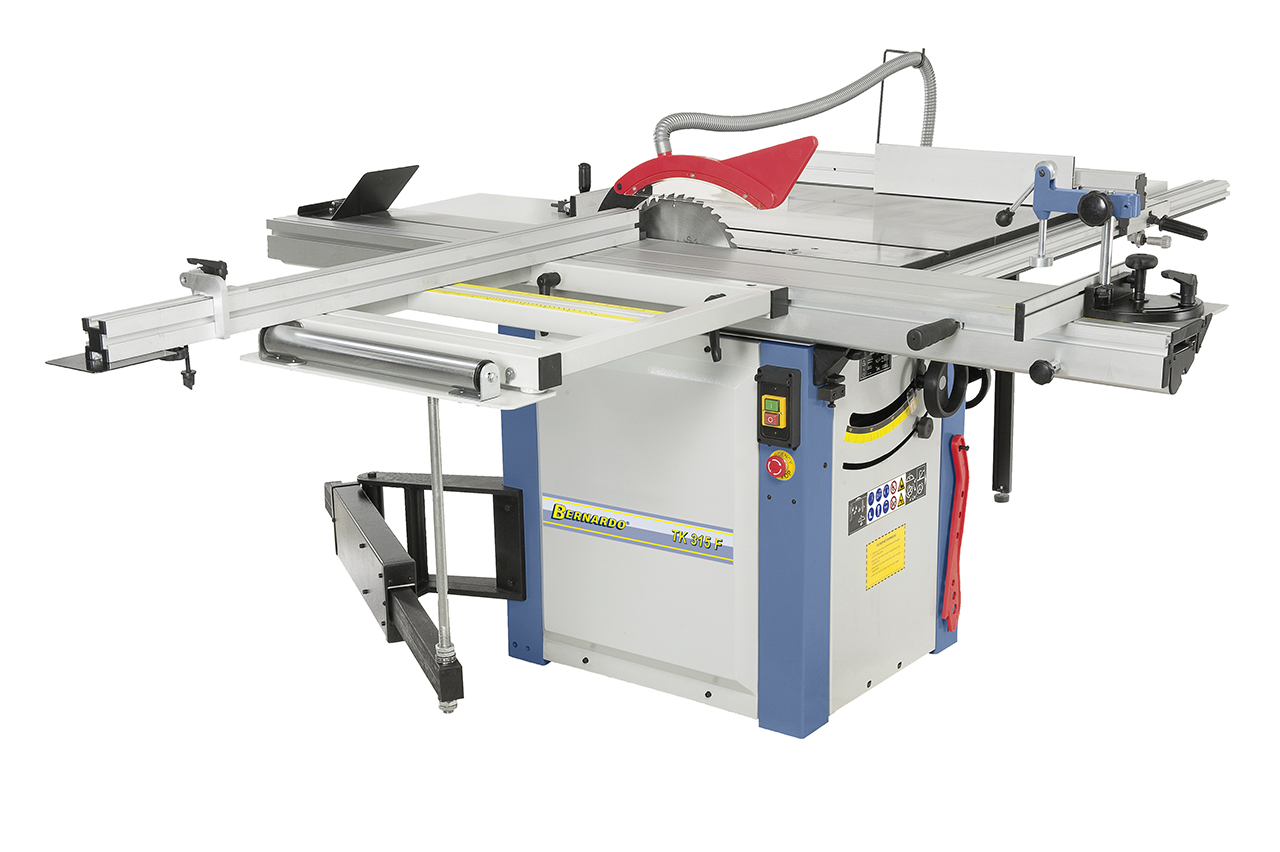

Bernardo TK 315 F Panel Saw w/Scoring Blade - 400 V

  • Solid cast iron table with roller and telescopic arm guarantee high stability
  • Anodized aluminium sliding table

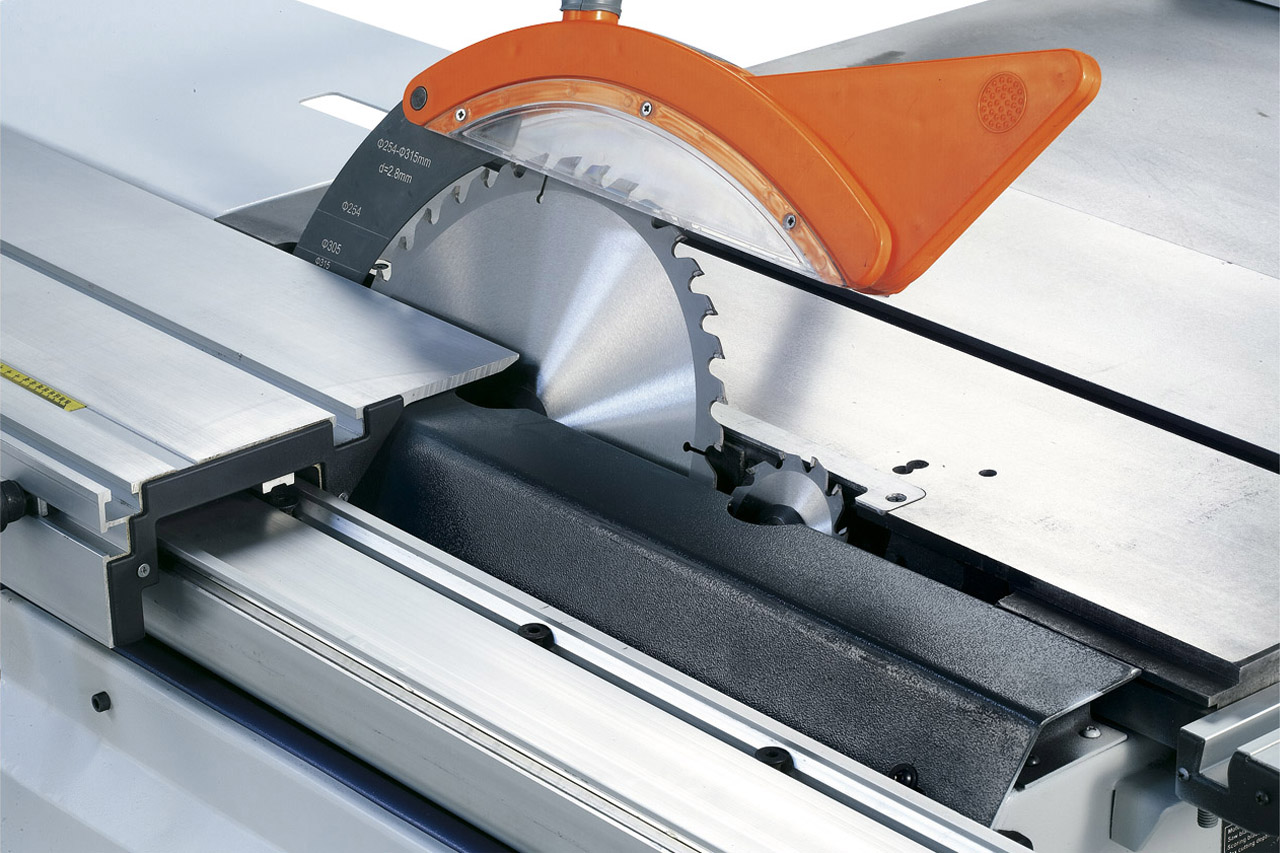

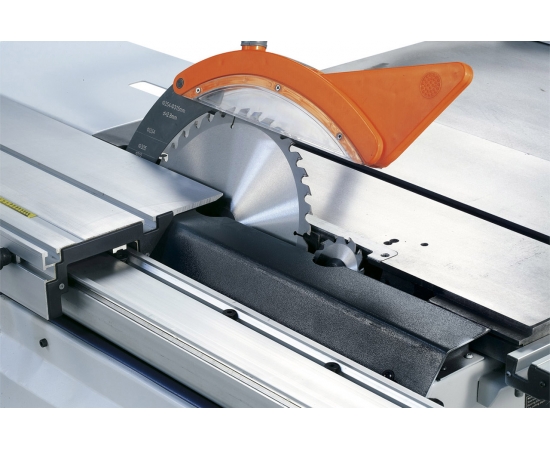

  • Built in scoring blade
  • Powerful drive motor for constant cutting speed, even at a cutting height of 100 mm

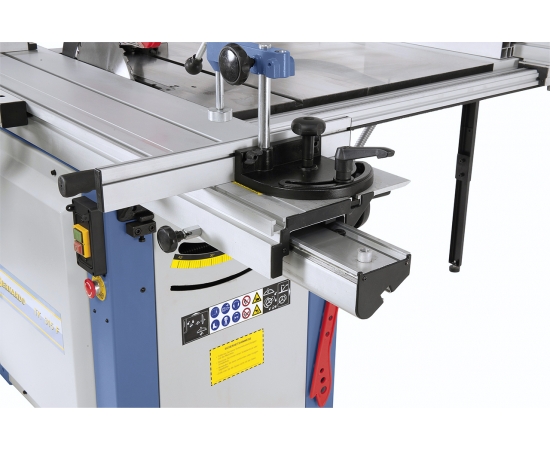

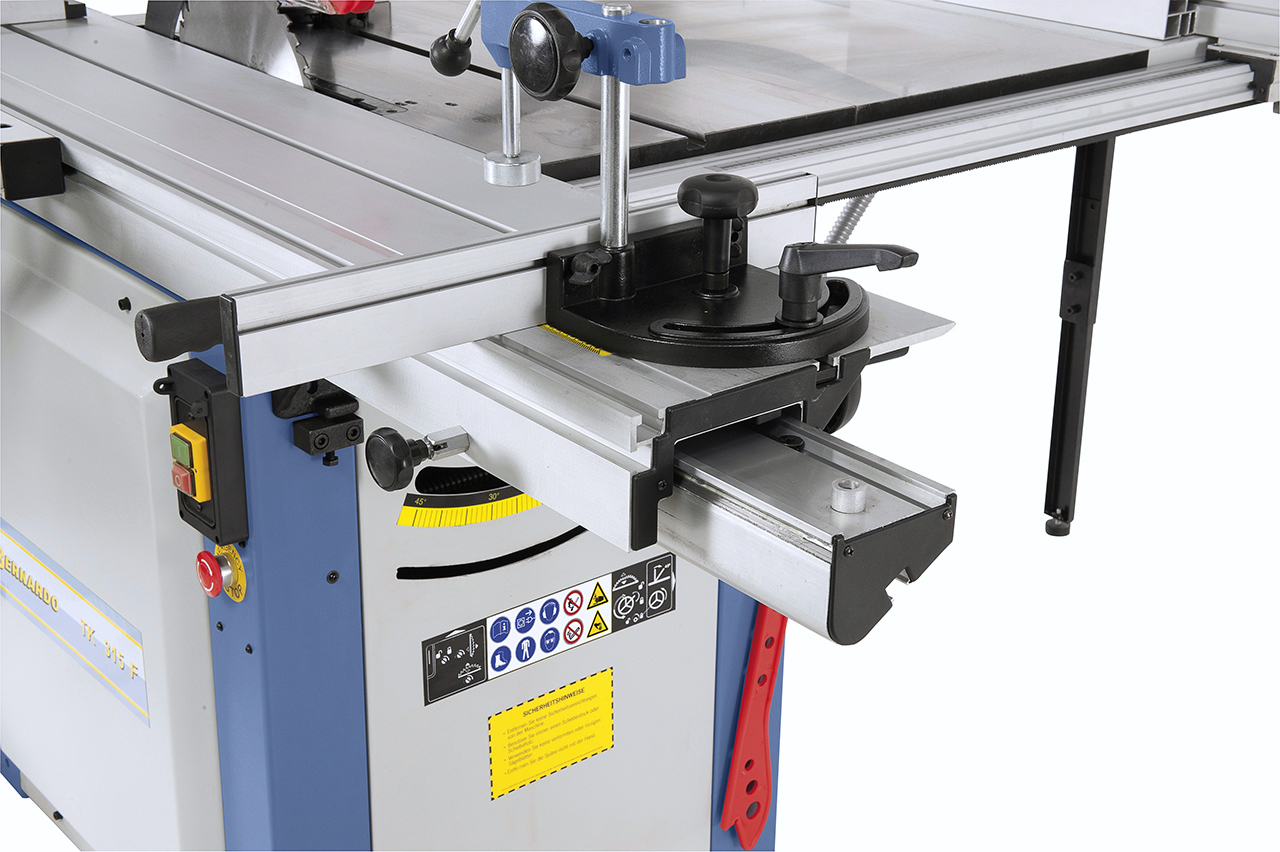

  • Mitre fence and material clamp can be moved along the entire table length
  • Oversize work table and table extensions for cutting width up to 1200 mm come standard

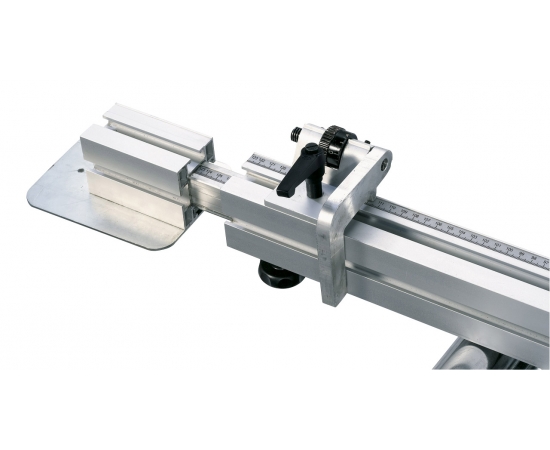

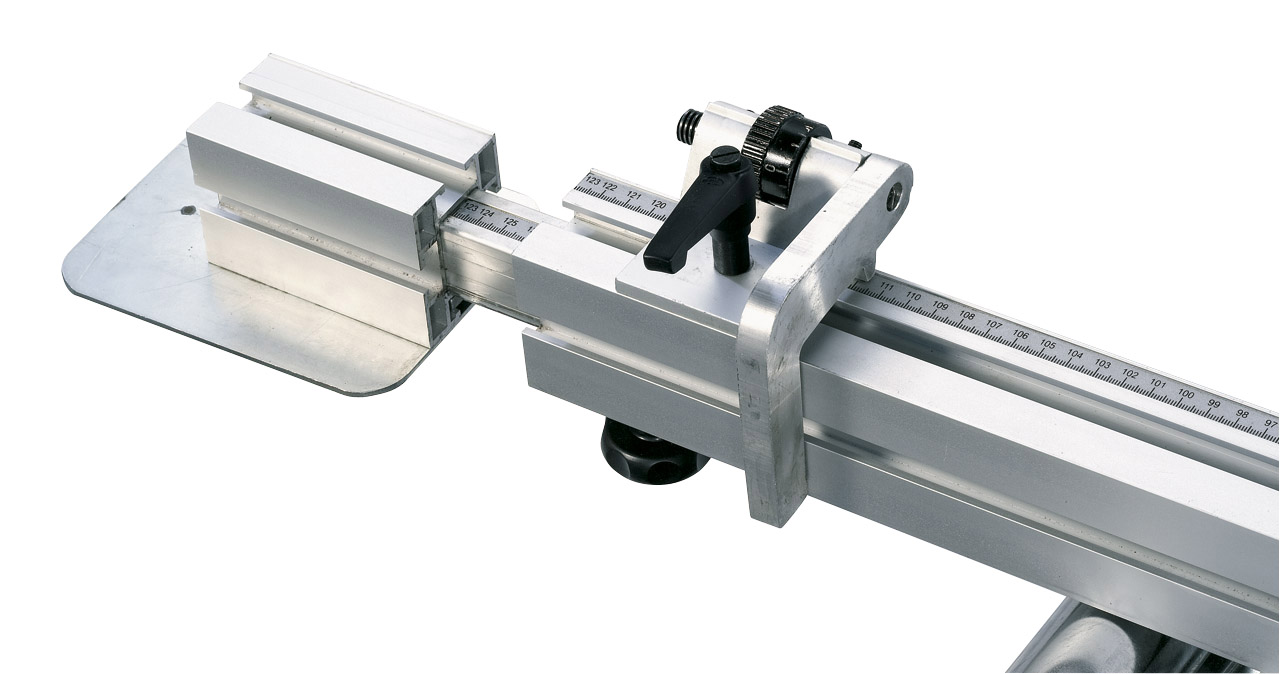

  • Extractable telescopic fence (up to 2260 mm) mountable at front or rear of table, steplessly tiltable from 90º to 45º

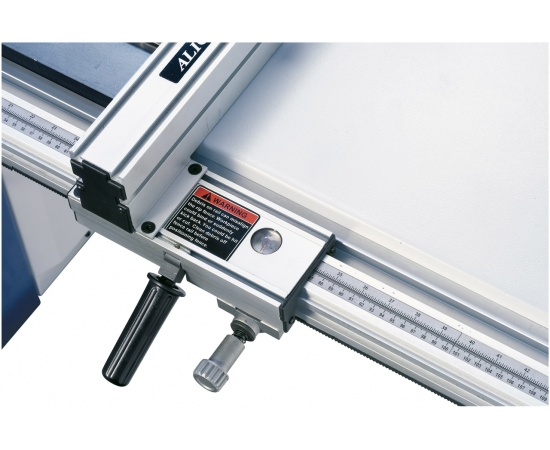

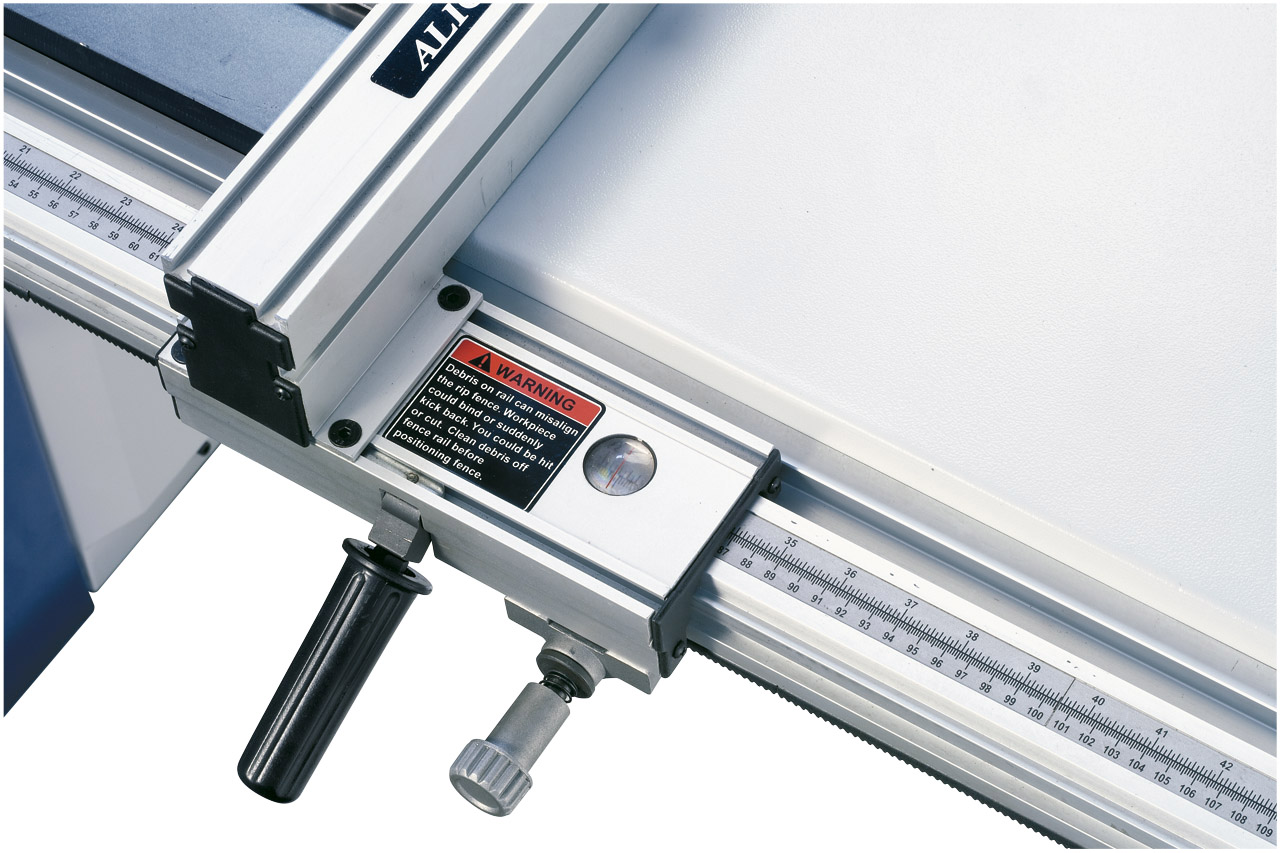

  • Aluminium parallel fence with micrometric fine adjustment and integrated magnifying glass
  • Solid saw unit guarantees precise work, free from vibrations

Included accessories

  • Carbide sawblade 315 x 3,0 x 30 mm / 40T
  • Scoring sawblade 90 x 3,0 x 20 mm / 12T
  • Protective cover with dust extraction outlet
  • Connector tube with Y-piece
  • Mitre fence
  • End stop for repeatable cuts
  • Table extension
  • Table enlargement
  • Extractable telescopic fence
  • Rip fence with built-in micro adjuster
  • Sliding table
  • Push stick
  • Tools

This saw is available in 230V here.

Special Order - 7 - 10 business day delivery

Electrical
Volts
400 Volts
Phase
3 Phase
Hertz
50 Hz
Watts (Input)
4200 Watts
Horse Power (Input)
5.7 hp
RPM
4500 rpm
Motor 2 For
Scoring
Motor 2 RPM
5800
Plug Fitted
No
NVR Switch
Yes
Emergency Stop
Yes
Saw
Saw Blade Diameter (mm)
315 mm
Max Rip Width (mm)
1200mm
Blade Bore (mm)
30 mm
Blade Supplied
Yes
Max. Cutting Height (mm)
100mm
Tilts to
45 °
Cut Depth at Max Tilt
80mm
Scoring Blade
Yes
General
Max Sliding Table Cut (mm)
2000mm
Sliding Table
Yes
Sliding Table Width (mm)
440mm
Width w/Extensions & Sliding Table (mm)
750mm
Table Width mm
825mm
Table Depth mm
800mm
Table Height mm
870mm
Dust Extraction Port mm
100 mm
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
260 Kgs
