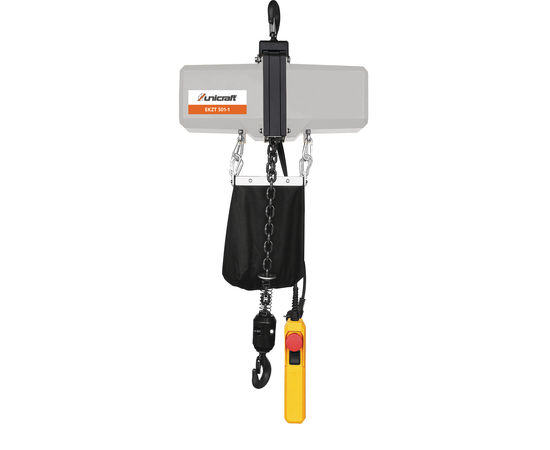

Unicraft EKZT 501-1 Chain Hoist

This chain hoist from Unicraft with a 500 kg lifting capacity and a 3.0m lift height is a step up from a wire rope hoist. Designed for light to medium duty work rate, its installation features the advantage of the chain return point being constant under the suspension hook, ensuring minimal maintenance needs and improved efficiency. thus allowing it to be hung from a beam clamp or beam roller trolley without any stabilization. The wired remote control cable is 1.6m, and the power cable is 300mm and fitted with a 13 amp plug for electric connectivity. An extension lead will be required. A limit switch turns off the hoist at chain full retraction to prevent motor damage.

  • Suspension of the 230v electric chain hoist by means of hook for easy installation
  • Overload protection by friction clutch for easier maintenance
  • Integrated limit switch
  • Safe storage of the chain through integrated unicraft ekzt 501-1 technology
  • Chain hoist control via a wired electric remote control for enhanced efficiency



1. What is the maximum lifting capacity of the Unicraft EKZT 501-1 chain hoist?

The Unicraft EKZT 501-1 chain hoist boasts a robust lifting capacity of 500 kg, making it ideal for light to medium duty tasks.

2. Can the Unicraft EKZT 501-1 be easily installed?

Yes, the hoist is designed for easy installation with a suspension hook, allowing it to be quickly set up on a beam clamp or beam roller trolley.

3. What are the power requirements for this chain hoist?

The Unicraft EKZT 501-1 is powered by a 230v electric supply. It comes with a 300mm power cable fitted with a 13 amp plug. An extension lead will be necessary for operation.

Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50 Hz
Watts (Input)
540 Watts
Horse Power (Input)
0.75 hp
Plug Fitted
Yes
Emergency Stop
Yes
Electric Hoist
Load Capacity (Ton)
0.5 Ton
Lifting Height (m)
3.0m
Lifting Speed (m/min)
2.8 m/min
Number of Chains
1
Remote Cable Lenght (m)
1.6m
General
Protection/Insulation Class
IP 54
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
18 Kgs
Find similar

Unicraft EKZT-301-1 501-1 Chain Hoist Manual Open
