949.00
(Including VAT)
Out of stock
20 days
Price in points: 949 points
Reward points: 19 points
Klarna Interest Free Payments

For purchases between €35 and €1000, you will be offered the option to pay in 3 interest free instalments through Klarna at checkout. One third today, one third in 30 days and the final one third in 60 days.

Delivery
Payment options
Good to know
For the ADH 305 Planer
Notify Me When Back in Stock Notify Me When Back in Stock

We (ieDepot) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to [email protected].

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

  • VAT
  • Delivery Costs
  • Returns

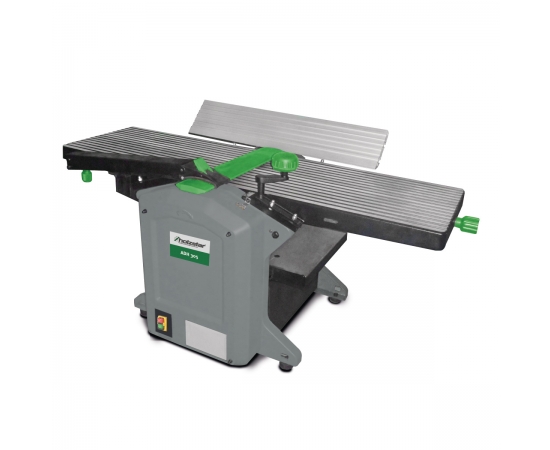

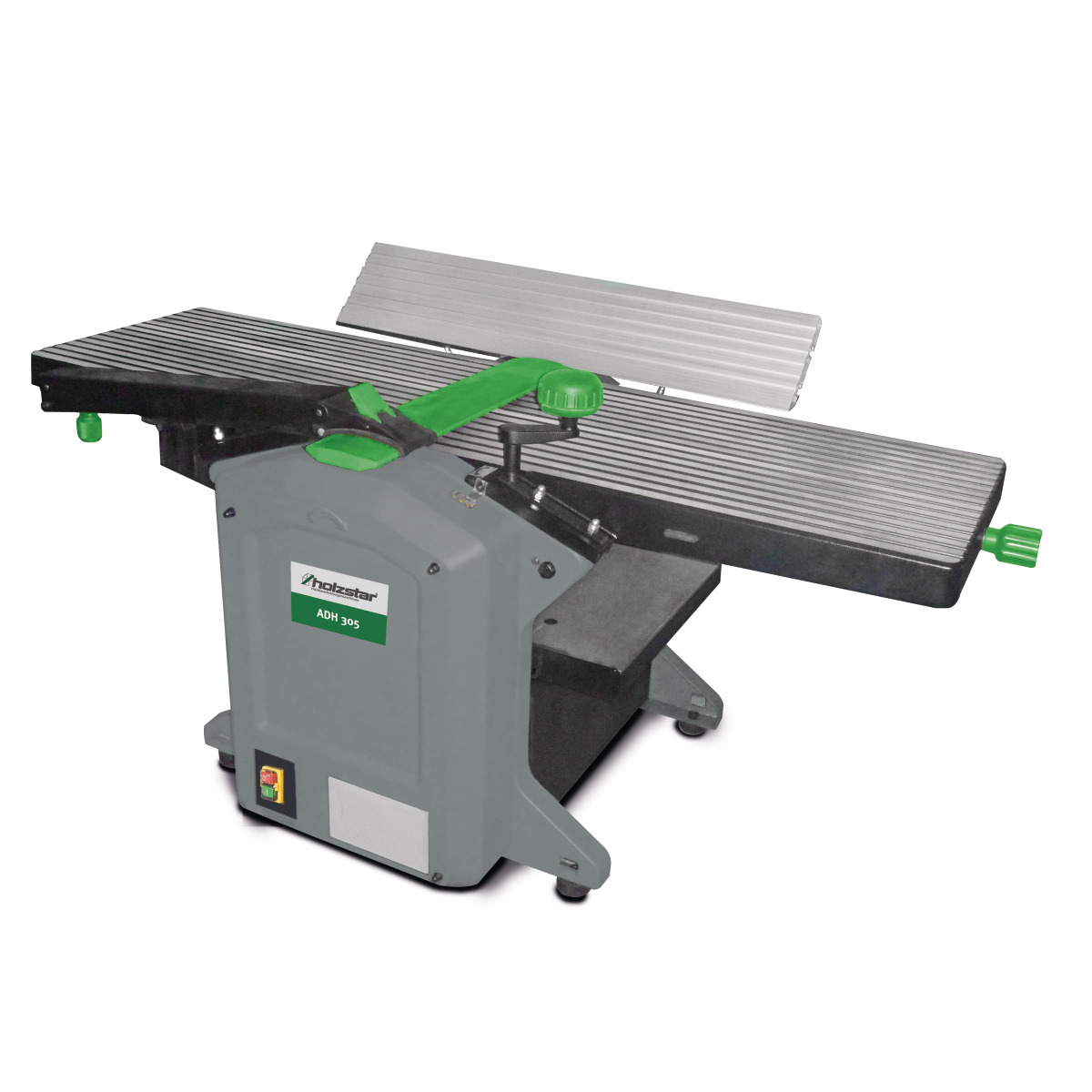

Holzstar ADH 305 Jointing Planer Thicknesser & Jointer

This compact thicknesser/planer from Holzstar is perfect for angle joints and precise surface planing of solid wood boards, planks and slats. Fitted with a powerful 2hp motor. Easy and precise adjustment of the chip removal in precision thicknessing of up to 2mm. Automatic workpiece feed from a geared intake roller which gives even and constant feeding of the wood. The intake and discharge rollers are rubberized to prevent marking during thicknessing. Pivotable aluminium jointing stop from 0° to 45°. The jointing table is constructed from a milled cast aluminium. The blade shaft has 2 HSS planing knives. Includes integrated extraction unit and chip bag. This thicknesser planer comes with blades and additional blades are listed seperately.

Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50 Hz
Watts (Input)
1800 Watts
Horse Power (Input)
2.5 hp
RPM
9500 rpm
Plug Fitted
No
NVR Switch
Yes
Emergency Stop
Yes
Thicknesser/Surfacer
Max Planing Width mm
305 mm
Thicknesser Bed Length mm
500mm
Min./Max. Material Thickness mm
6/160mm
Max Thicknessing Cut mm
2mm
Feed speed
7 m/minute
Cuts per Minute
19000
No of Knifes/Blades
Planer Shaft Diameter mm
50
Surfacing Bed Length mm
1075mm
Max Surfacing Cut mm
2mm
Planer Fence mm
610mm
Planer Fence Tilt
90° - 45°
General
Dust Extraction Port mm
100 mm
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
42 Kgs
Find similar

ADH 200, 250 & 305 Planer Manual Open

ADH 305 Planer Schematic Open

Sort by:
5
Got this machine few months ago so thought I would give it time before a review.. All in all its a great machine.. Straight out of the box the table...
0 0
5
Bought this planer and have to say great job.. Leaves wood with very little planer blade marks
0 0
Write a review
Are there any special tips for planer & thicknessers?

Yes. there are five very important issues to remember. These tips will help you get long and satisfactory use of your machine. The first is that the beds of both planers and thicknessers must be cleaned and degreased thoroughly before the first operation and then have a protective coat applied to these surfaces such as wax or other machine protection coating. These surfaces should offer little resistance to the movement of the wood passing over it. This will require regular maintenance and application over the life of the machine. The second is that there must be adequate dust collection at all times and that the feed mechanisms and other areas prone to dust and chip build-up must be blown off regularly. The third issue is that particularly during their early operation their drive belts must be inspected and re-tensioned as required. Number four would be not to overload the machine by attempting to plane too much in one pass. The final piece of advice we would offer is that sharp blades are critical to the satisfactory operation of your planer and should be changed as required.
