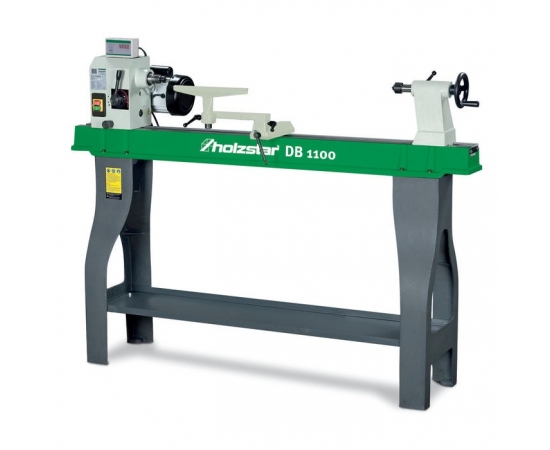

Holzstar DB 1100 Wood Lathe with Swivel Head

  • The Holzstar DB 1100 Wood Lathe with Swivel Head is designed for precision and smooth operation, featuring a robust gray cast iron machine bed, tail stock, and head stock, making it an ideal choice for any craftsman working with wood turning.
  • Its wide, easily adjustable turning tool rest enhances versatility, while the headstock's ability to rotate to 90° and 180° facilitates efficient bowl turning, and the tailstock provides additional support for longer workpieces.
  • The tailstock, equipped with a 50 mm stroke and a live centre spur with bearing, also includes a quill with a drill hole for centre drilling.

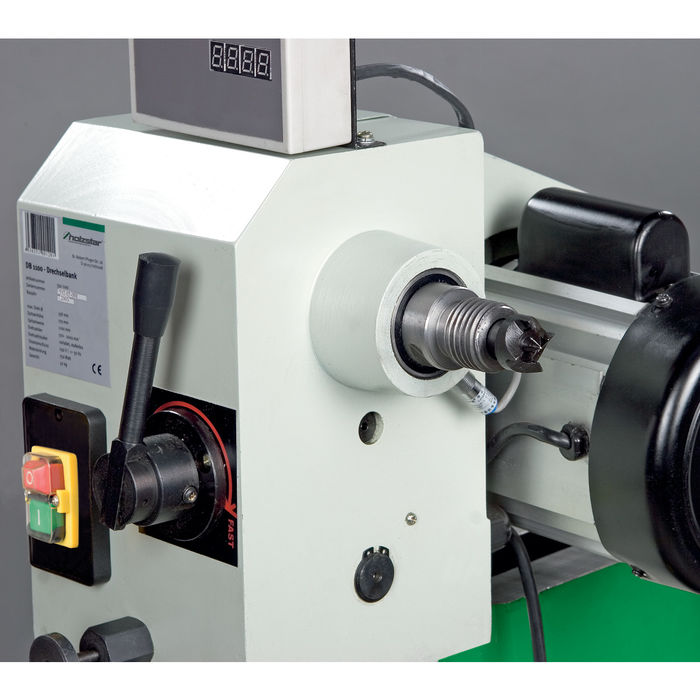

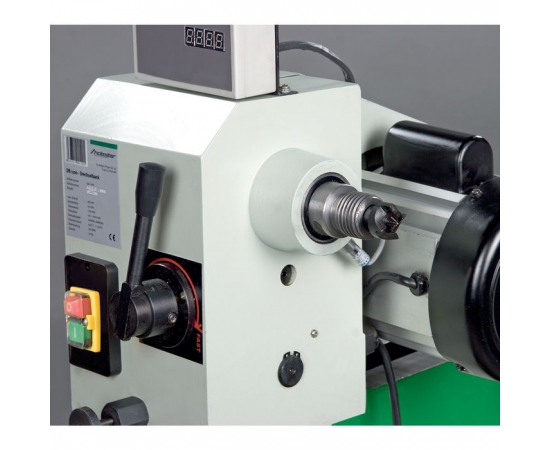

  • Users can adjust the speed between 500 - 2000 rpm, easily monitored via the digital display. For added safety and precision during turning operations, the lathe includes a lockable emergency stop switch and tailstock.

How to maintain the Holzstar DB 1100?

Caring for your wood lathe invites creativity and precision.

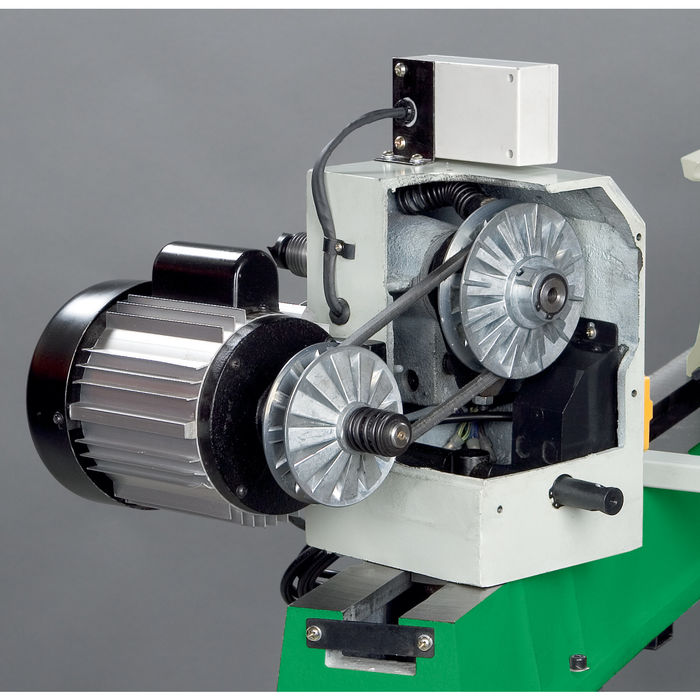

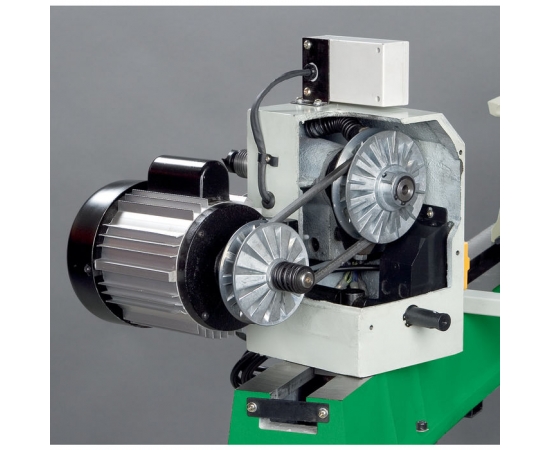

Start by regularly cleaning the work area to prevent dust accumulation, which could hinder performance. Lubricate the key moving parts to ensure smooth operation and reduce wear over time. Consistently check the belt condition; any fraying should prompt immediate replacement to avoid damage during operation.

Regular inspections boost the lathe’s longevity.

Keep tools and attachments sharpened to maintain optimal cutting performance, whilst ensuring personal safety gear is always worn. Clamp workpieces securely, thereby guaranteeing stability and precision.



Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50 Hz
Watts (Input)
750 Watts
Horse Power (Input)
1 hp
RPM
2200 rpm
Plug Fitted
Yes
NVR Switch
Yes
Emergency Stop
Yes
Lathe
Distance Between Centers mm
1100
Center Height mm
179
Swing Over Bed mm
358
Spindle Bore/Thread
M33 x 3.5mm
Headstock Taper/Mount
MT2
Tailstock Taper/Mount
MT2
Travel of Tailstock Sleeve mm
50
Speed Control
Lever
No. of Gears
10
Speed Range rpm
500-2000
Speed Indicator
Digital Readout
General
Warranty
12 Mths
Registration Required
No
Stand Included
Yes
Total Weight (Kgs)
92 Kgs
Find similar

Holzstar DB 1100 Wood Lathe Manual Open
