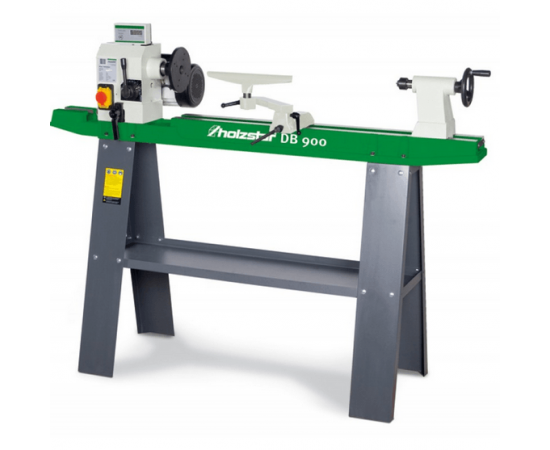

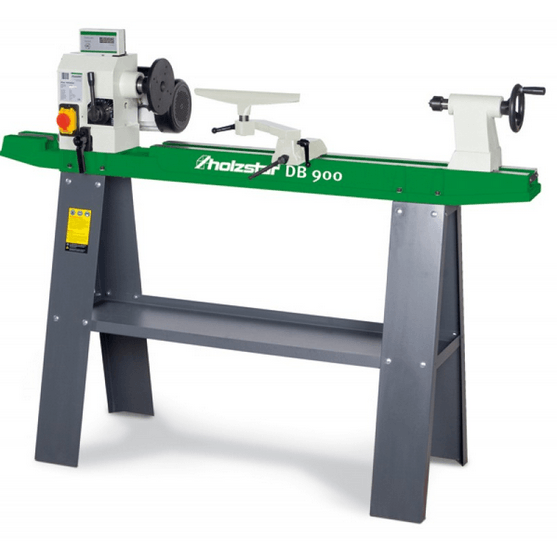

Holzstar DB 900 Wood Lathe

The Holzstar DB 900 wood lathe is an exceptional piece of equipment, crafted with a cast iron machine bed to ensure smooth and precise operation. Both the tailstock and headstock are constructed from cast iron, enhancing durability and stability.

The lathe features a wide, easily adjustable tool support for turning, and the headstock is designed to swivel 180° with a convenient quick-release lever.

The tailstock offers a 50mm stroke and includes a travelling centre punch, along with a quill equipped with a drill hole for machining workpieces.

The speed is adjustable between 500 and 2000 rpm, and it can be monitored via the digital display. Additionally, the lathe is equipped with a lockable emergency stop switch for enhanced safety.

Features

  • Torsionally rigid gray cast iron machine bed for smooth running, precision, and durability
  • Tailstock and headstock also made of sturdy gray cast iron, showcasing excellent craftsmanship
  • Wide, easily adjustable turning steel support
  • Tailstock with quick release lever and handwheel
  • Tailstock (stroke 50 mm) as standard with revolving center point
  • Tailstock quill with bore for machining long workpieces
  • Variable speed regulation from 500 - 2000 min-1 with digital speed display
  • The headstock can be rotated by 180°
  • Ideal for turning large diameter
Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50 Hz
Watts (Input)
550 Watts
Horse Power (Input)
0.75 hp
RPM
2000 rpm
Plug Fitted
Yes
NVR Switch
Yes
Emergency Stop
Yes
Lathe
Distance Between Centers mm
900
Center Height mm
153
Swing Over Bed mm
306
Spindle Bore/Thread
M33 x 3.5mm
Headstock Taper/Mount
MT2
Tailstock Taper/Mount
MT2
Travel of Tailstock Sleeve mm
50
Speed Control
Lever
No. of Gears
10
Speed Range rpm
500-2000
Speed Indicator
Digital Readout
General
Warranty
12 Mths
Registration Required
No
Stand Included
Yes
Total Weight (Kgs)
80 Kgs
