For the DH 330 Thicknesser
DH 330 Replacement Planer Blades
49.00 (Including VAT)
+
Heavy Duty Machine Stand
99.00 (Including VAT)
+
  • VAT
  • Delivery Costs
  • Returns

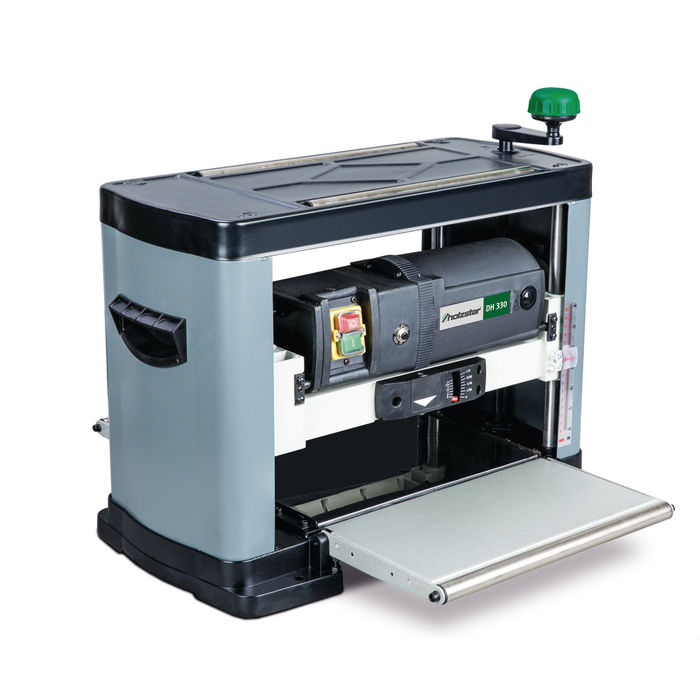

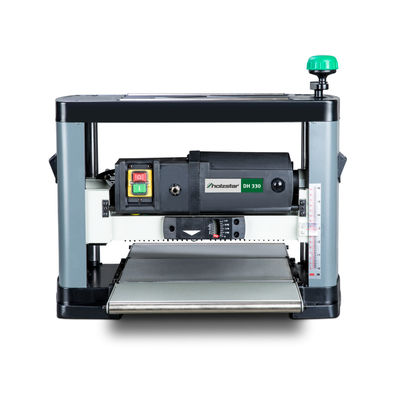

Holzstar DH 330 Planer Thicknesser

  • 230 volt - 1500 watts
  • Ideal for mobile use thanks to it's small, lightweight and compact design
  • Robust welded steel design with stable cast worktop
  • For planing solid wood

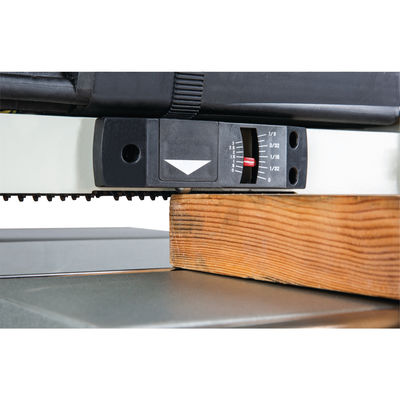

  • Easy and precise adjustment of material removal depth with a mechanical display
  • Powerful motor with overcurrent protection
  • NVR switch for restart safeguard
  • Fold-away feed and discharge tables with rollers for longer workpieces
  • Integrated extraction funnel Ø 58 mm
  • Extraction adapter to Ø 100 mm included with planer
  • Four 10 mm Ø holes in planer base for fastening to workbenches
  • Fitted with 3 pin UK/IRL plug.
  • Comes fitted with blades
Electrical
Volts:
220-240 Volts
Phase:
Single
AC or DC Supply:
AC
Motor Type:
Induction
Hertz:
50 Hz
Watts (Input):
1500 Watts
Amps (Input):
7 Amps
Starting Amps Approx.
:
13 Amps
Horse Power (Input):
2 hp
RPM:
8500 rpm
Plug Fitted:
Yes
NVR Switch:
Yes
Emergency Stop:
Yes
Thicknesser/Surfacer
Max Planing Width mm:
330mm
Thicknesser Bed Length mm:
235mm
Min./Max. Material Thickness mm:
6-152mm
Max Thicknessing Cut mm:
2.8mm
Feed speed
:
6m/minute
Cuts per Minute :
17000
No of Knifes/Blades:
2
Planer Shaft Diameter mm:
50
General
Dust Extraction Port mm:
52.5mm
Warranty (Mths)
:
12 Months
Registration Required:
No
Total Weight (Kgs):
34 Kgs

Holzstar DH 330 Manual Open

No posts found

Write a review
Is it suitable for a joinery shop?

No. This is a hobby machine or for the tradesman that needs a portable planer.

Is it single or 3 phase?
Are there any special tips for planer & thicknessers?
