For the TKS 315 Table Saw
  • VAT
  • Delivery Costs
  • Returns

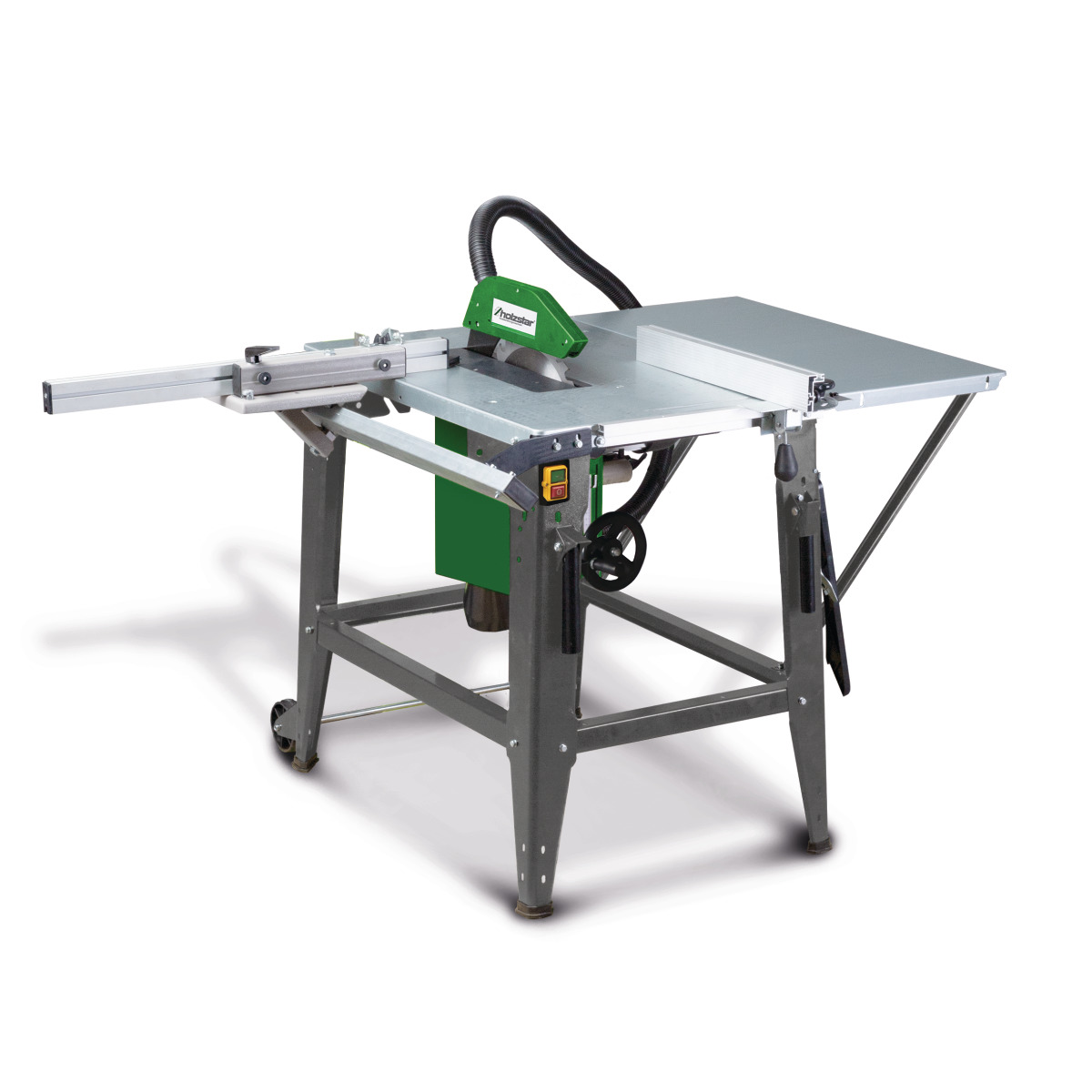

Holzstar TKS 316 E Table Saw

This 230 Volt table saw comes with a galvanised finish to prevent corrosion. The saw blade pivots between 0° and 45° without the use of tools. The saw blade height can be adjusted using the handwheel and scale. Includes a large aluminium rip fence with an eccentric quick release. This table saw can easily be transported thanks to the wheels and handles built into the chassis. Includes a 315mm Z24 carbide saw blade.


Electrical
Volts:
220-240 Volts
Phase:
Single
AC or DC Supply:
AC
Motor Type:
Induction
Hertz:
50 Hz
Watts (Input):
2200 Watts
Amps (Input):
9 Amps
Starting Amps Approx.
:
13 Amps
Horse Power (Input):
3 hp
RPM:
2800 rpm
Plug Fitted:
Yes
NVR Switch:
Yes
Saw Table
Saw Blade Diameter (mm):
315mm
Max Rip Width (mm):
290mm
Blade Bore (mm):
30mm
Blade Supplied:
Yes
Max. Cutting Height (mm):
83mm
Tilts to:
45 Degrees
Cut Depth at Max Tilt:
60mm
Mitre Gauge Included:
No
Scoring Blade:
No
General
Sliding Table
:
Yes
Max Sliding Table Cut (mm):
300mm
Sliding Table Width (mm)
:
300mm
Width w/Extensions & Sliding Table (mm):
1100mm
Table Width mm:
550mm
Table Depth mm:
800mm
Table Height mm:
850mm
Width with Extensions mm:
900mm
Dust Extraction Port mm:
100mm
Warranty (Mths)
:
12 Months
Registration Required:
No
Total Weight (Kgs):
53 Kgs

Holzstar TKS 316 E Table Saw Manual Open

Sort by:
2
Very disappointed with purchase, not the saw I thought it would be, assembly instructions not great, fence wont allow a secure rip beyond 260 mm so if you need to...
0 0
5
Delivery
Product
Commuinication
Very strong, sturdy table saw , and powerful enough to meet all my needs. Steady and accurate cutting , it's functionalityis up there with much more expensive models. Delighted...
0 0
Write a review
Are there any special tips for table saws?

Yes. there are four very important issues to remember. These tips will help you get long and satisfactory use of your machine. The first is that the table surface of the saw and any sliding carriage or extensions attached must be cleaned and degreased thoroughly before the first operation and then have a protective coat applied to the surface. These surfaces should offer little resistance to the movement of the wood passing over it. This will require regular maintenance and application over the life of the machine. The second is that there must be adequate dust collection at all times and that the blade tilting and raising mechanisms and other areas prone to dust and chip build-up must be blown off regularly. The third issue to be aware of is that during the early operation of your saw any drive belts must be inspected and re-tensioned as required. The final piece of advice we would offer is that using an appropriate sharp blade is more critical than having extra horsepower.
