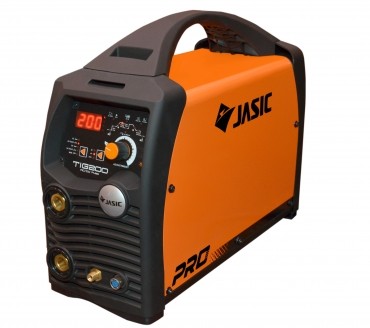

Jasic 200 Mini Digital AC/DC TIG Welder

Designed with weight and portability in mind this AC/DC Mini weighs in at just 9kg and is 435 x 160 x 340mm in size. With a super low amperage performance of 5 amps and a maximum of 200 amps, this is a hugely versatile welding machine. All Jasic welders and plasma cutters come standard with a 2-year return to base warranty, but if you register within one month of purchase you get a full 5 years.

It also has a program memory function for those jobs you need to repeat.

Included with this TIG welder:

Dual Gauge Argon Regulator
4.0m Air cooled TIG torch
3.0m Earth Lead and clamp
Gas Hose with Quick Connectors

Key Features

  • Digital Display
  • Program Memory Storage
  • Very Easy to Use
  • Peak Current Control
  • Pre and Post Flow Time
  • Slope Up / Down
  • Pulse Adjustments
    • Frequency
    • Pulse Duty
    • Arc Force
    • AC Cleaning Balance
  • Remote Foot Pedal Socket
  • AC - Can weld aluminium and aluminium based alloys
  • DC - Can weld carbon steel, stainless steel and copper
  • Smooth arc and stable welding performance
  • IGBT Inverter - Suitable for working on a generator

Special Order: Typically 3 - 5 business day delivery.

Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50-60 Hz
Generator Friendly
Plug Fitted
No
TIG Welder
TIG DC Current Range (A)
5 -200 Amps
TIG AC Current Range (A)
5 - 200
TIG Start
HF
TIG Duty Cycle
25% at 200A @ 40°C
TIG No-Load Voltage (V)
56 Volts
Pre Gas
Yes
Post Gas
Yes
Slope Up
Yes
TIG Efficiency (%)
85%
TIG Power Factor
0.7
TIG Torch Included
TIG Torch Included
ARC Welder
ARC DC Current Range (A)
10-160 Amps
Max Recommended Electrode
3.2 mm
ARC Power Steps
Infinitely Variable
ARC Duty Cycle
30% at 160A @40 °C
ARC No-Load Voltage
56Volts
ARC Efficiency (%)
85%
ARC Power Factor
0.70
ARC Electrode Holder
Electrode Holder not Included
General
Protection/Insulation Class
IP 21S/F
Earth Lead
Yes, included.
Regulator
Yes, Included
Warranty w/o Registration
24 Months
Warranty w/ Registration
60 Months
Total Weight (Kgs)
11.5 Kgs
