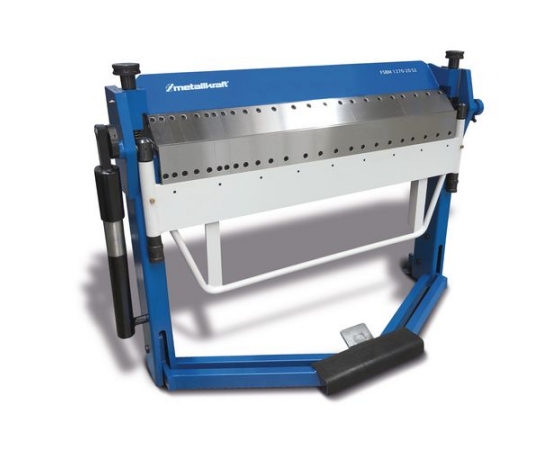

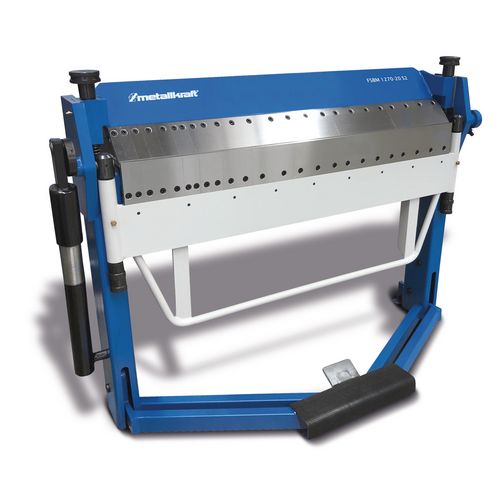

Metallkraft FBSM 1270-20 Sheet Metal Folder

  • Max. working width 1270 mm
  • Max. bending angle 135 °
  • Segmentation 25-30-35-40-45-50-75-100-150-200-250-270 mm
  • Bending capacity mild steel
  • 235N/mm² 2.0 mm
  • 400N/mm² 2.0 m
  • Aluminum 2.4 mm
  • The workpiece is clamped by pressing on the foot pedal.
  • The powerful auxiliary cylinder facilitates bending
  • 25 mm throat height
  • Self-lubricating bearings
  • The clamping pressure of the upper beam can be easily adjusted via non-slip thumb screws
  • Adjustment of material thickness using knurled screw
  • Adjustable stop for bending angle
  • Length approx. 1600 mm
  • Width/depth approx. 800 mm
  • Height approx. 1130 mm
  • Weight approx. 370 kg

Special Order: Typically 7 - 10 business day delivery.

Sheet Metal Folder
Max Folding Angle
135 °
Maximum Folding Width
1270 mm
Maximum Sheet Thickness (400N/mm²)
2.0 mm
General
Total Weight (Kgs)
370 Kgs

Metallkraft FSBM 1270 HS2 Bender Manual Open
