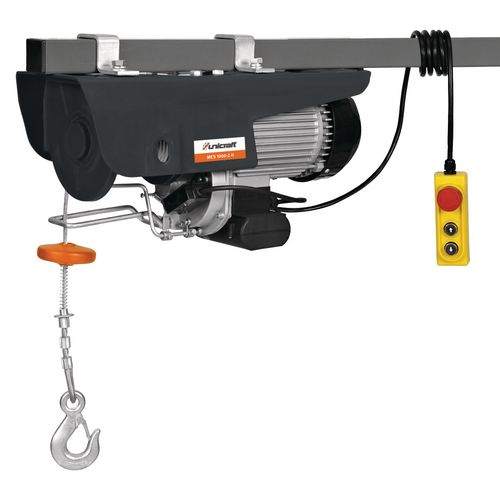

Unicraft MES 1000-2 H Electric Hoist

This electric hoist, with significant lifting power, can lift 500 kg to 12m and 999kg to 6m. Includes a deflection pulley with a load hook and a dead-man switch for safe work. The operation switch has an IP54 protection rating. Fitted with a limit switch to shut off the motor once it reaches to highest or lowest position. Supplied with two 60 x 60mm attachment brackets and bolts.

  • Lifting Capacity
  • w/o deflection pulley: 500kg - 12m
  • with deflection pulley: 999kg - 6m
  • Supply: 230V
  • Max Lifting Speed: 8m/min without the deflection pulley and 4m/min with,
  • Cable Diameter: 6mm
  • Weight: 33kg

Note: Beam rollers are not required for fixed installation but if you intend to make a roller system then two beam rollers will be required as the hoist needs to be kept level during operation for the wire rope to feed back on to the drum correctly, ensuring optimal lifting power.

Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50 Hz
Watts (Input)
1600 Watts
Plug Fitted
Yes
Emergency Stop
Yes
Electric Hoist
Load Capacity (Ton)
1 Ton
Lifting Height (m)
6/12m
Lifting Speed (m/min)
4/8 m/min
General
Warranty
12 Mths
Total Weight (Kgs)
33 Kgs
Find similar

MES 999 Hoist Manual Open

Sort by:
4.5
Delivery
Product
I was surprised when it arrived the following day. It is a hefty well-built hoist. It cannot be hung from a neam dolly or installed even a little off level...
0 0
4
Powerful winch but could do with a longer cable for the controller
0 0
Write a review
Is there a beam trolley for this winch?

Not specifically. You could however use two 1 ton beam trolleys with a bar attached across the two of them. Using one would not be possible as the hoist needs to stay level whilst in operation.
