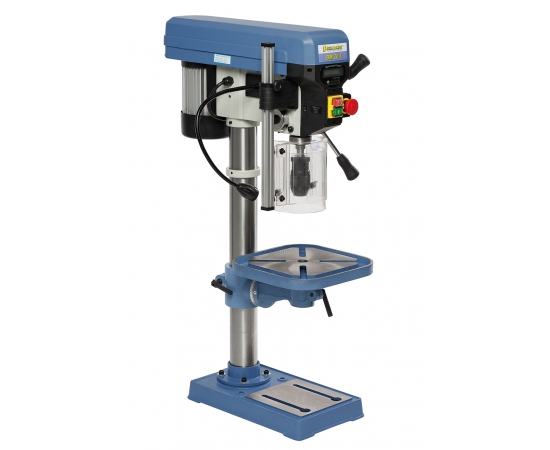

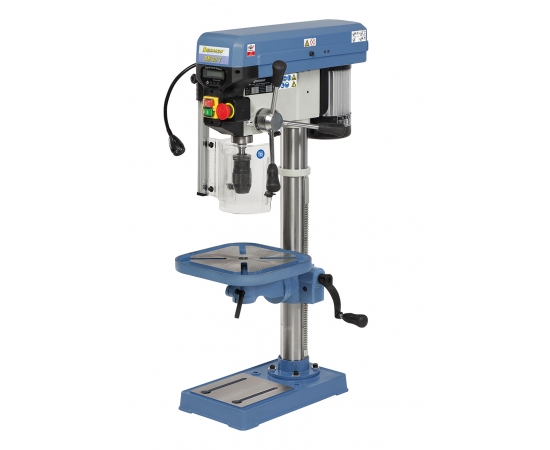

Bernardo BM 20 T Bench Pillar Drill - 230 V

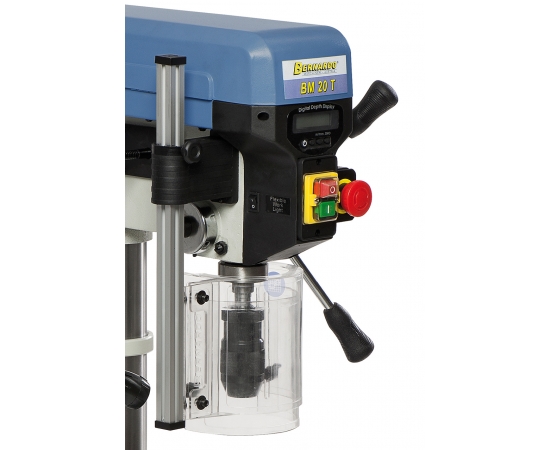

  • Digital display for spindle stroke
  • LED-lamp work lamp - Flexible and adjustable

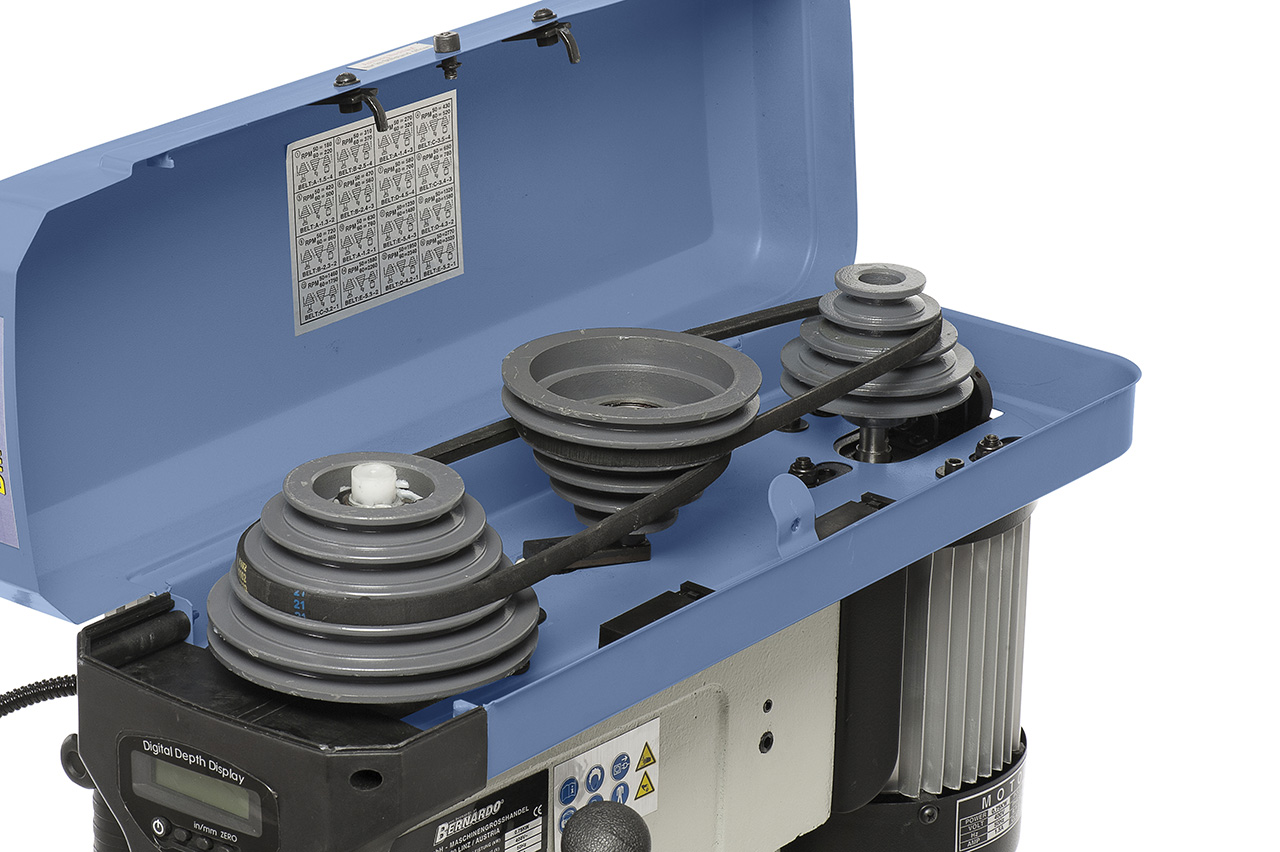

  • Grey cast iron pulleys ensure smooth running
  • High-quality ball bearings ensure high spindle concentricity
  • Large drill table features diagonal T-slots
  • The drill table tilts (±45°), gear rack allows height adjustment
  • High performance aluminium motor in accordance with the IP 54 standard
  • Complete with high-quality keyless drill chuck
  • Polished machine base features T-slots
  • Clearly arranged handles ensure high comfort when working

Specifications

  • Drilling capacity in steel: 20 mm
  • Drill chuck: 1 - 16 mm / B 18
  • Morse taper: MT 2
  • Spindle speed: (16) 220 - 2840 rpm
  • Distance spindle to column: 160 mm
  • Drilling table tiltable: -45° to +45°
  • Distance spindle to table max: 440 mm
  • Distance spindle to base: 630 mm
  • Spindle stroke: 80 mm
  • Column diameter: 72 mm
  • Table size / T-slot size: 285 x 285 mm / 16 mm
  • Working surface of base: 200 x 190 mm
  • Machine dimension (W x D x H): 400 x 590 x 980 mm
  • Weight approx:45 kg

Included Accessories

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Digital spindle stroke indication
  • LED machine light
  • T-slot nuts
  • Height adjustable protective cover
Electrical
Volts
220 - 240 Volts
Phase
Single
Motor Type
DC
Watts (Input)
800 Watts
Horse Power (Input)
1 hp
Plug Fitted
Yes
NVR Switch
Yes
Emergency Stop
Yes
General
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
45 Kgs
