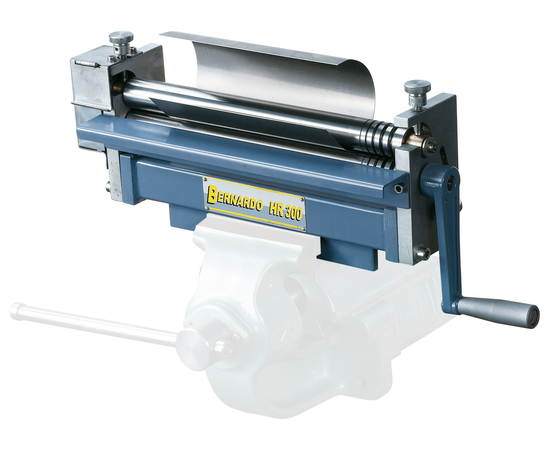

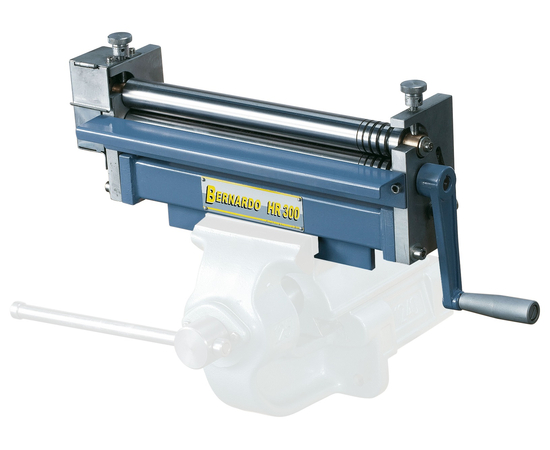

Bernardo HR300 Sheet Metal Roller

  • For bending and rolling in pipes, wires and sheets
  • Upper and lower roller equipped as standard with wire insert grooves
  • Tiltable top roller for easy removal of the sheets
  • Suitable for clamping on the bench vise

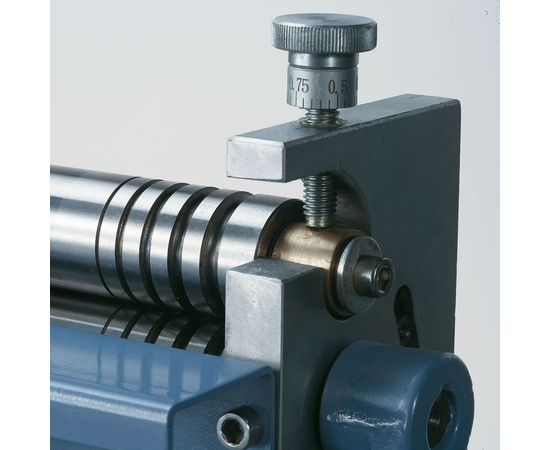

  • Adjustable top roller with nonius for plate thickness and adjustable rear roller for the sheet diameter
  • Ground rollers made of high quality steel.

Specifications:

Working length: 300 mm
Roll diameter: 30 mm
Bending diameter min: 35 mm
Sheet steel max. S235JR: 1.0 mm
Aluminium / Copper: 2.0 mm
Brass: 1.0 mm
Tinplate / Gold / Silver: 2.0 mm
Small width: 3 mm
Round material: 1 – 5 mm
Machine dimension (W x D x H): 500 x 140 x 230 mm
Weight approx: 10 kg

Sheet Metal Folder
Max Opening Width
300mm
Maximum Sheet Thickness (400N/mm²)
1 mm
Roller Diameter
30 mm
General
Warranty
12 Mths
Registration Required
No
Total Weight (Kgs)
10 Kgs
