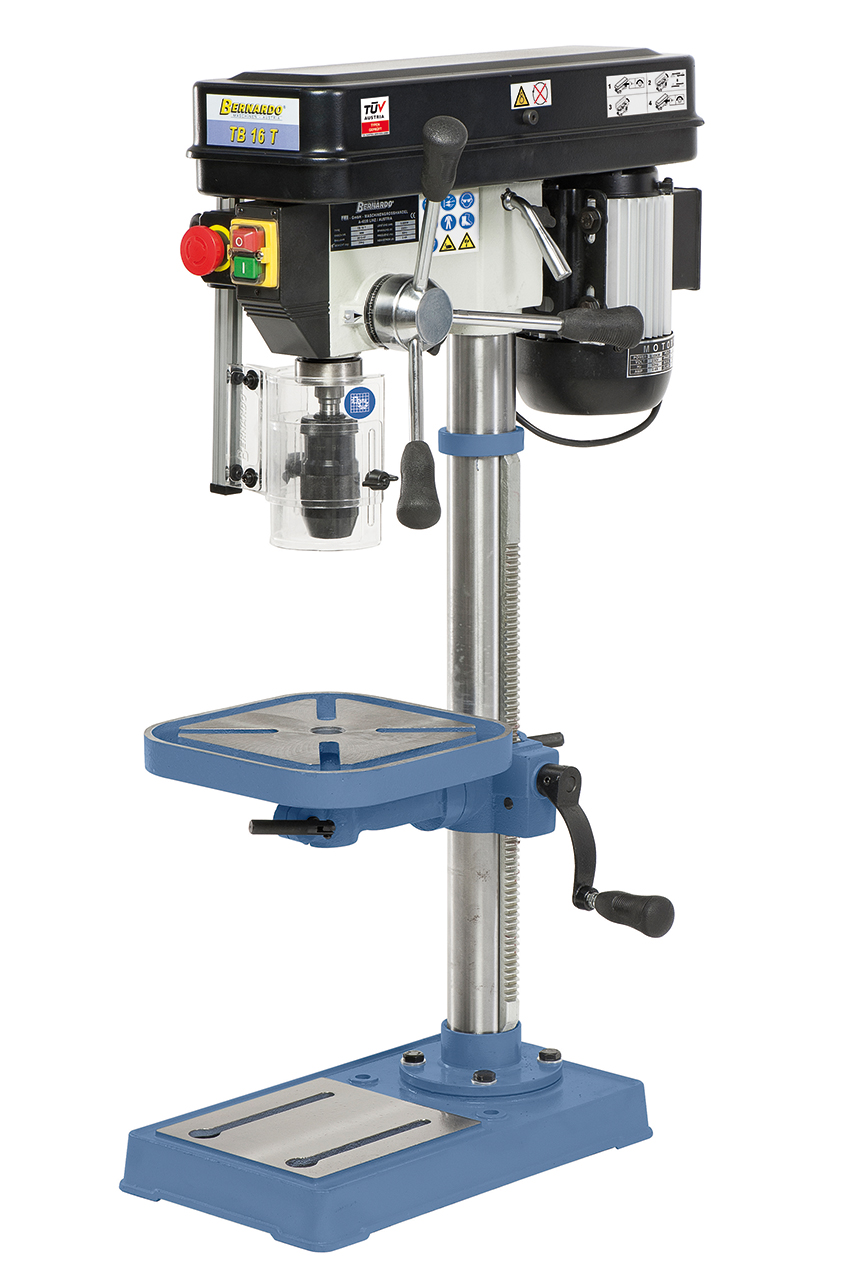

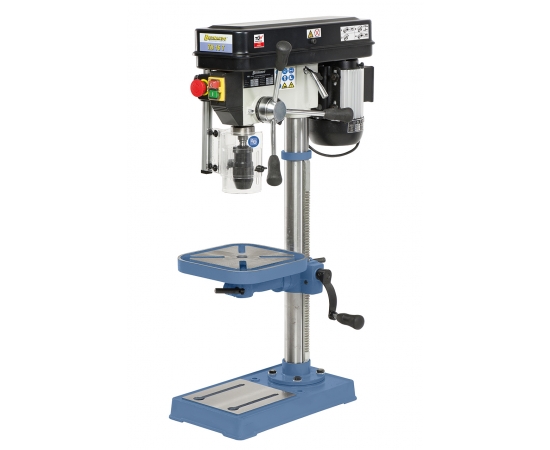

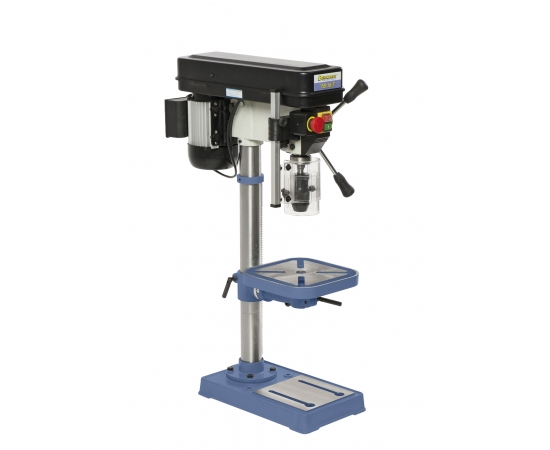

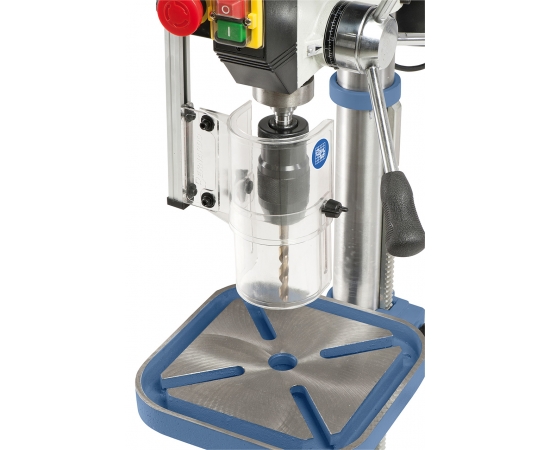

Bernardo TB 16 T Bench Pillar Drill - 230 V
- Quality ball bearings ensure high concentricity of the quill
- Large dimensioned drill table with diagonal T-slots

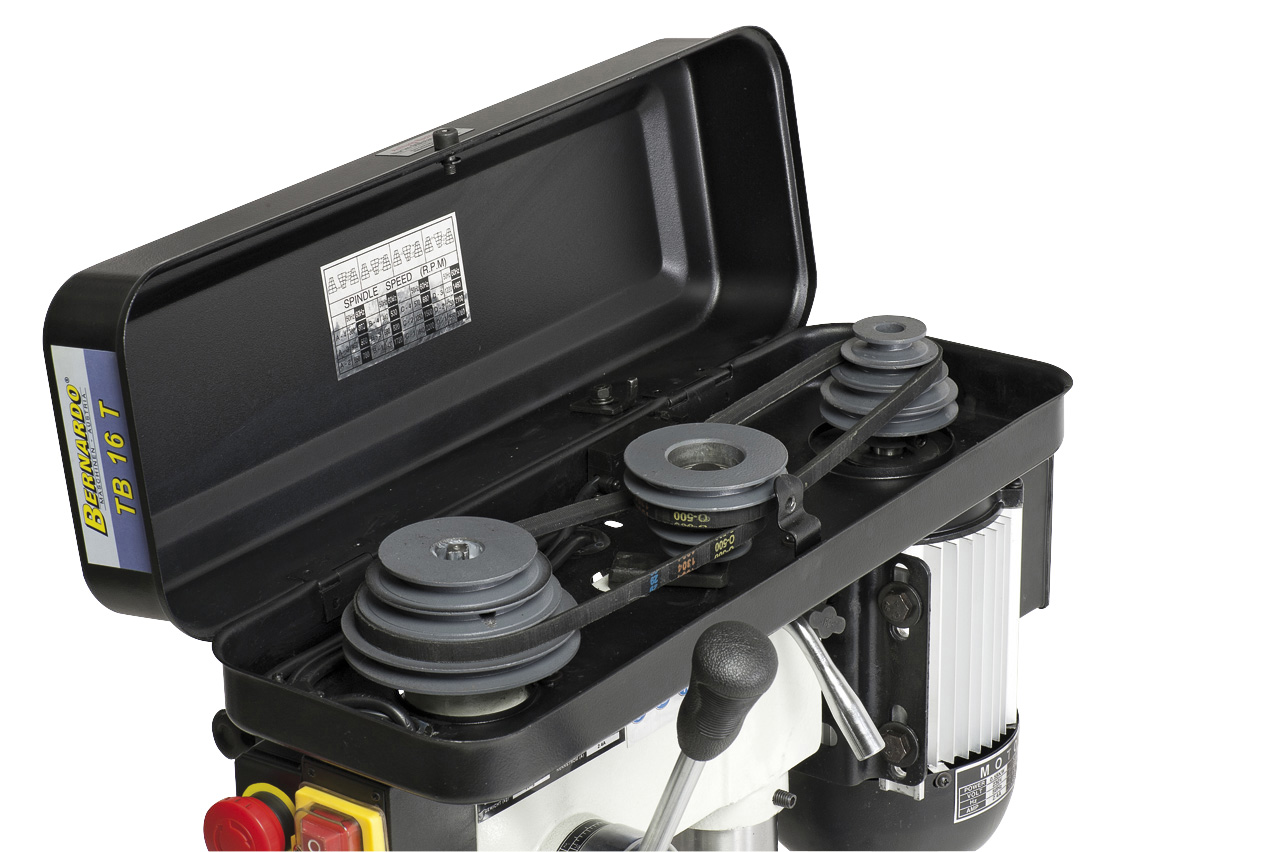

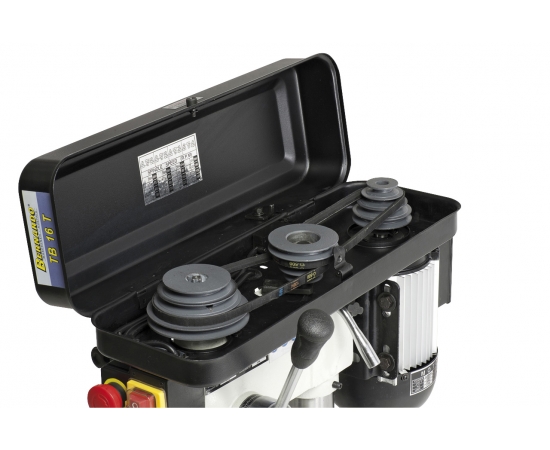

- Extremely smooth running thanks to balanced drive pulleys and quality belts

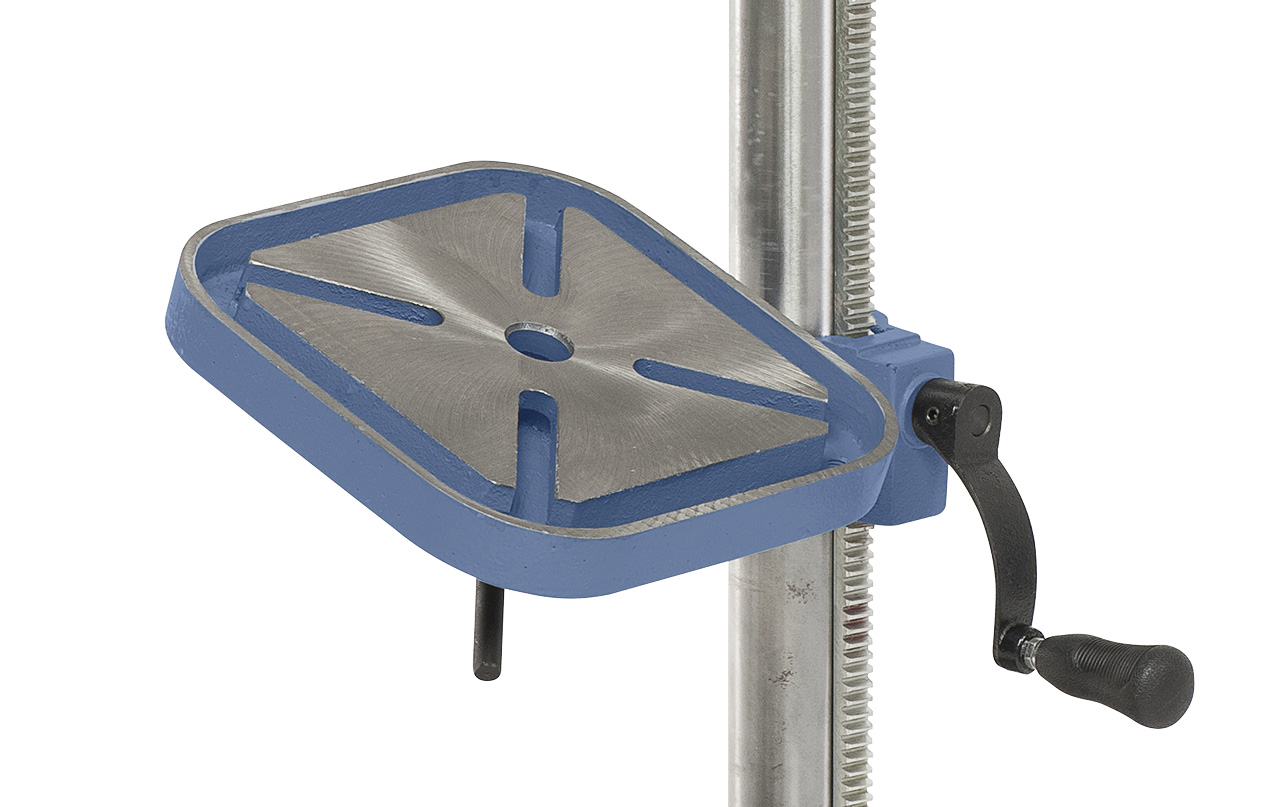

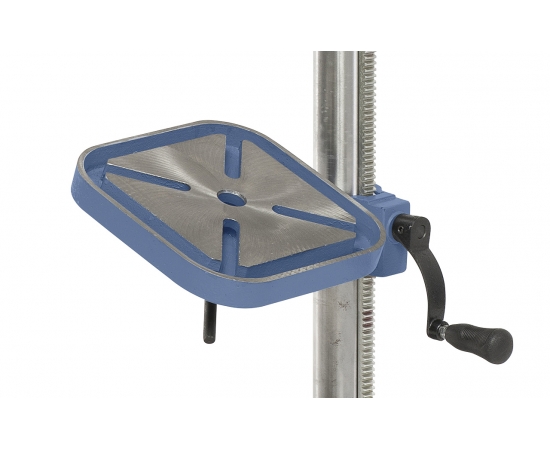

- Drilling table can be swiveled (±45°), height adjustment via toothed rack
- T-slots in the base plate as standard
- Powerful and high-torque aluminum motor according to IP 54
- Precision keyless chuck included
- Machined base plate for clamping higher workpieces
- Ergonomic handles for comfortable working
- 220 - 240 Volts | 800 Watts
- Drilling capacity max: 16 mm
- Drill chuck: 1 - 16 mm / B 16:
- Morse taper: MT 2
- Spindle speeds: (12) 300 - 2550 rpm
- Distance spindle to column: 155 mm
- Table tiltable: -45° to 45°
- Distance spindle to table max: 445 mm
- Distance spindle to base: 600 mm
- Spindle stroke: 65 mm
- Column diameter: 58 mm
- Table size / T-slot size: 245 x 245 mm / 16 mm
- Working surface of base: 85 x 200 mm
- Machine dimension (W x D x H): 400 x 570 x 920 mm
- Weight approx: 36 kg
Standard Accessories
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 2 / B 16

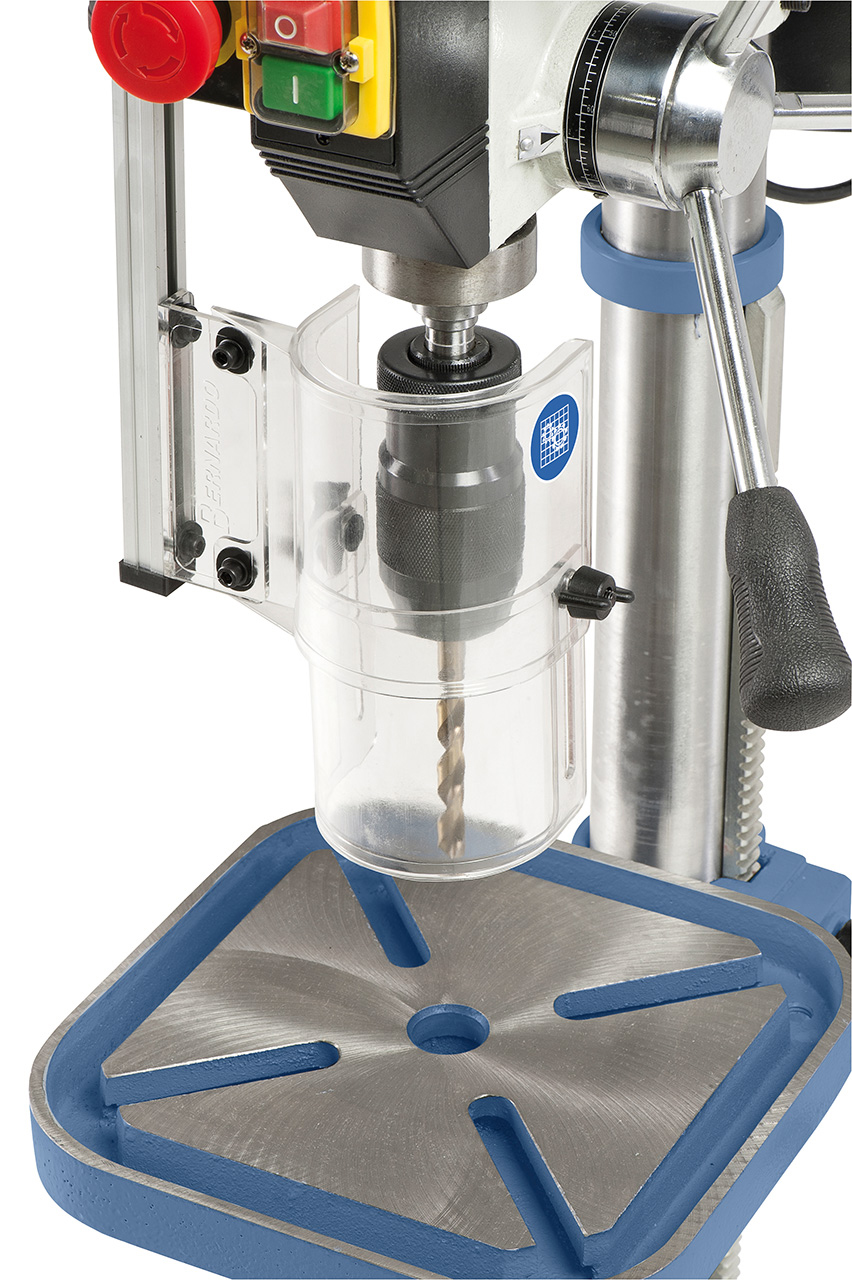

- Height adjustable protective cover
- Separate emergency stop switch
- T-slot nuts
