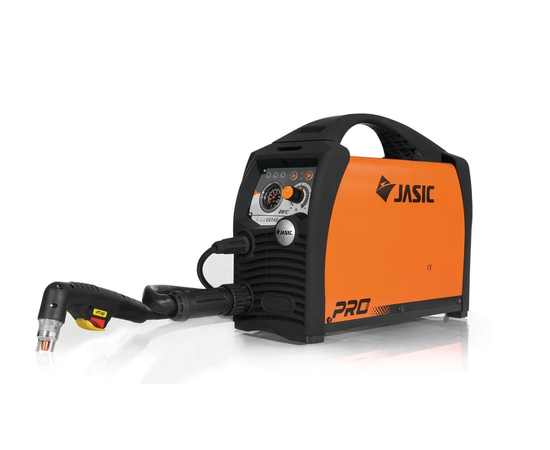

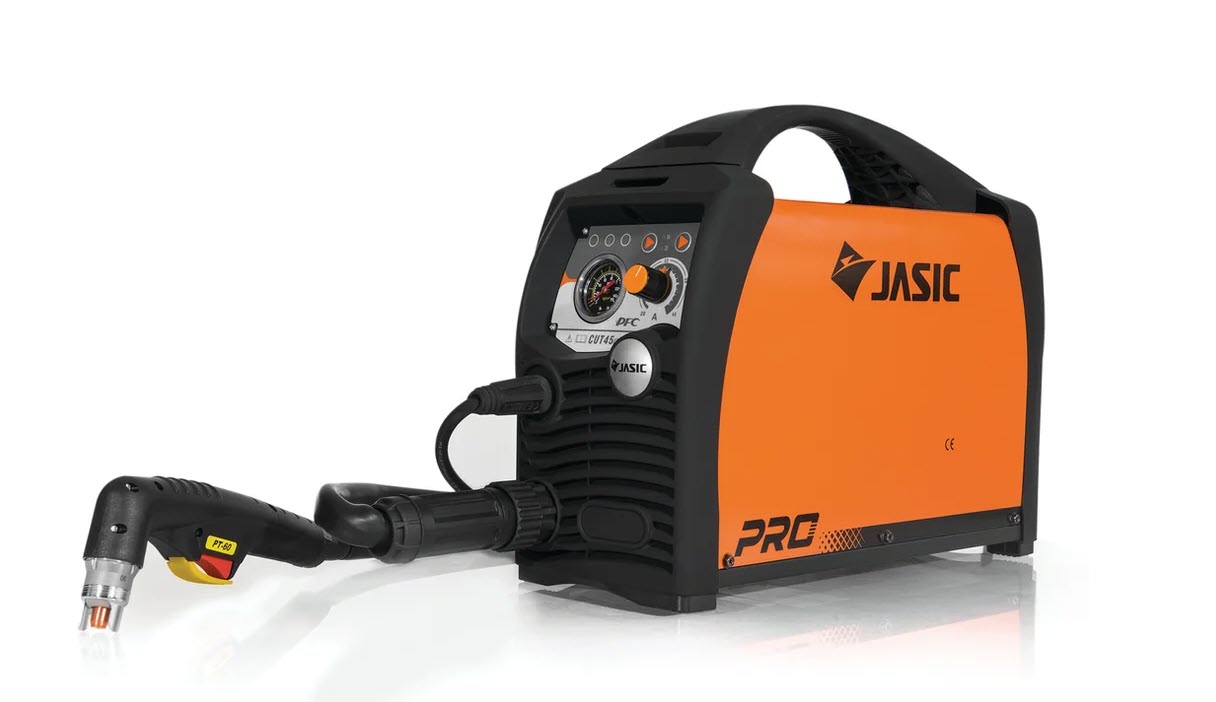

JASIC Cut 45 PFC Plasma Cutter

The Jasic Cut 45 PFC is equipped with PWM technology and high powered IGBT components and is the perfect solution for cutting low carbon steel, stainless steel and aluminum.

This user-friendly and highly portable inverter offers smooth, fast and precise cutting on material up to 15mm and a maximum of 20mm, where a severance cut is required.

Another outstanding feature of this high specification model is PFC (Power Factor Correction) which provides substantial energy saving benefits for the user.

  • Pulse-Width Modulation Controlled
  • High Powered IGBT Components
  • Intelligent Digital Control Technology
  • Soft Touch LED Control Panel
  • Integrated Air Gauge with Automatic Preset Pressure
  • PFC - Energy Saving Inverter
  • Cuts 15mm clean and 20mm severance
  • Variable Cutting Control
  • 2T - 4T Operation
  • Air Check & Torch Protection Warning LEDs
  • Mesh Cutting Mode
  • Simple Operation
  • Lightweight, portable modern design - Only 9.2 Kg

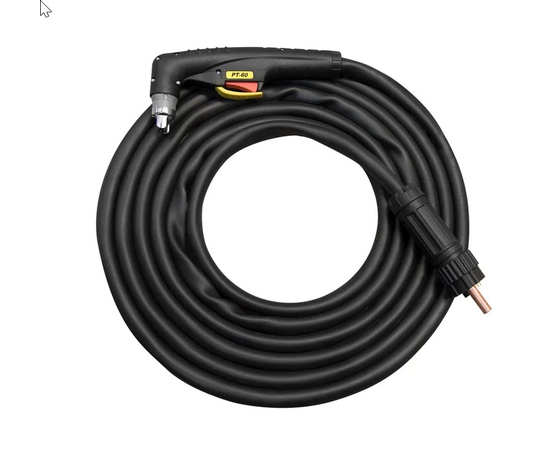

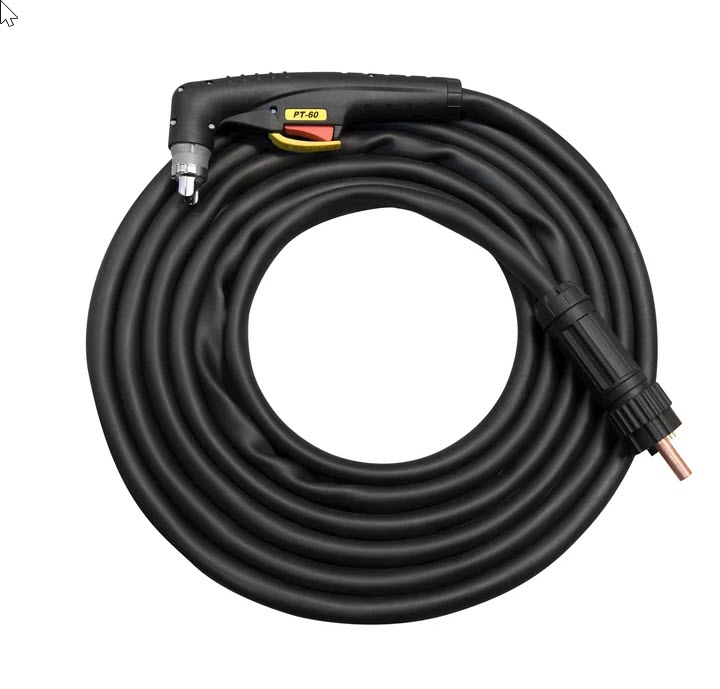

  • Includes:PT60 Plasma 6.0m Cutting Torch & Earth Return Lead
  • CE Approval
  • Arc ignition without HF



Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50-60 Hz
Plug Fitted
No
Plasma Cutter Specifications -
Input Amperage (A)
23
Maximum Cutting Thickness
20
Supply Fuse (A)
32
Required Air Flow (l/min)
170
Plasma No-Load Voltage (V)
280
Cutting Current (A)
20 - 45
Rated Output Voltage (V)
98
Plasma Rated Duty Cycle
45A @ 35%
Plasma Efficiency (%)
85
Plasma Power Factor
0.99
Insulation Class
F
Overall Size (L x W x H mm)
439 x 165 x 328
General
Warranty w/o Registration
24 Months
Warranty w/ Registration
60 Months
Total Weight (Kgs)
9.2 Kgs
