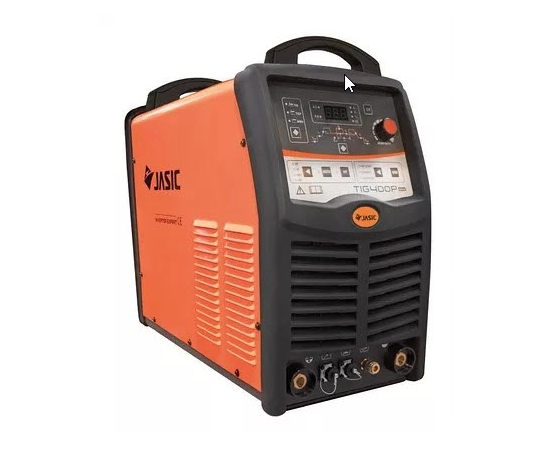

Jasic Pro TIG 400P

The Jasic TIG 400 Pulse inverter is equipped with industrial-grade IGBT components and an MCU chip for high accuracy and performance.

This technologically advanced inverter with a digital panel allows for software upgrades and provides 8 channel automatic storage of the welding parameters.

  • Industrial Grade IGBT Inverter Technology
  • DC Pulse TIG/MMA with VRD function
  • MCU chip for high accuracy and consistency
  • HF or Lift arc ignition, 2T/4T, spot-time
  • Up/down slope, pre/post flow, crater/initial/weld current
  • Digital panel with interface for easy software upgrades
  • Gas test function in DC TIG mode
  • Modular design with trolley and water cooler included
  • Automatic 8 channel storage of welding parameters
  • On-demand fan and optional water cooling
  • Generator friendly

Special Order: Typically 5 - 7 business day delivery.

Electrical
Volts
400 Volts
Phase
3 Phase
Hertz
50 Hz
Generator Friendly
Plug Fitted
No
TIG Welder
TIG DC Current Range (A)
25 - 400 Amps
TIG AC Current Range (A)
25 - 400
TIG Start
HF
TIG Duty Cycle
50% at 400A @ 40°C
TIG No-Load Voltage (V)
68 Volts
Pre Gas
Yes
Post Gas
Yes
Slope Up
Yes
TIG Efficiency (%)
85%
TIG Power Factor
0.96
TIG Torch Included
TIG Torch Included
ARC Welder
ARC DC Current Range (A)
30-400 Amps
Max Recommended Electrode
6.0 mm
ARC Power Steps
Infinitely Variable
ARC Duty Cycle
30% at 400A @ 40 °C
ARC No-Load Voltage
68Volts
ARC Efficiency (%)
85%
ARC Power Factor
0.96
ARC Electrode Holder
Electrode Holder not Included
General
Protection/Insulation Class
IP 21S/F
Earth Lead
Yes, included.
Regulator
Yes, Included
Warranty w/o Registration
24 Months
Warranty w/ Registration
60 Months
Total Weight (Kgs)
32 Kgs
