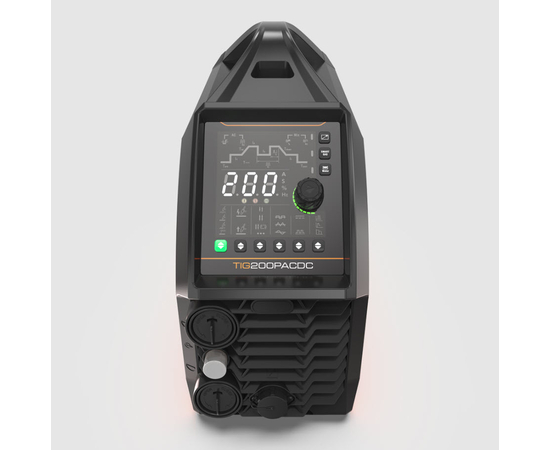

Jasic TIG 200A AC/DC Digital Pulse Inverter TIG Welder

The Jasic 200P Pulse AC/DC is a technologically advanced single phase inverter power source suitable for medium production work. The innovative and user friendly digital control panel allows full control of welding parameters.

The excellent technical characteristics of the 200 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.

  • TIG Pulse AC/DC with digital control
  • 43 KHz inverter frequency and strong shock resistance IGBT
  • Program memory storage
  • Peak current control, 2T/4T
  • Pre-post flow time, up/down slope
  • Pulse adjustment
  • Pulse frequency, pulse duty, arc force, cleaning width
  • Remote control interface
  • AC function for aluminium and aluminium alloys
  • DC TIG function for carbon steel, copper and non-ferrous metals
  • Smooth arc and stable welding performance
  • Heavy duty 35/50 dinse sockets
  • MMA remote capability
  • VRD Function
  • AVR generator friendly
  • Includes TIG torch, earth lead and gas regulator
Electrical
Volts
220 - 240 Volts
Phase
Single
Hertz
50 Hz
Generator Friendly
Plug Fitted
No
TIG Welder
TIG DC Current Range (A)
5-200 Amps
TIG AC Current Range (A)
5-200
TIG Start
HF
TIG Duty Cycle
25% @ 200A @ 40°C
TIG No-Load Voltage (V)
65 Volts
Pre Gas
Yes
Post Gas
Yes
Slope Up
Yes
TIG Efficiency (%)
85%
TIG Power Factor
0.7
TIG Torch Included
TIG Torch Included
ARC Welder
ARC DC Current Range (A)
10 - 160 Amps
Max Recommended Electrode
3.2 mm
ARC Power Steps
Infinitely Variable
ARC Duty Cycle
30% at 160A @40 °C
ARC No-Load Voltage
65Volts
ARC Efficiency (%)
85%
ARC Power Factor
0.7
ARC Electrode Holder
Electrode Holder not Included
General
Protection/Insulation Class
IP 21S/B
Earth Lead
Yes, included.
Regulator
Yes, Included
Warranty w/o Registration
24 Months
Warranty w/ Registration
60 Months
Total Weight (Kgs)
22.0 Kgs
